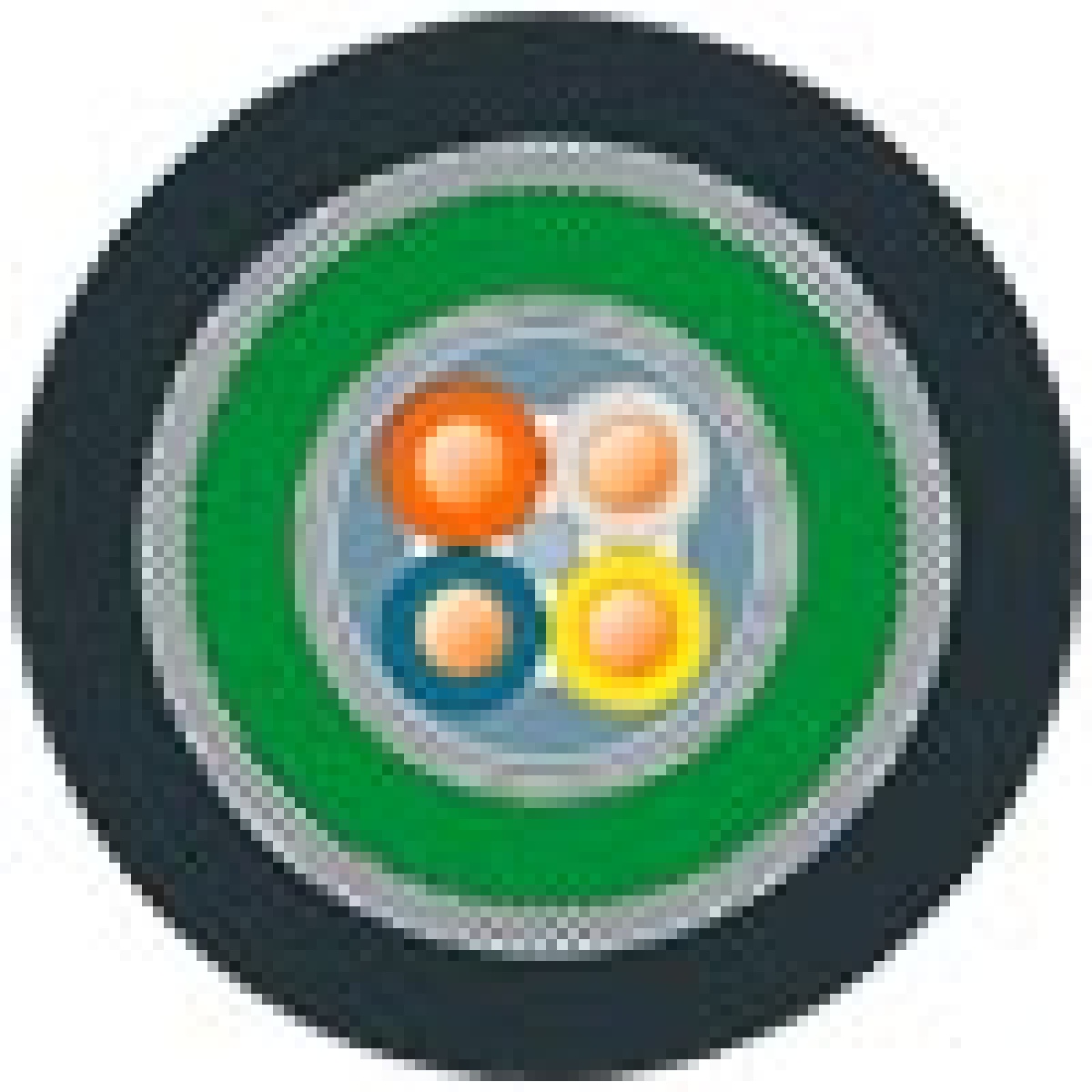

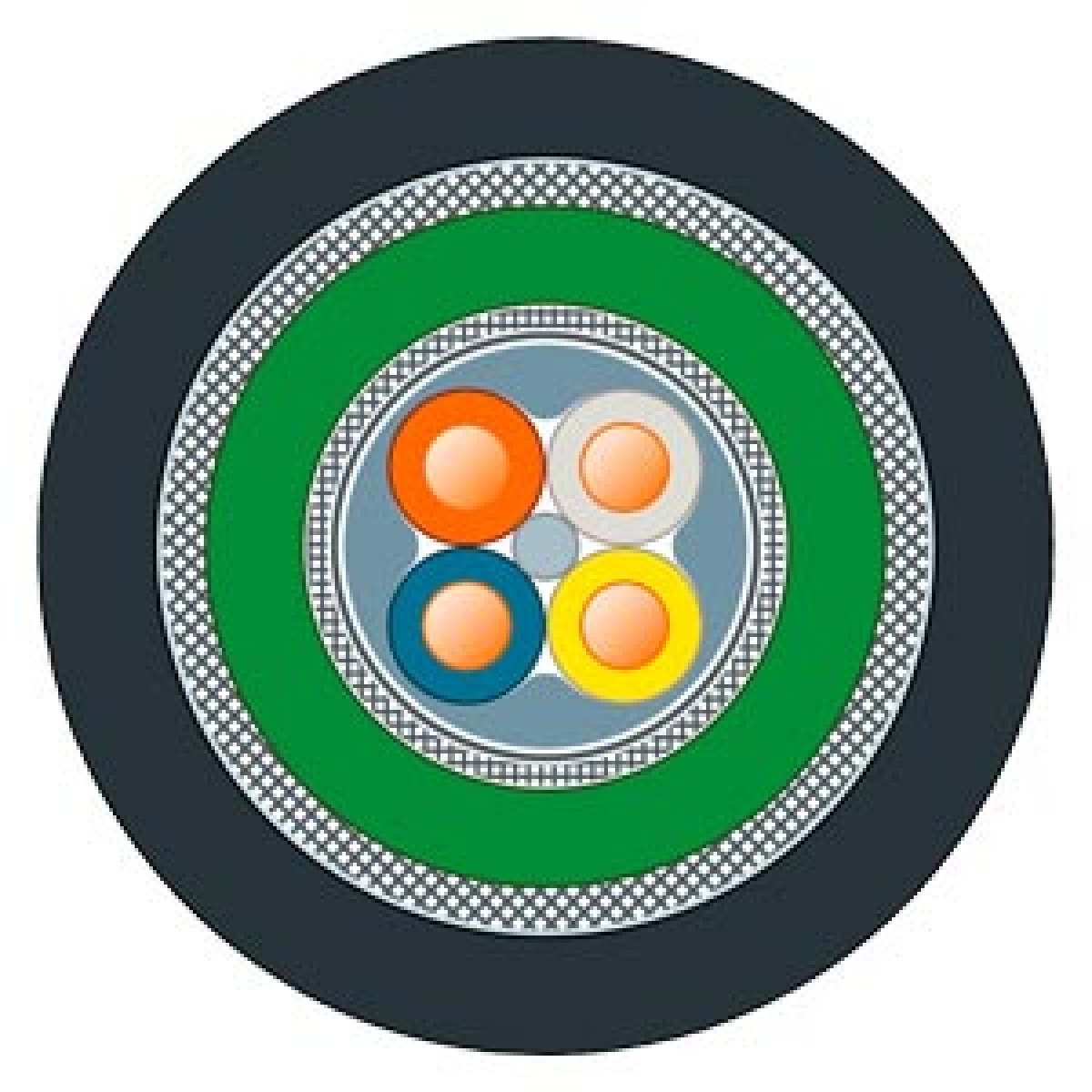

IE TP Robust buried cable2 x without2x2Cat5ePErobust
Data and Communication Cable (Copper)
IE TP Robust buried cable2 x without2x2Cat5ePErobust
Manufacturer Ref:
6XV18712N
Nortécnica Ref:
EAN:
4019169857420
Description
Technical Information
Attributes
EF000024
-
Nominal cross section conductor
-
Material core insulation
Other
Core identification
Colour
Weight
-
Flame retardant
EV004175
Circuit integrity
-
Stranding element
Quad
Colour outer sheath
Black
Category
5E
Diameter conductor
0.64
Conductor material
-
Screen over stranding element
None
Screen over stranding
Foil braiding
Material outer sheath
Polyvinyl chloride PVC
Conductor category
-
Armouringreinforcement
-
Permitted cable outer temperature during assemblinghandling
-30
Permitted cable outer temperature after assembling without vibration
-40
Number of stranding elements
2
Protective sheath
-
Number of cores
4
Suitable for underground installation
Yes
Halogen free according to EN IEC 60754-2
-
EF003794
-
Low smoke according to EN IEC 61034-2
-
Stranding
Bundle
Outer diameter approximate
9.4
EF008027
No
NVP value
65
EF009769
-
Oil resistant according to EN IEC 60811-404
-
EF009842
-
Conductor surface
Bare
Longitudinal water blocking cable
-
Radial water blocking cable
-
Reaction-to-fire according to EN 13501-6 Class
Fca
Reaction-to-fire according to EN 13501-6 Smoke production
-
Reaction-to-fire according to EN 13501-6 Flaming dropletsparticles
-
Reaction-to-fire according to EN 13501-6 Acidity
-
AWG size
-
Min. permitted bending radius, moving application with forced guidance
141
Min. permitted bending radius, moving applicationfree movement
141
Min. permitted bending radius, stationary applicationpermanent installation
141
Specification core insulation
-
Specification material outer sheath
Other
Material armouring
-
Cable geometry
-
Core identification according to HD 308 S2
-
Suitable as telephone cable
-
Suitable as computer data cable
-
Suitable as signalling cable
-
Certified for shipboard application
-
Segregation class according to EN 50174-2
-
Approved type of underground installation
-
Compatible with Grade2TV according to XP-C 90-483
-
Compatible with Grade3TV according to XP-C 90-483
-
Brands
Siemens AG
