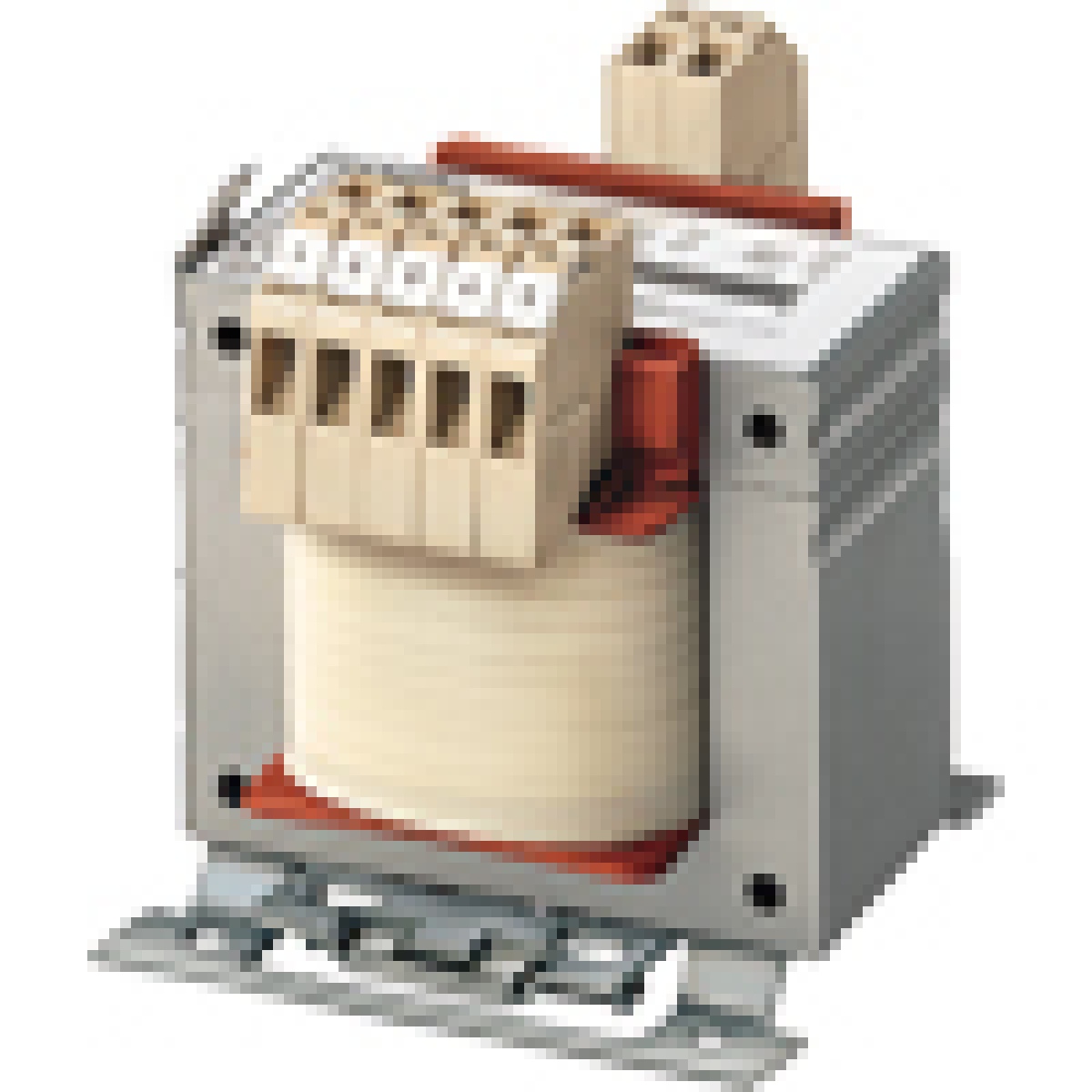

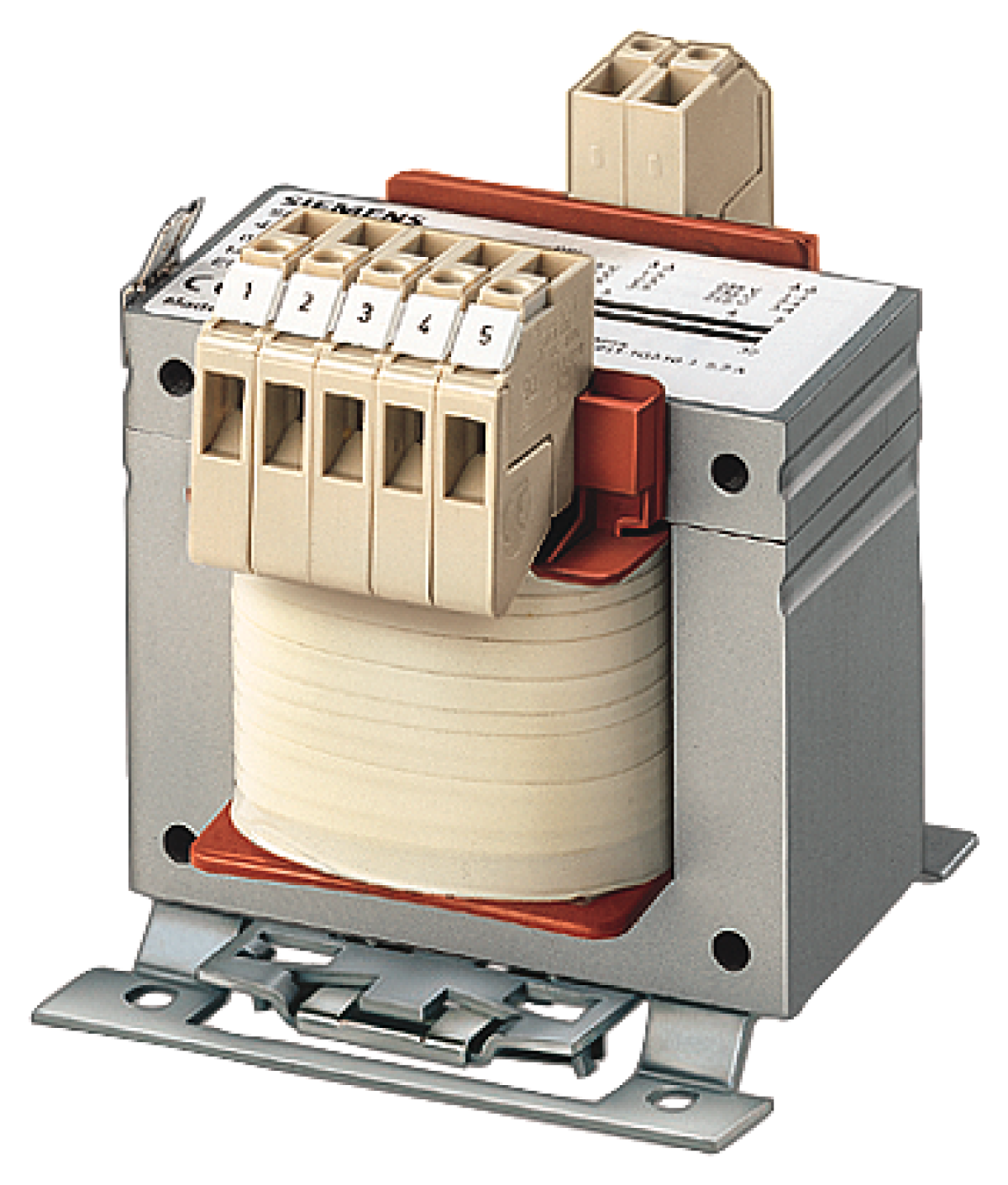

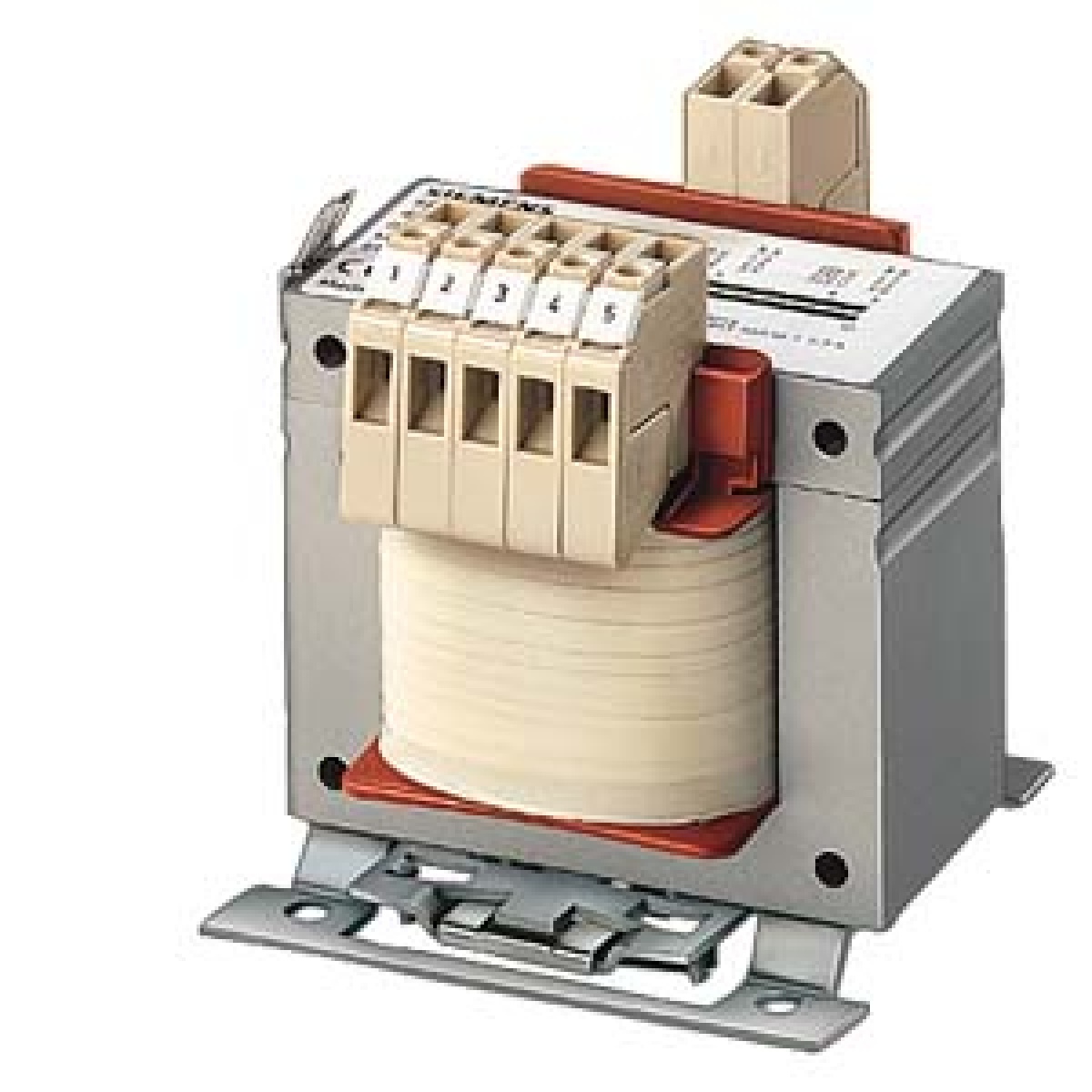

Transformer 1ph PNPNkVA 0315112 Upri550208 V
Isolation Transformers
Transformer 1ph PNPNkVA 0315112 Upri550208 V
Manufacturer Ref:
4AM43428DN000EB0
Nortécnica Ref:
EAN:
4001869909325
Description
Technical Information
Attributes
Width
107
Height
111
Depth
120
Conductor material
Other
Wiring system
-
Degree of protection IP
IP00
Primary voltage 1
550
Primary voltage 2
525
Primary voltage 3
500
Built as energy saving transformer
No
Rated power
315
Built as safety transformer
No
Built as isolating transformer
No
Type of insulation material according to IEC 85
B
Short-circuit-proof
No
Primary voltage 10
230
Primary voltage 4
480
Primary voltage 5
460
Primary voltage 6
440
Primary voltage 7
415
Primary voltage 8
400
Primary voltage 9
380
Relative short circuit voltage
6.5
Secondary voltage 1
24
Secondary voltage 10
-
Secondary voltage 2
-
Secondary voltage 3
-
Secondary voltage 4
-
Secondary voltage 5
-
Secondary voltage 6
-
Secondary voltage 7
-
Secondary voltage 8
-
Secondary voltage 9
-
Degree of protection NEMA
-
Brands
Siemens AG
