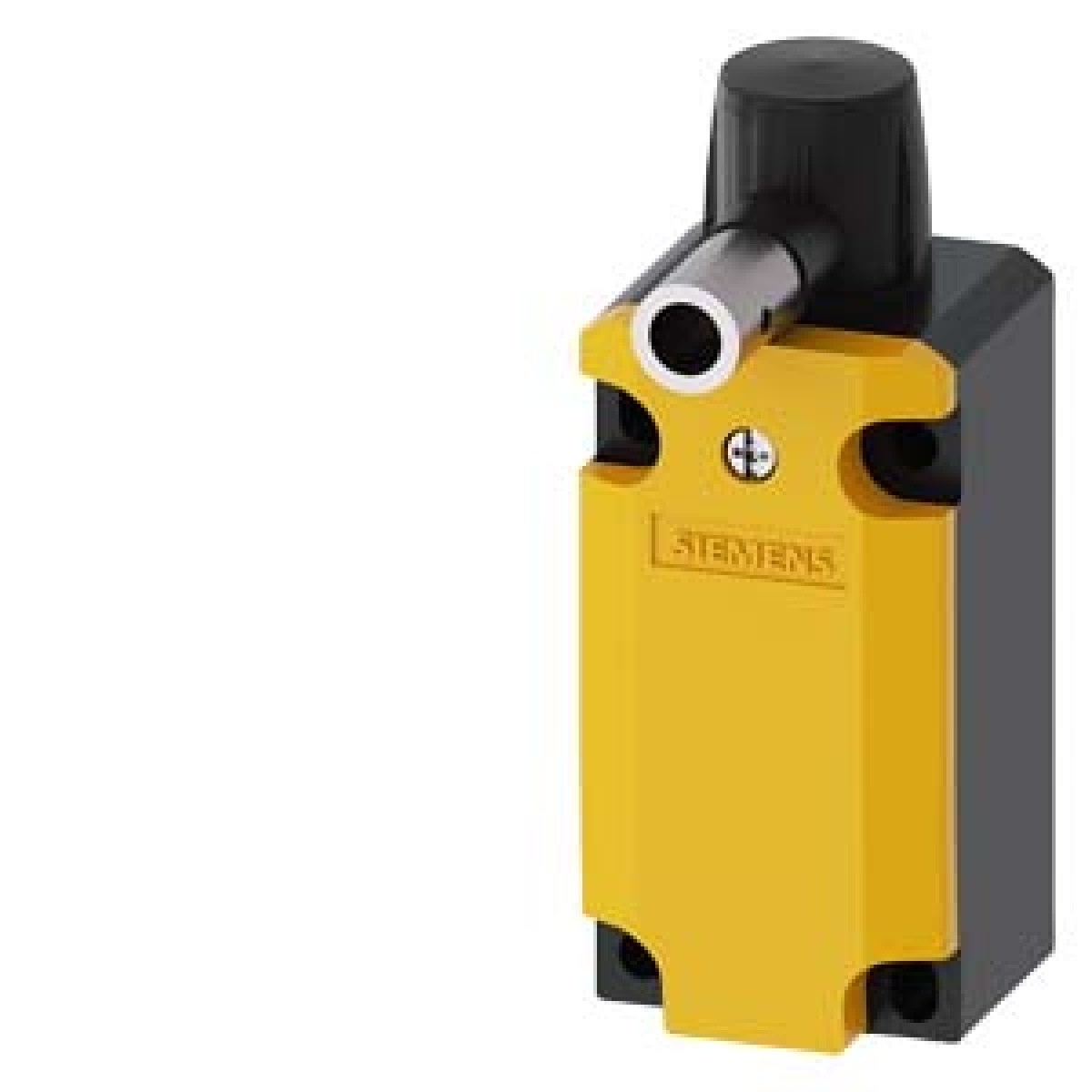

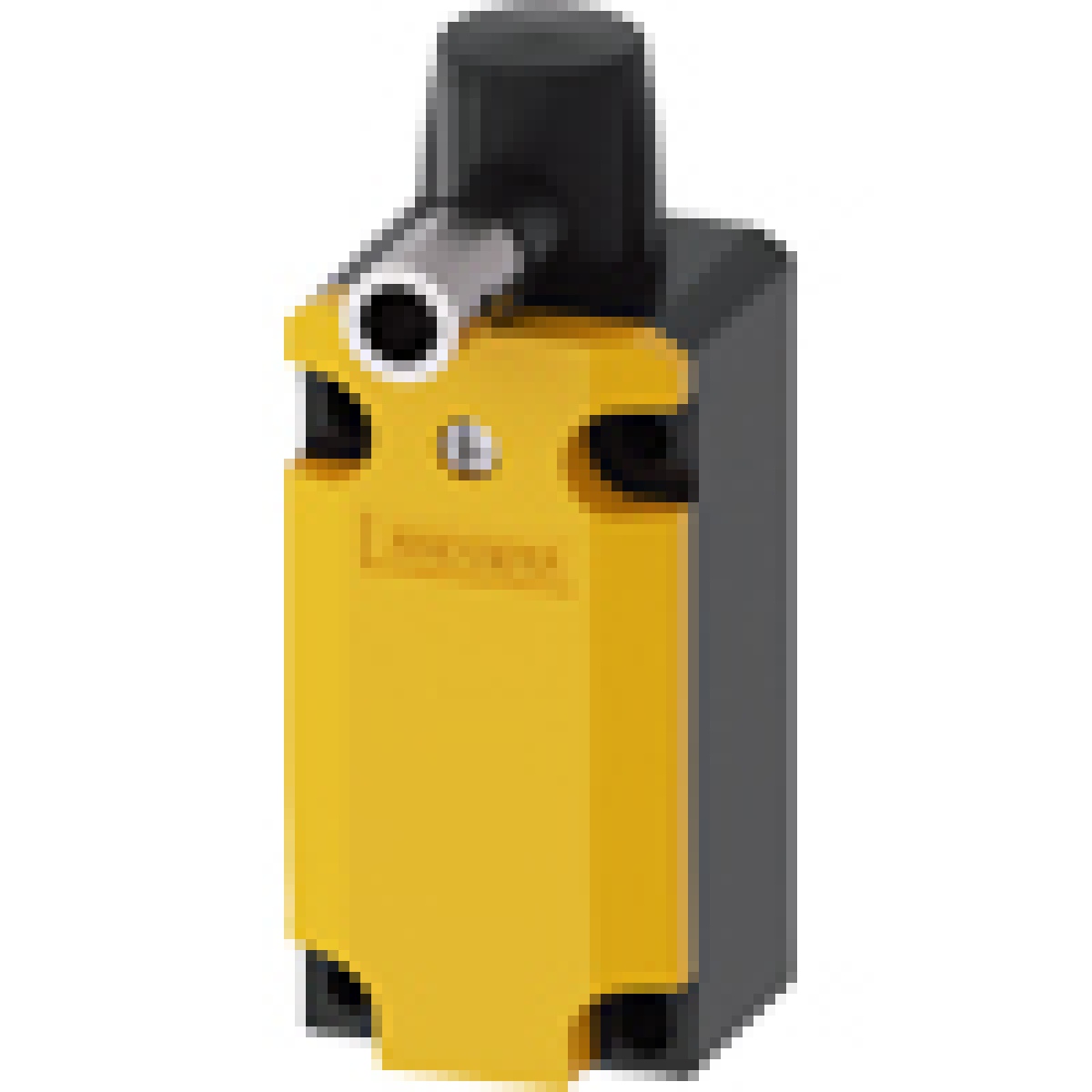

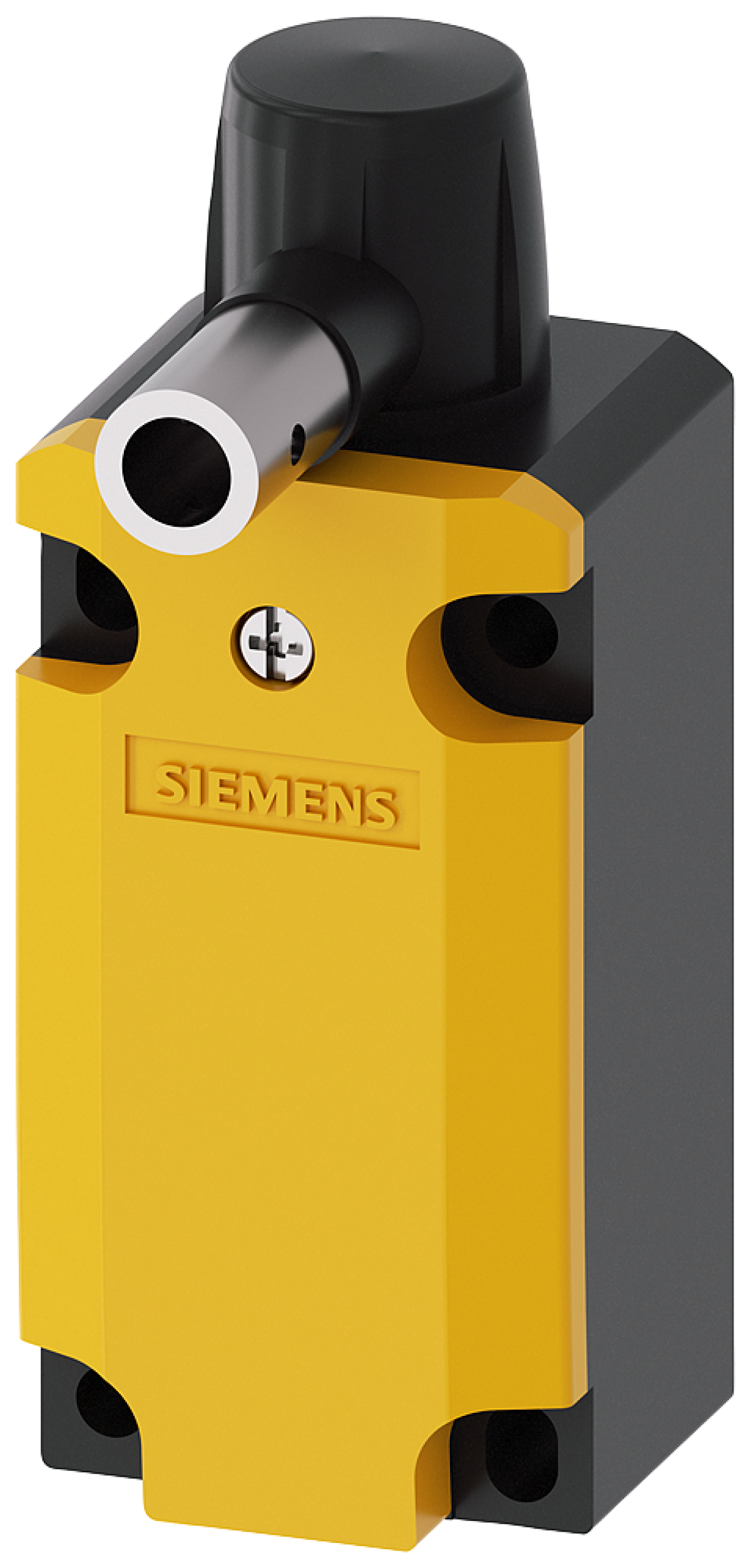

Hinge switch metal encl 40 mm EN50041 with hollow shaft D8 mm actuating
Electromechanical and Electronic Sensors
Hinge switch metal encl 40 mm EN50041 with hollow shaft D8 mm actuating
Manufacturer Ref:
3SE51120LU21
Nortécnica Ref:
EAN:
4011209692602
Description
Technical Information
Attributes
Switching function
-
Rated operation current Ie at AC-15, 230 V
-
Rated operation current Ie at DC-13, 230 V
-
Housing material
Metal
Suitable for safety functions
Yes
Coating housing
-
With status indication
No
Type of interface for safety communication
None
Type of electric connection
-
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
-
Degree of protection IP
IP66IP67
Forced opening
Yes
Number of safety auxiliary contacts
2
Type of control element
-
Type of interface
None
Output electronic
No
Rated operation current Ie at AC-15, 125 V
6
Rated operation current Ie at AC-15, 24 V
6
Rated operation current Ie at DC-13, 125 V
0.55
Rated operation current Ie at DC-13, 24 V
3
Width sensor
40
Diameter sensor
-
Height of sensor
56.5
Length of sensor
78
Switching function latching
No
Ambient temperature during operating
-25
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Alignment of the control element
Roller cam straight
Degree of protection NEMA
12
Brands
Siemens AG

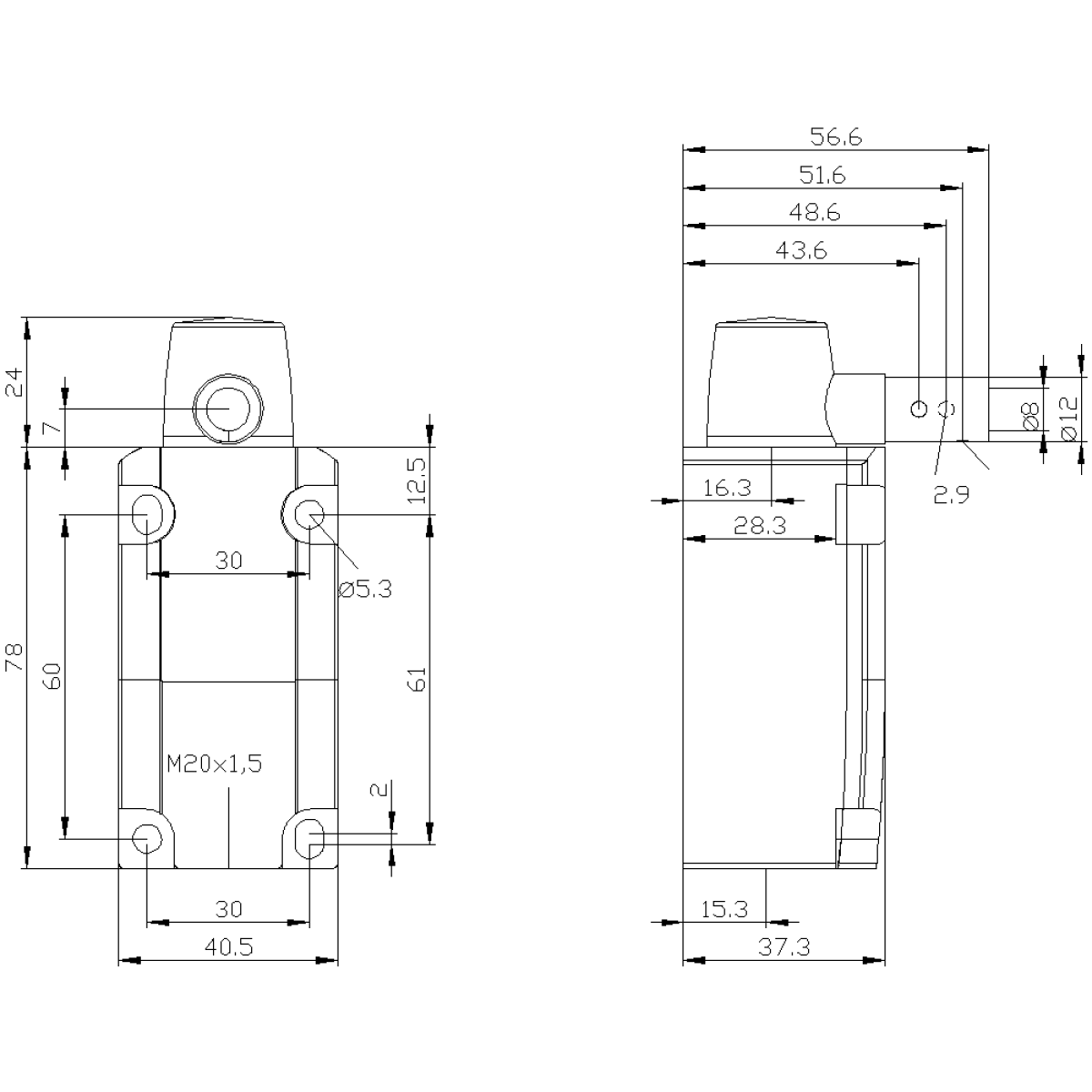

Technical Sheet
