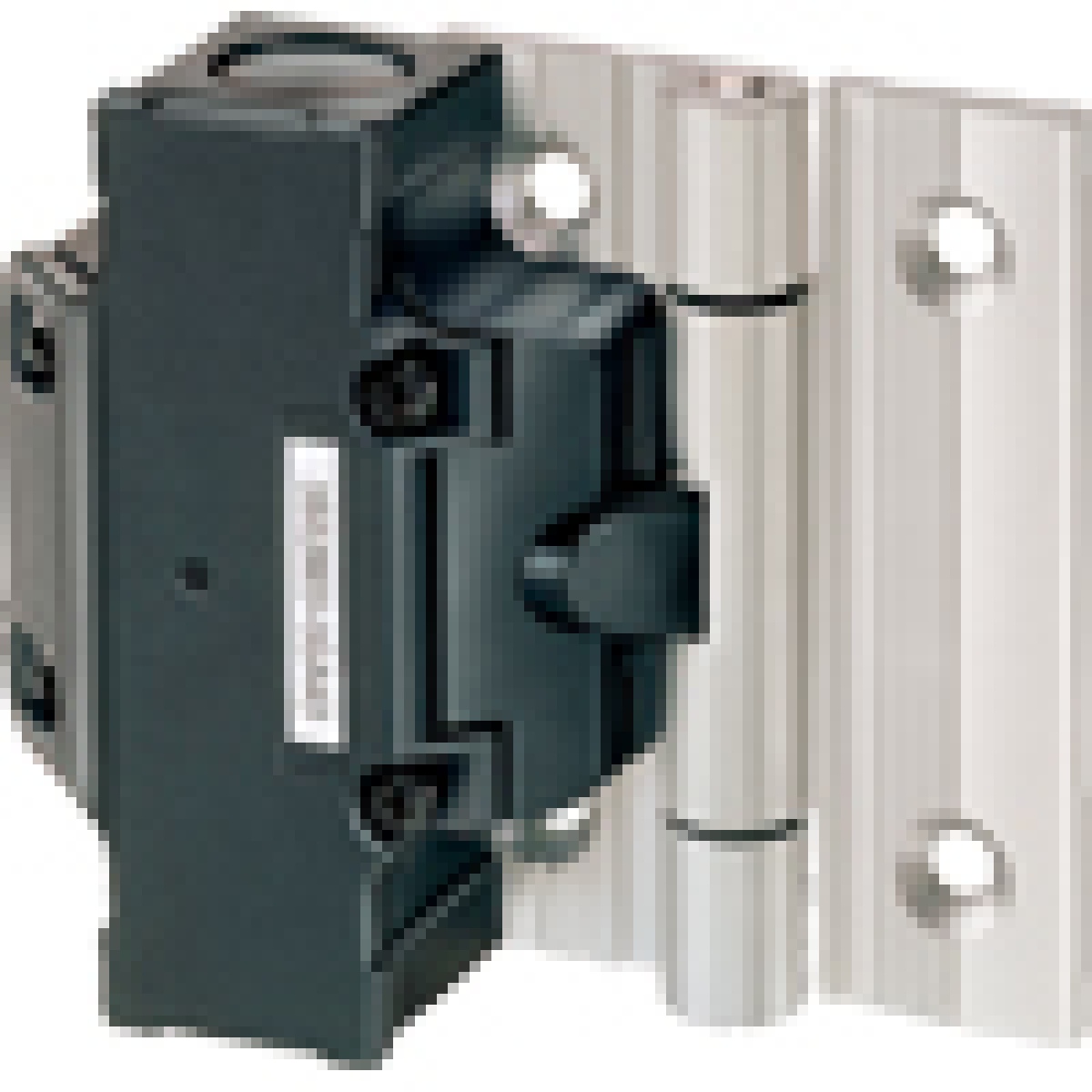

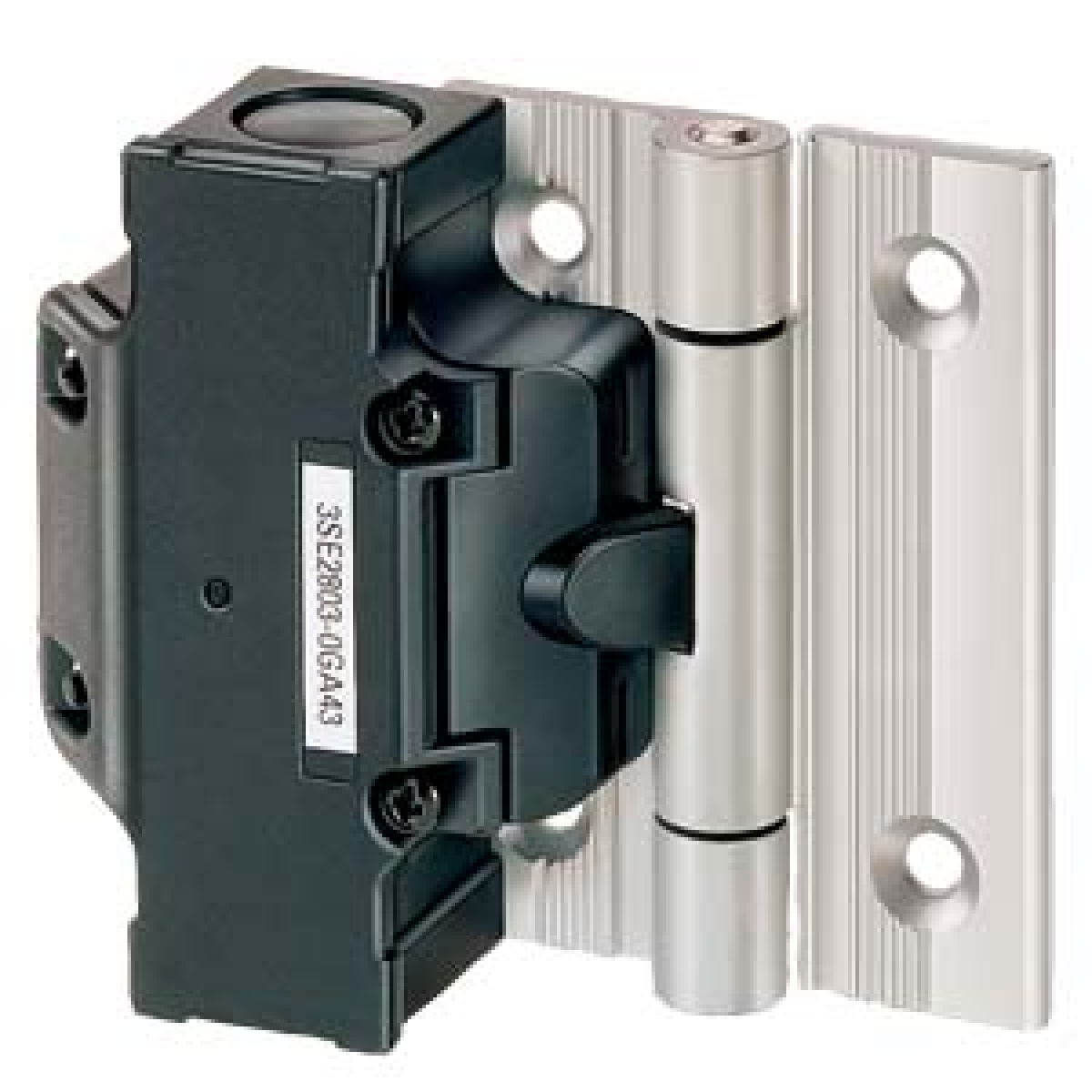

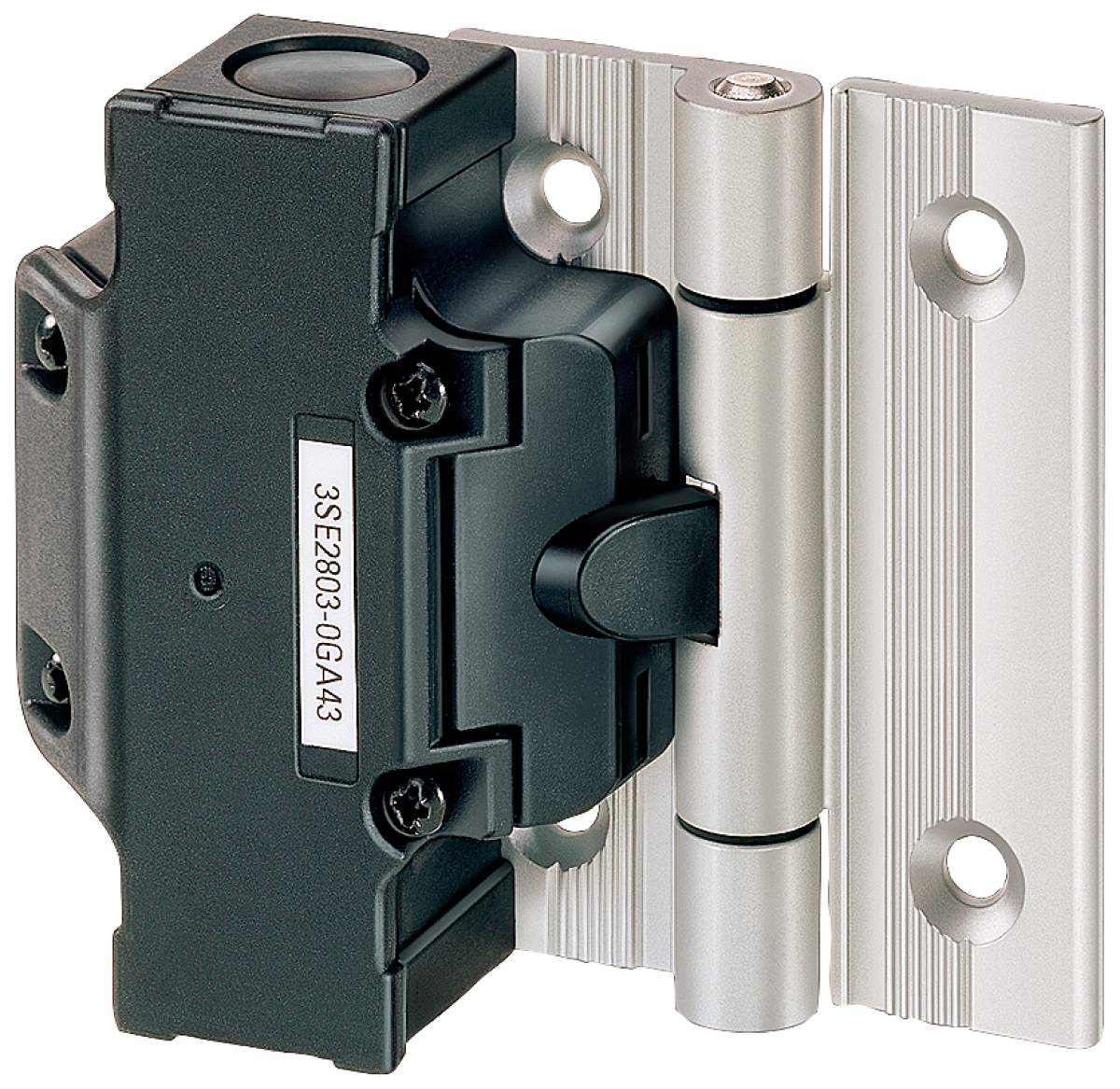

Hinge switch with aluminum hinge 3x0E slowaction for 40 mm profiles delivery
Electromechanical and Electronic Sensors
Hinge switch with aluminum hinge 3x0E slowaction for 40 mm profiles delivery
Manufacturer Ref:
3SE22836GA43
Nortécnica Ref:
EAN:
4011209562554
Description
Technical Information
Attributes
Switching function
-
Rated operation current Ie at AC-15, 230 V
2
Rated operation current Ie at DC-13, 230 V
-
Housing material
-
Suitable for safety functions
Yes
Coating housing
-
With status indication
No
Type of interface for safety communication
None
Type of electric connection
-
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
EV006688
Degree of protection IP
IP65
Forced opening
Yes
Number of safety auxiliary contacts
3
Type of control element
-
Type of interface
None
Output electronic
No
Rated operation current Ie at AC-15, 125 V
4.2
Rated operation current Ie at AC-15, 24 V
-
Rated operation current Ie at DC-13, 125 V
-
Rated operation current Ie at DC-13, 24 V
1

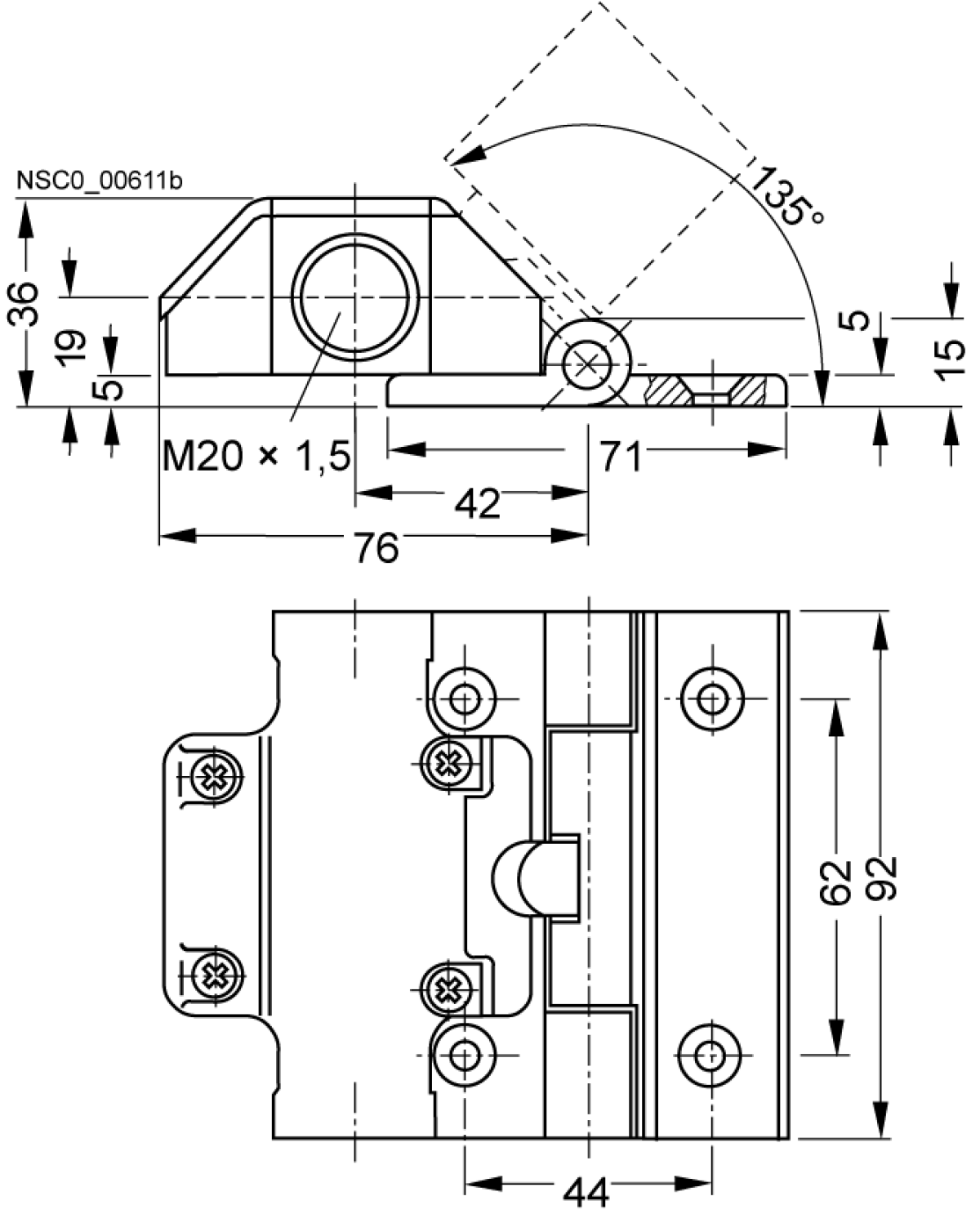

Width sensor
111.5
Diameter sensor
-
Height of sensor
36
Length of sensor
92
Switching function latching
No
Ambient temperature during operating
-25
Number of contacts as normally closed contact
3
Number of contacts as normally open contact
0
Number of contacts as change-over contact
0
Alignment of the control element
Roller cam straight
Degree of protection NEMA
-
Brands
Siemens AG
Technical Sheet
