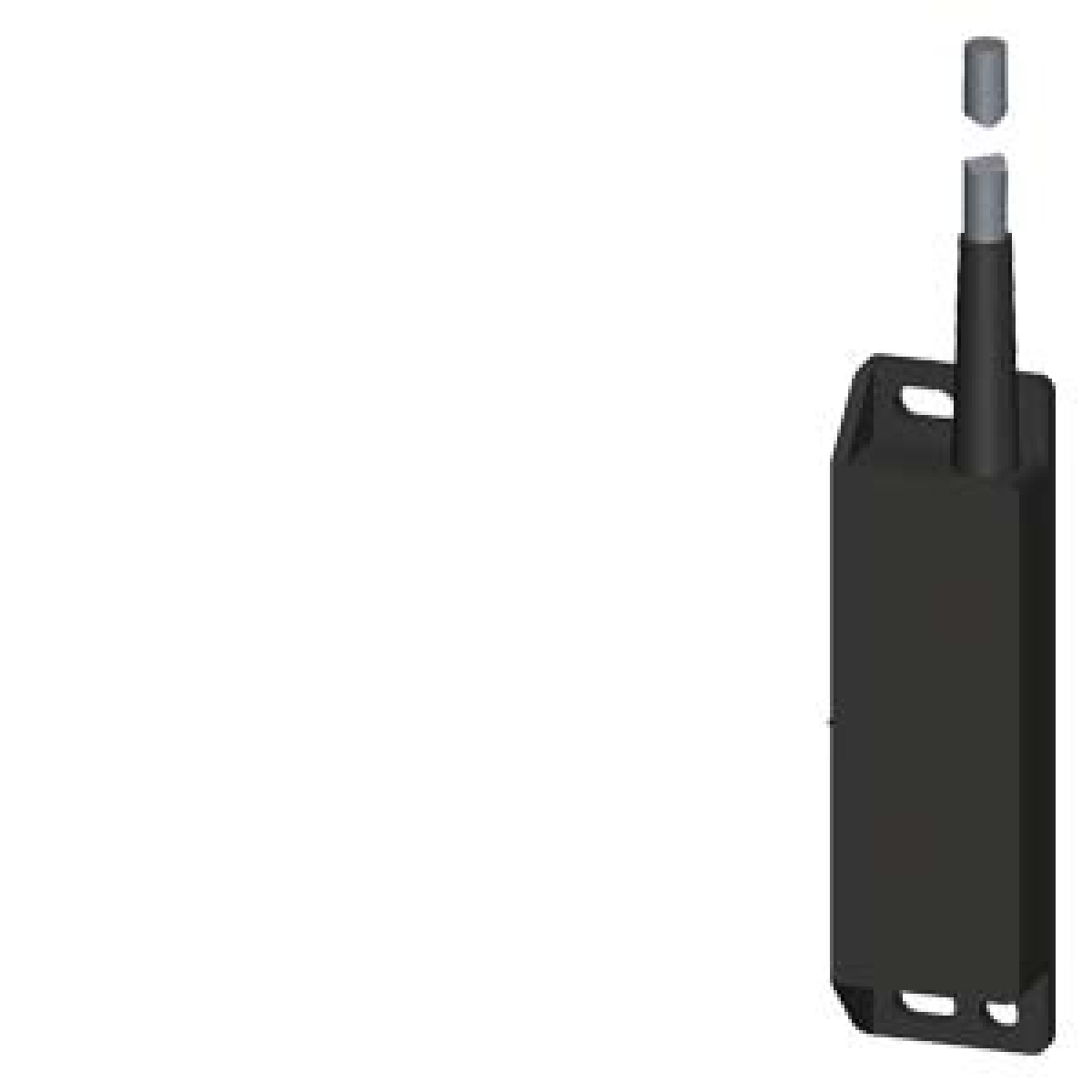

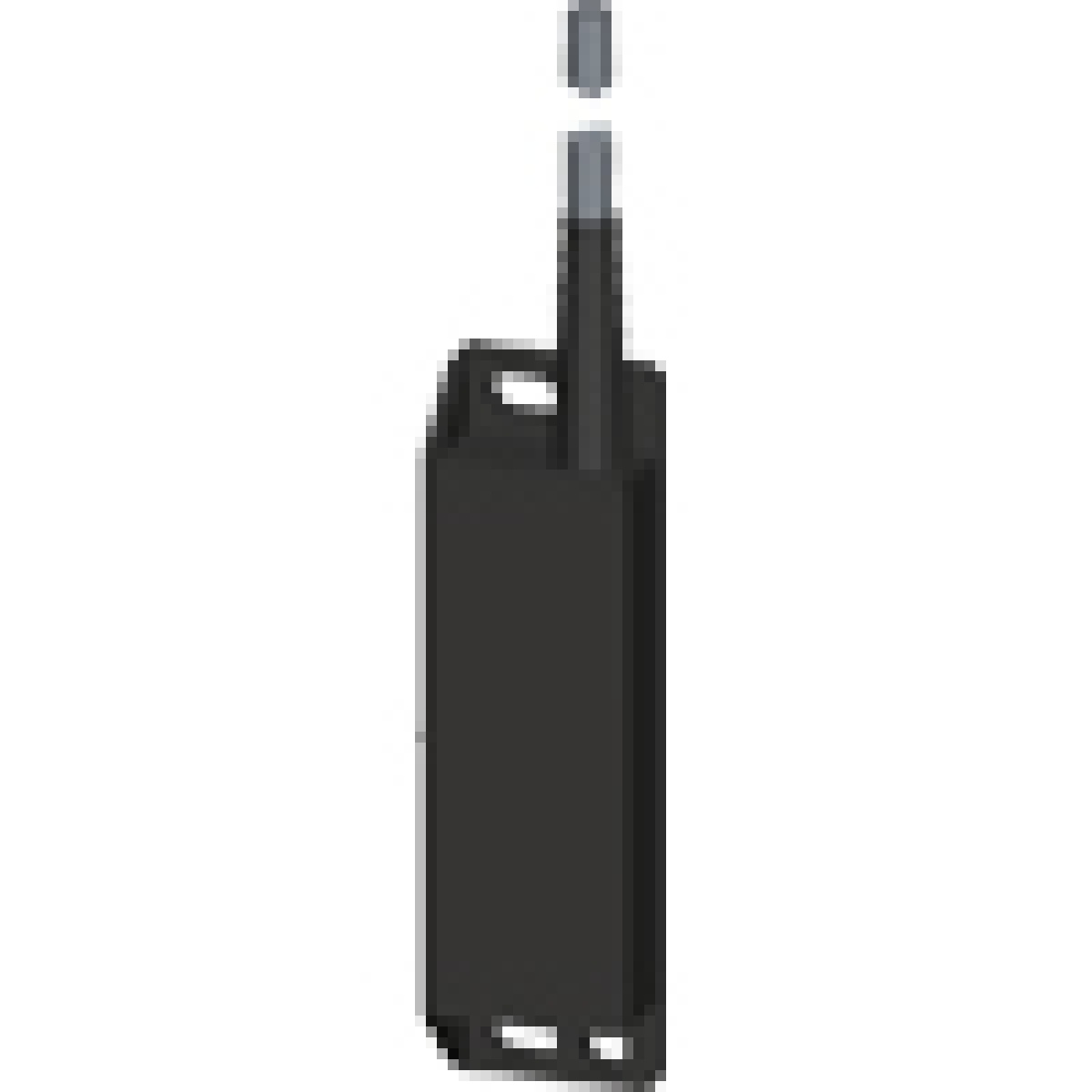

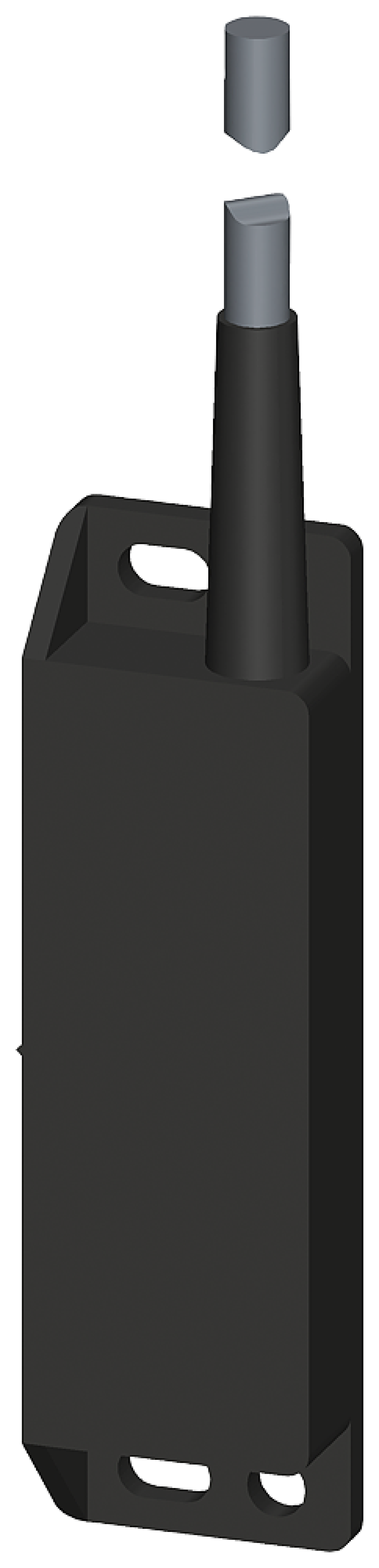

Magnetically operated switch contact block 25 x 88 mm 2 NC 1 NO connectin
Electromechanical and Electronic Sensors
Magnetically operated switch contact block 25 x 88 mm 2 NC 1 NO connectin
Manufacturer Ref:
3SE66062BA04
Nortécnica Ref:
EAN:
4011209938076
Description
Technical Information
Attributes
Voltage type
ACDC
Housing material
Plastic
Suitable for safety functions
Yes
Coating housing
-
With status indication
-
Ambient temperature
-25
Switching distance
-
Number of semiconductor outputs with signalling function
-
Number of contact energized outputs with signalling function
-
Number of protected semiconductor outputs
-
Number of protected contact energized outputs
-
Type of interface for safety communication
-
Type of electric connection
Cable
Type of switching output
Dry reed contact
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Protected switch distance OFF
15
Protected switch distance ON
5
Max. output current at protected output
-
Mechanical mounting condition for sensor
Not flat
Min output current
-
With monitoring function downstream switching devices
-
Crossshort circuit identification possible
Yes
Degree of protection IP
IP67
Type of actuation
Magnet
Rated supply voltage AC 50 Hz
-
Rated supply voltage AC 60 Hz
-
Rated supply voltage DC
-

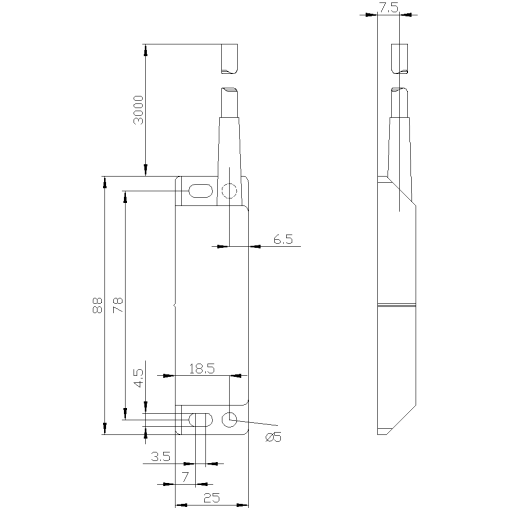

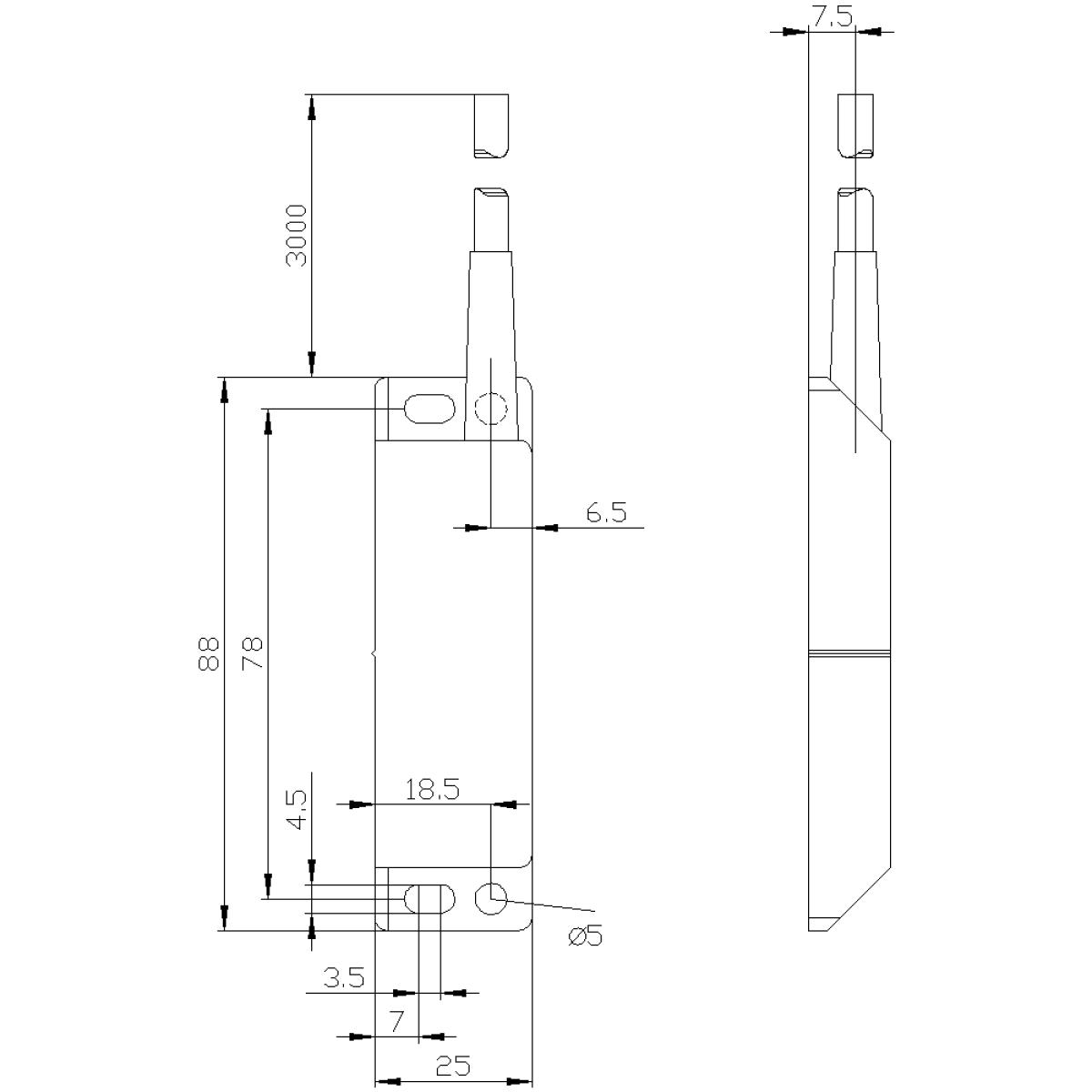

Width sensor
25
Diameter sensor
-
Height of sensor
13
Length of sensor
88
Performance level according to EN ISO 13849-1
Level e
SIL according to IEC 61508
3
Degree of protection NEMA
-
Brands
Siemens AG
Technical Sheet
