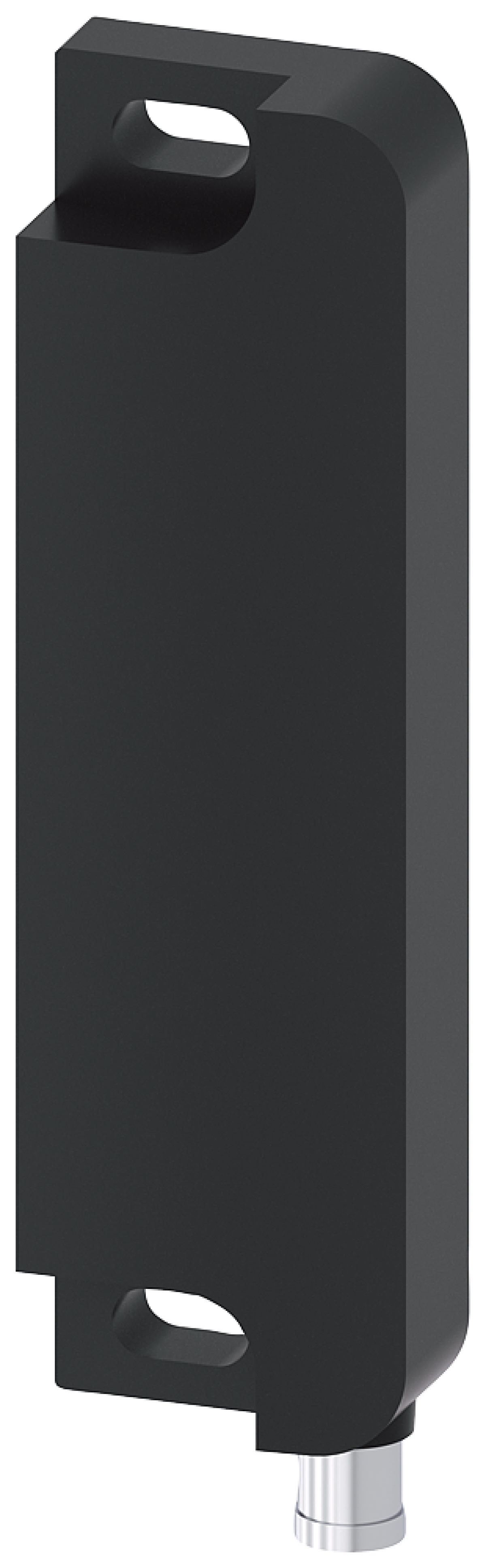

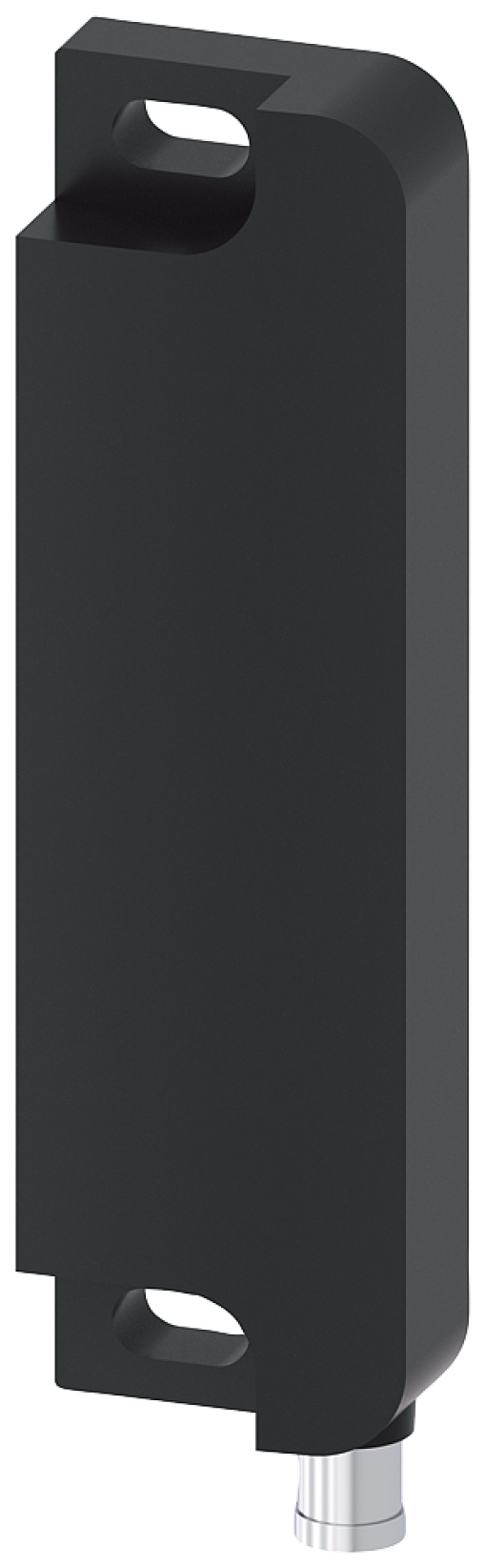

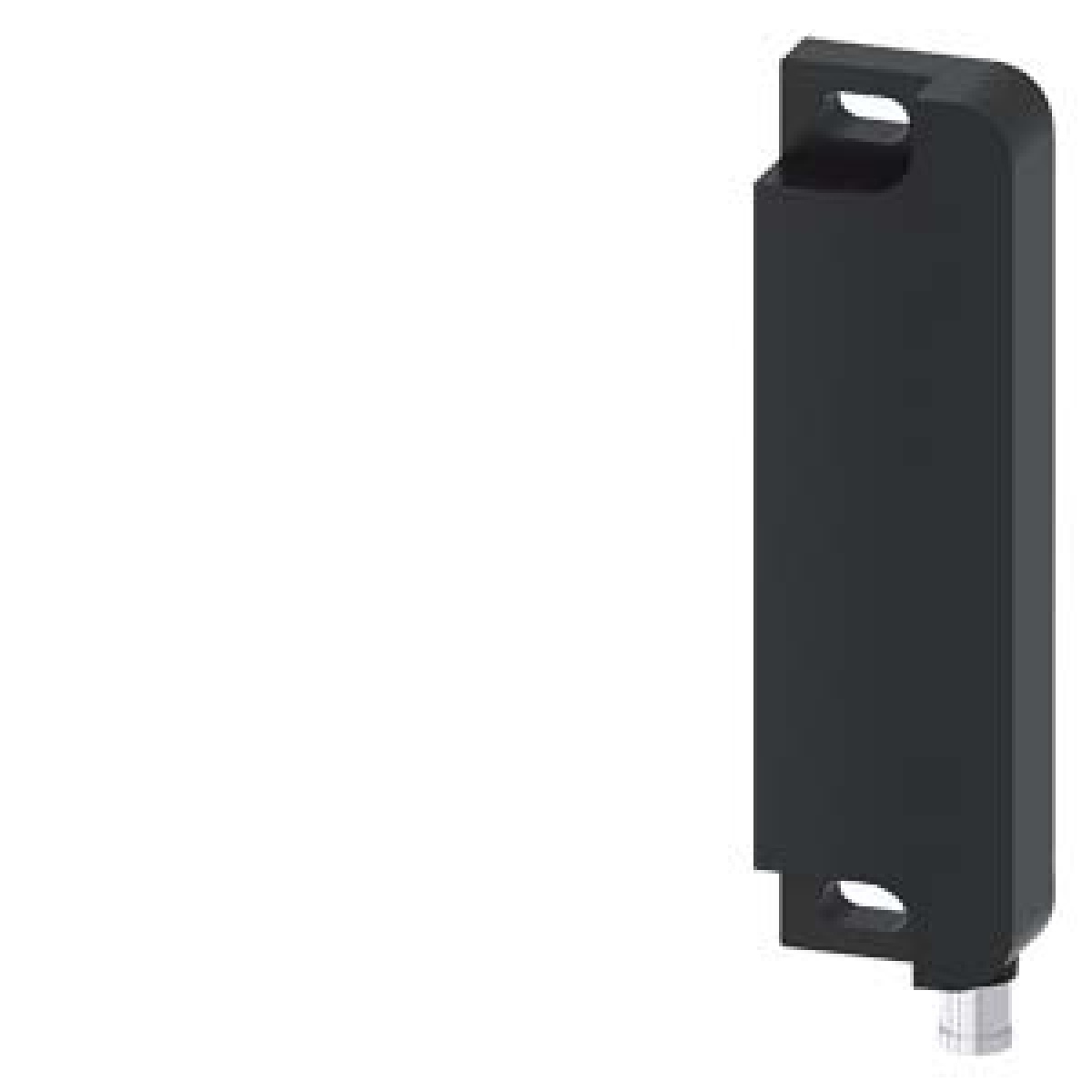

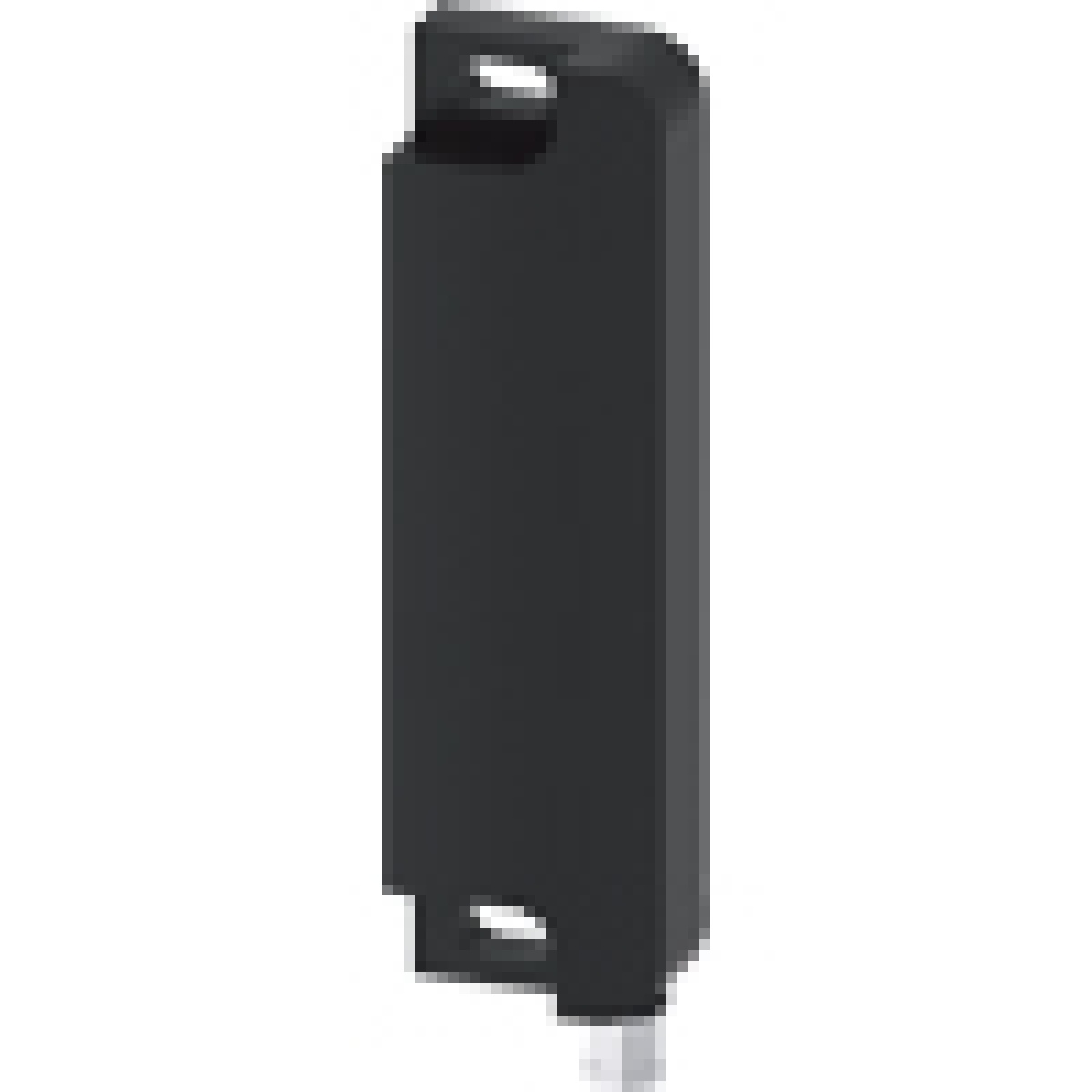

Magnetically operated switch contact block 25 x 88 mm for door hinge left co
Electromechanical and Electronic Sensors
Magnetically operated switch contact block 25 x 88 mm for door hinge left co
Manufacturer Ref:
3SE66172CA01
Nortécnica Ref:
EAN:
4047621002620
Description
Technical Information
Attributes
Voltage type
DC
Housing material
Plastic
Suitable for safety functions
Yes
Coating housing
-
With status indication
-
Ambient temperature
-25
Switching distance
-
Number of semiconductor outputs with signalling function
0
Number of contact energized outputs with signalling function
1
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of interface for safety communication
-
Type of electric connection
-
Type of switching output
-
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
-
Protected switch distance OFF
17
Protected switch distance ON
7
Max. output current at protected output
-
Mechanical mounting condition for sensor
Quasiflat
Min output current
-
With monitoring function downstream switching devices
No
Crossshort circuit identification possible
Yes
Degree of protection IP
IP67
Type of actuation
Magnet
Rated supply voltage AC 50 Hz
-
Rated supply voltage AC 60 Hz
-
Rated supply voltage DC
-

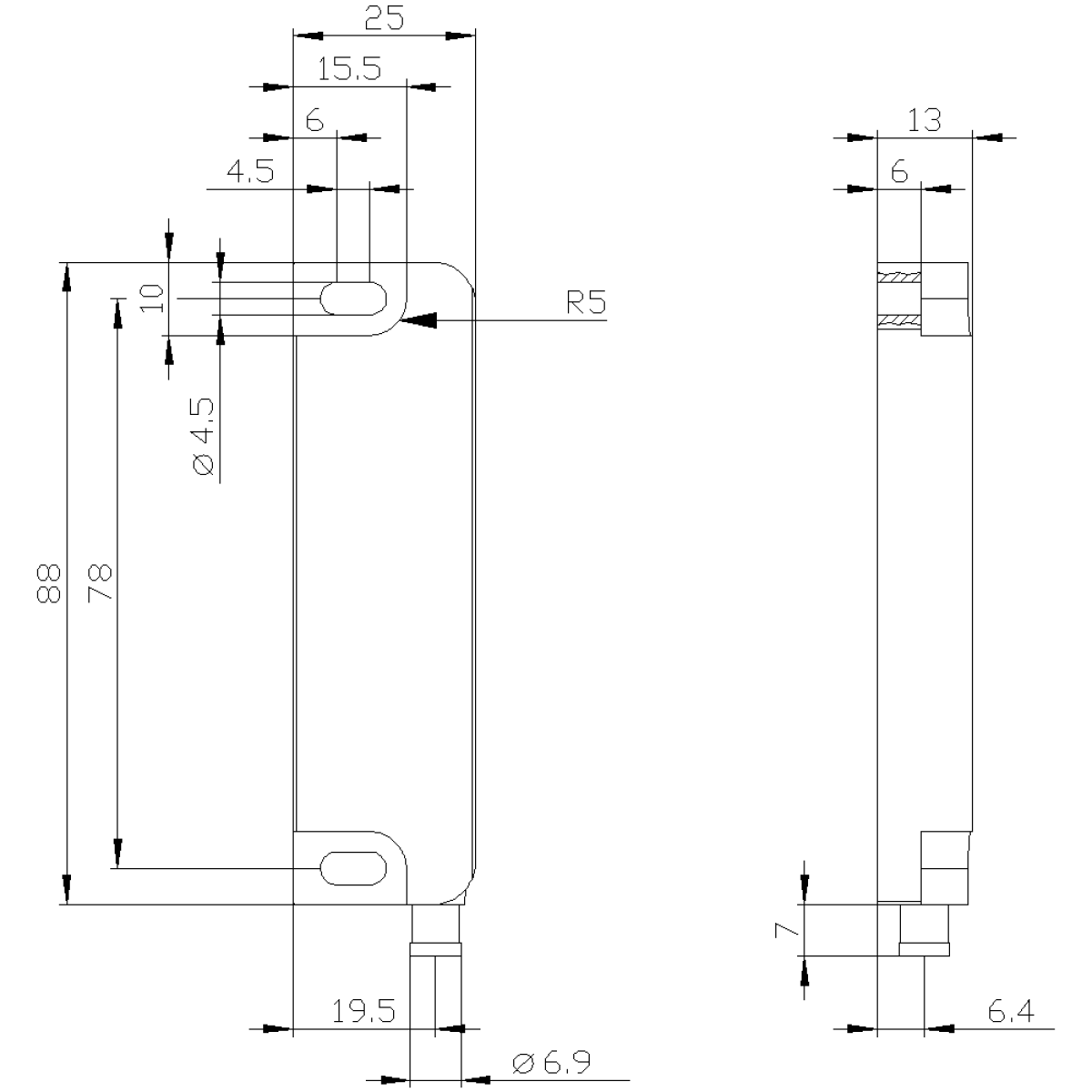

Width sensor
88
Diameter sensor
-
Height of sensor
25
Length of sensor
13
Performance level according to EN ISO 13849-1
Level e
SIL according to IEC 61508
3
Degree of protection NEMA
-
Brands
Siemens AG
Technical Sheet
