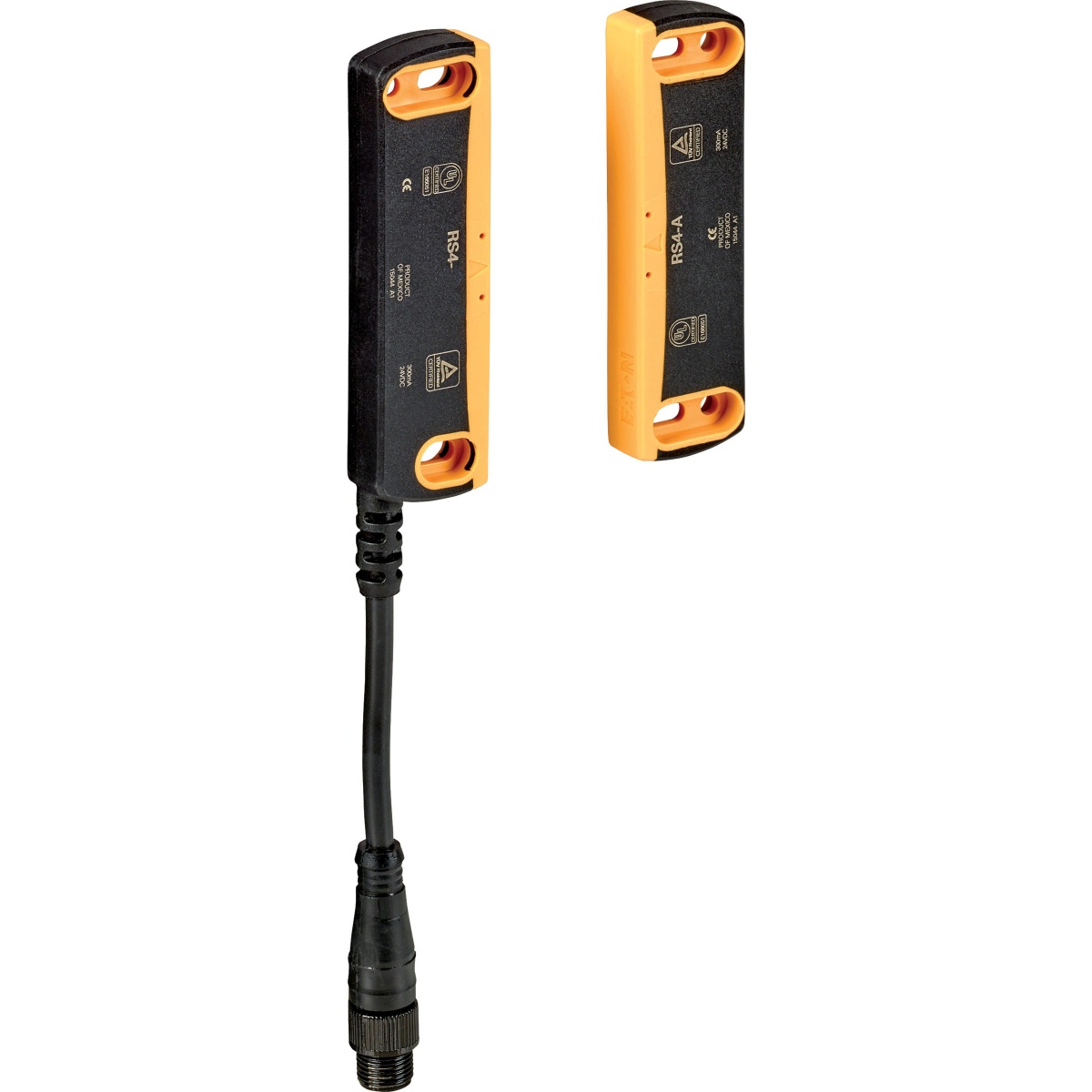

Non-contacting safety switch RS-Titan
Electromechanical and Electronic Sensors
Non-contacting safety switch RS-Titan
Manufacturer Ref:
177299
Nortécnica Ref:
EAN:
4015081717521
Description
Technical Information
Attributes
Rated operation current Ie at AC-15, 230 V
0
Rated operation current Ie at DC-13, 230 V
0
Housing material
Plastic
Suitable for safety functions
Yes
Coating housing
Plastic-coated
With status indication
No
Type of switching contact
Other
Type of interface for safety communication
None
Type of electric connection
Connector M12
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Degree of protection IP
IP67
Forced opening
No
Number of safety auxiliary contacts
2
Type of interface
None
Rated operation current Ie at AC-15, 125 V
0
Rated operation current Ie at AC-15, 24 V
0
Rated operation current Ie at DC-13, 125 V
0
Rated operation current Ie at DC-13, 24 V
0.03
Width sensor
26
Height of sensor
13
Length of sensor
52
Ambient temperature during operating
-10
55
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Degree of protection NEMA
Other
