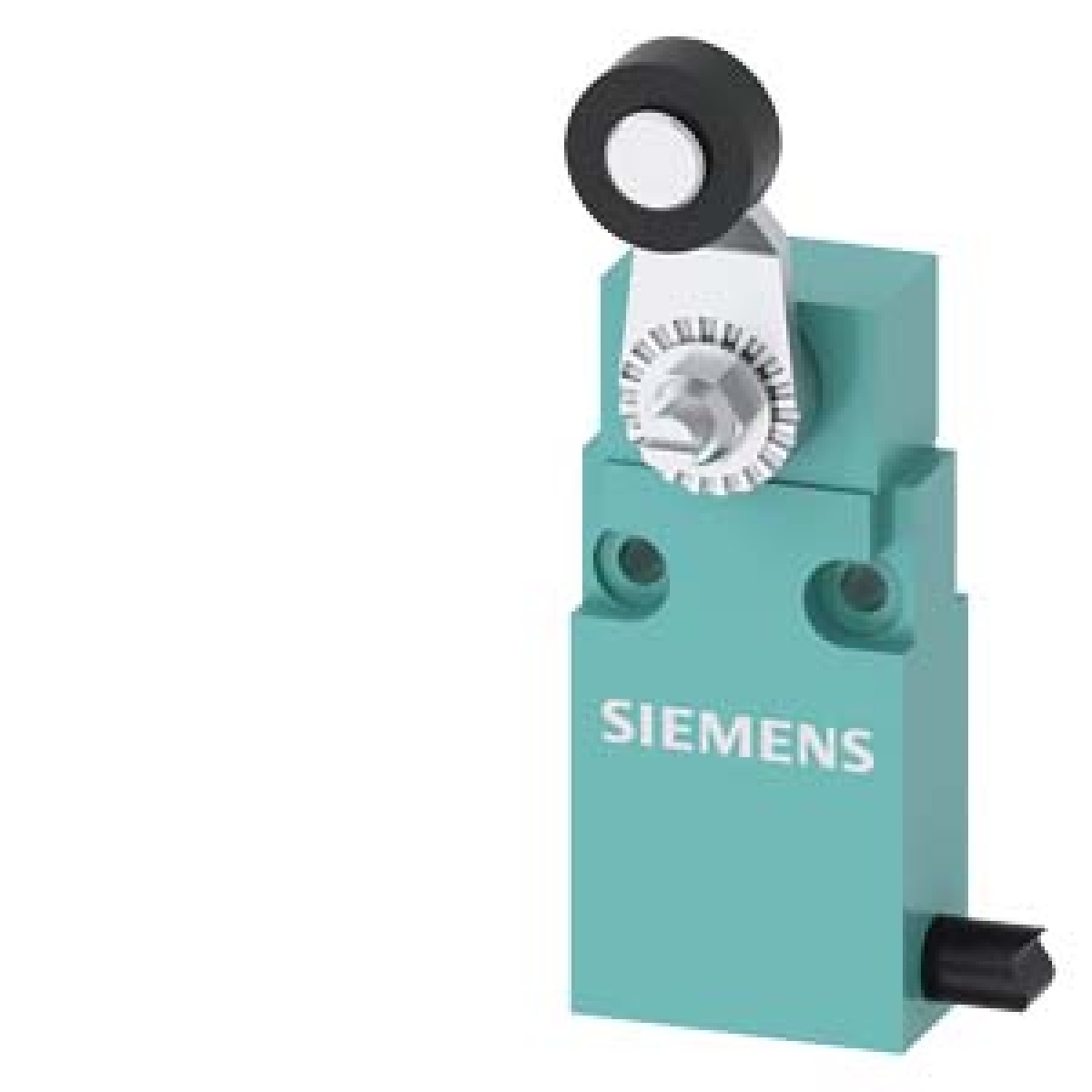

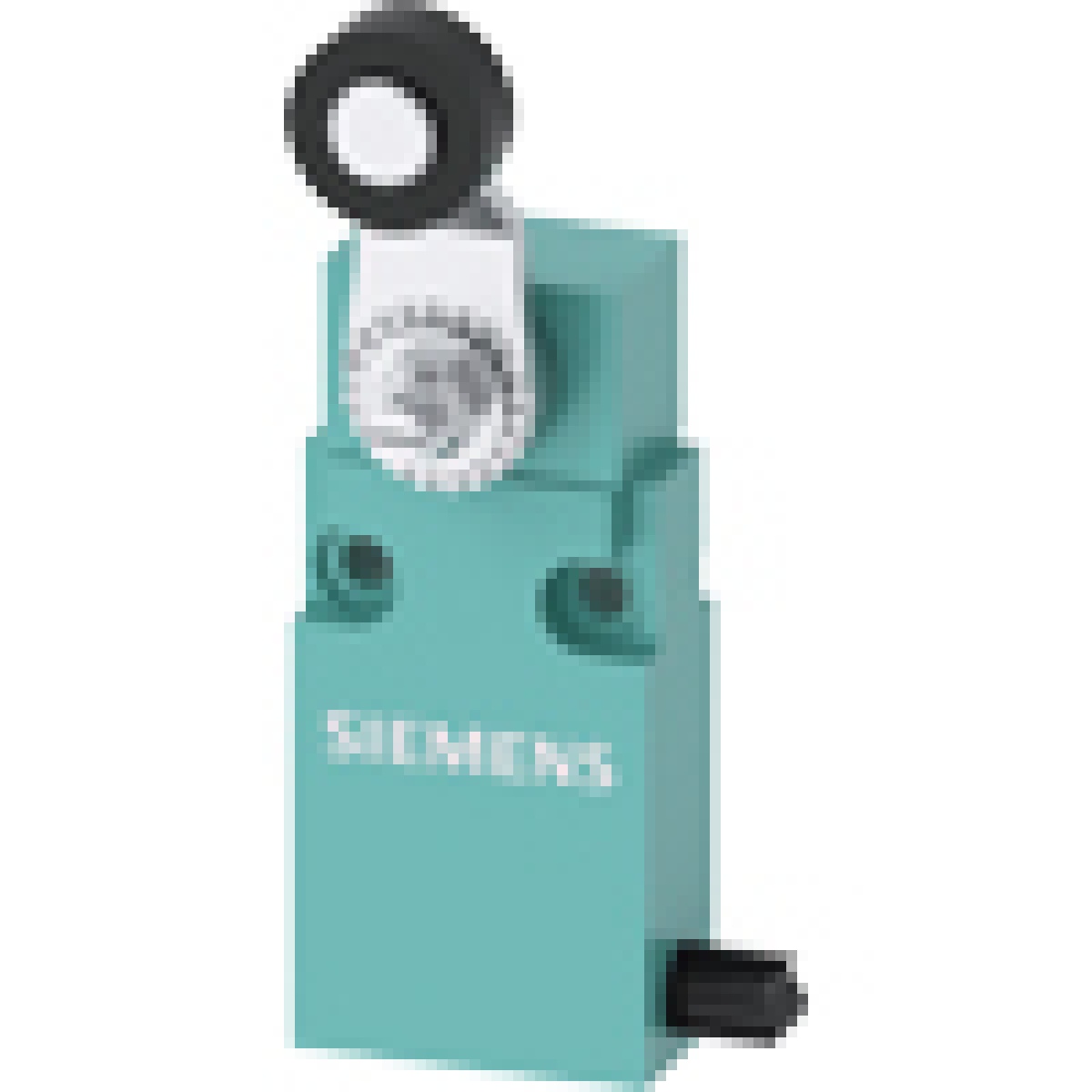

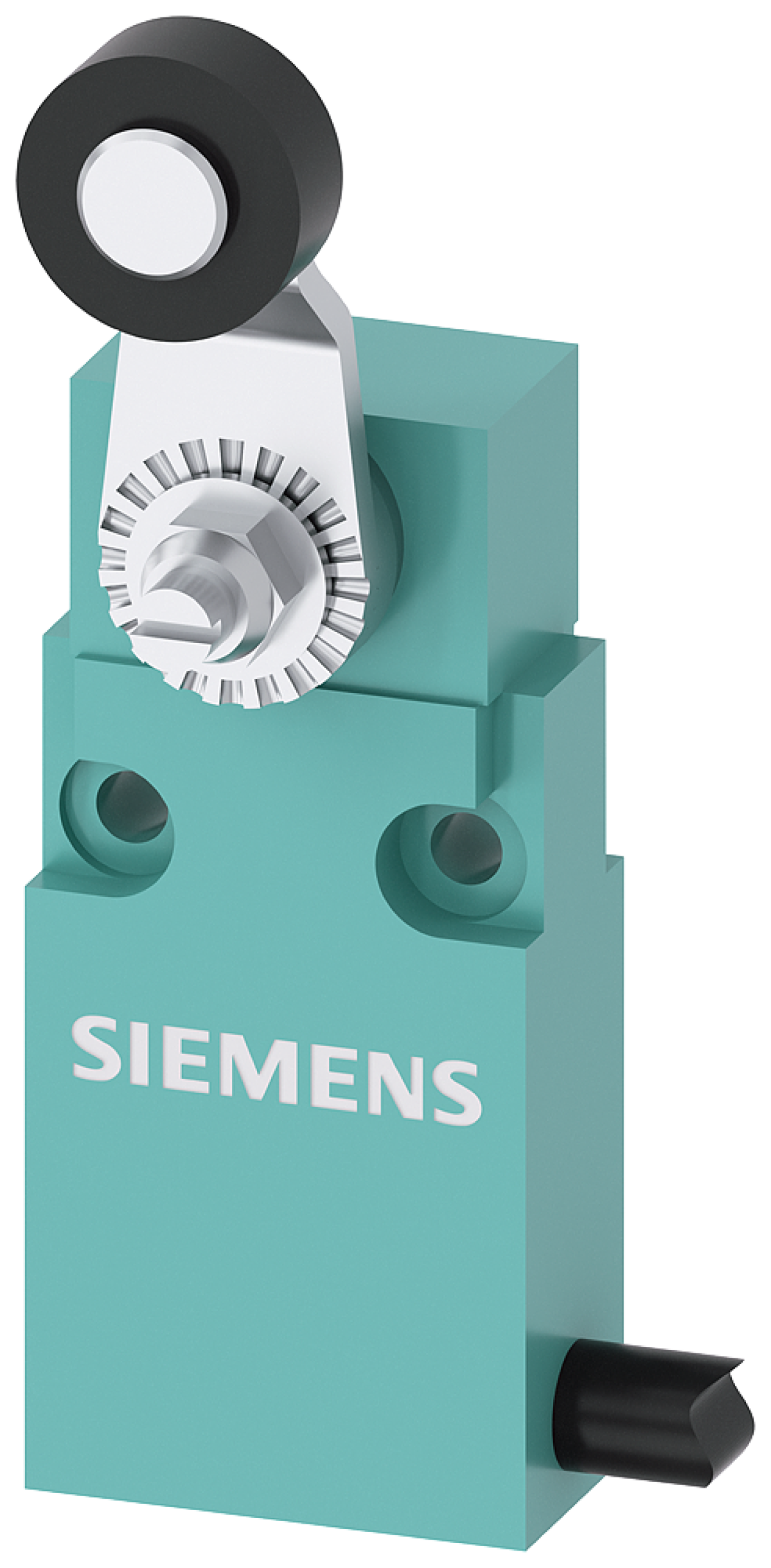

Position switch in compact design 30 mm wide with connection cable 2 m
Electromechanical and Electronic Sensors
Position switch in compact design 30 mm wide with connection cable 2 m
Manufacturer Ref:
3SE54130CN201EA2
Nortécnica Ref:
EAN:
4011209845299
Description
Technical Information
Attributes
Switching function
-
Rated operation current Ie at AC-15, 230 V
3
Rated operation current Ie at DC-13, 230 V
0.27
Housing material
Metal
Suitable for safety functions
Yes
Coating housing
Lacquered
With status indication
No
Type of interface for safety communication
None
Type of electric connection
-
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Degree of protection IP
IP67
Forced opening
Yes
Number of safety auxiliary contacts
1
Type of control element
Rotary lever
Type of interface
None
Output electronic
No
Rated operation current Ie at AC-15, 125 V
6
Rated operation current Ie at AC-15, 24 V
-
Rated operation current Ie at DC-13, 125 V
0.55
Rated operation current Ie at DC-13, 24 V
-

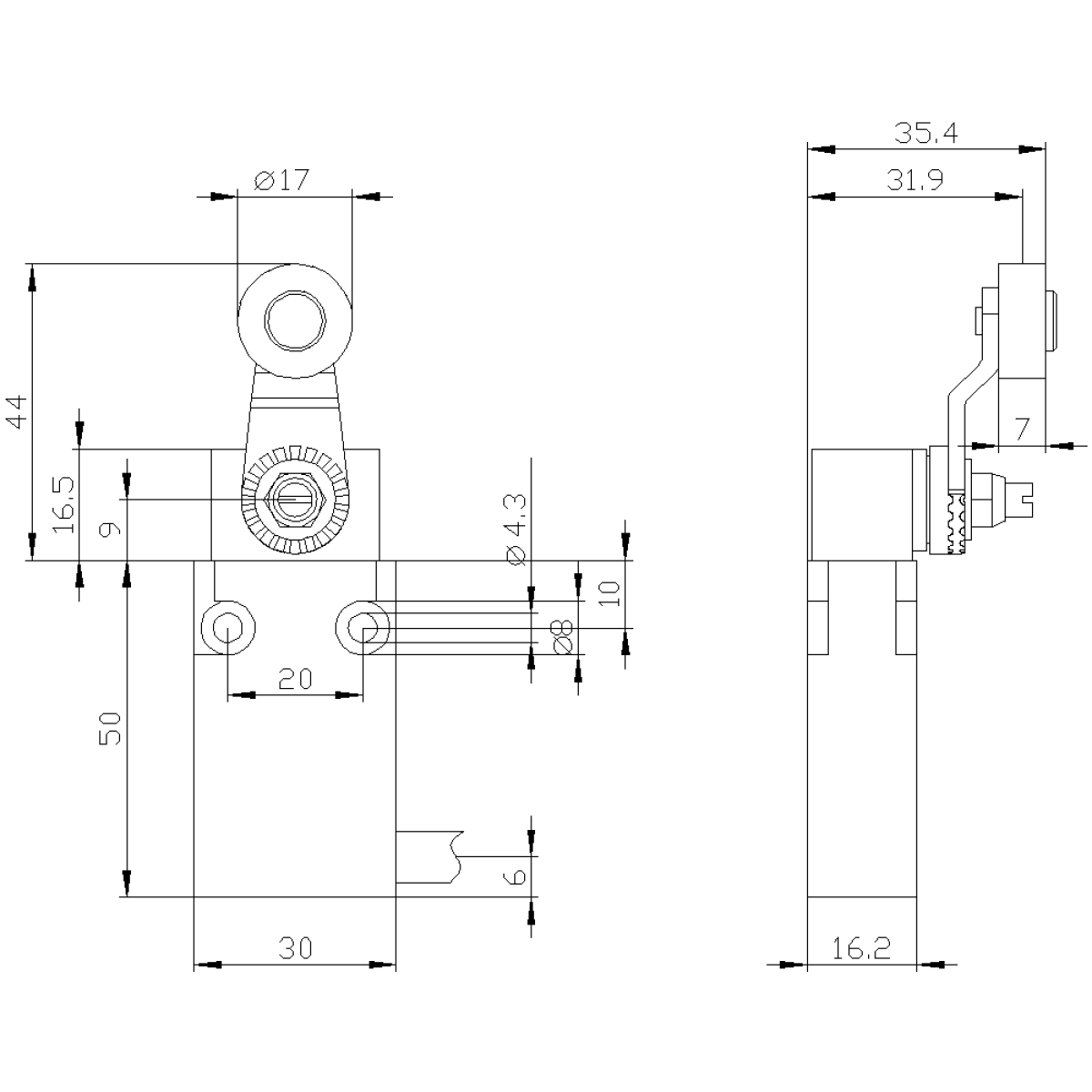

Width sensor
30
Diameter sensor
-
Height of sensor
16
Length of sensor
95
Switching function latching
No
Ambient temperature during operating
-25
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Alignment of the control element
Roller cam straight
Degree of protection NEMA
-
Brands
Siemens AG
Technical Sheet
