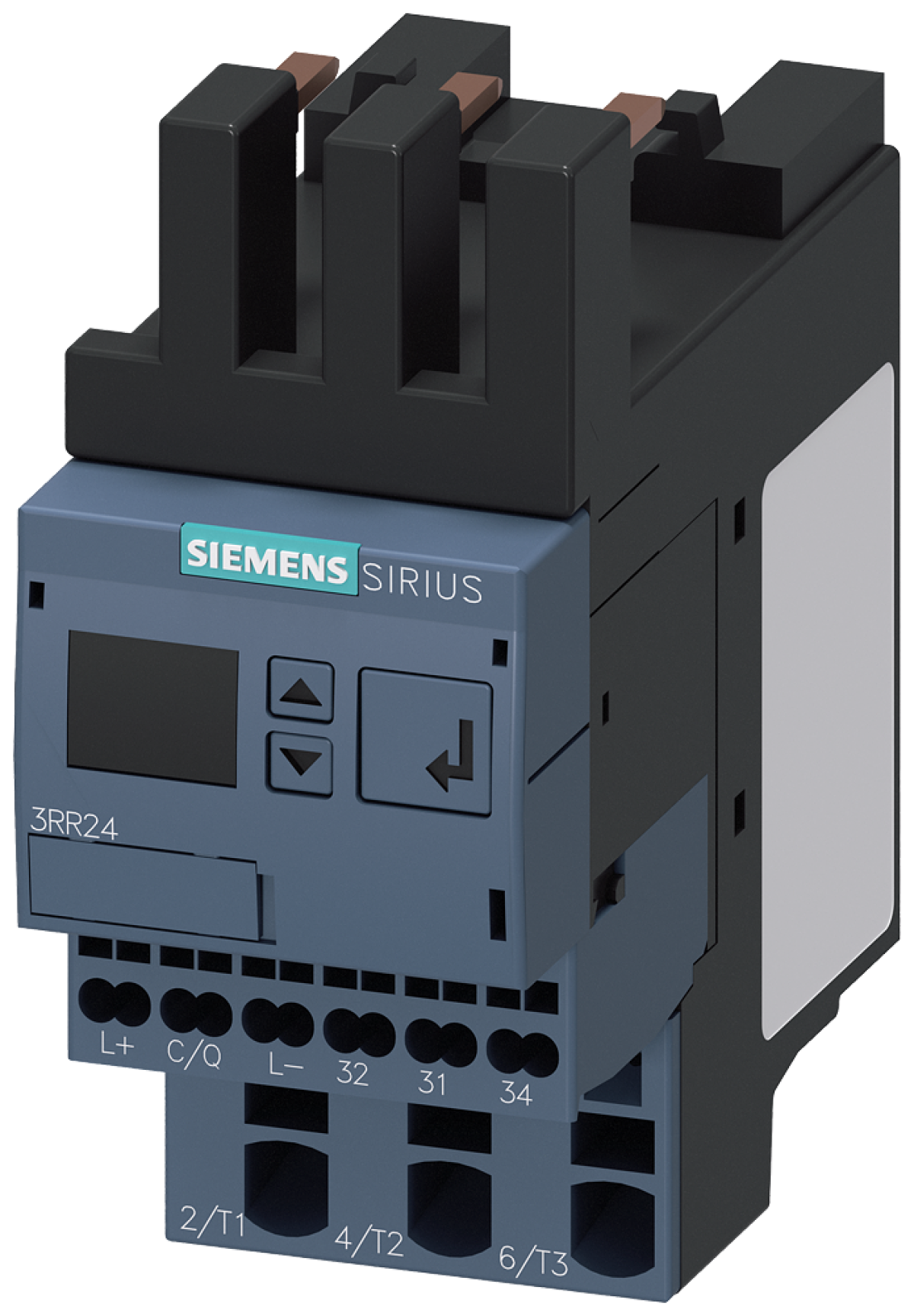

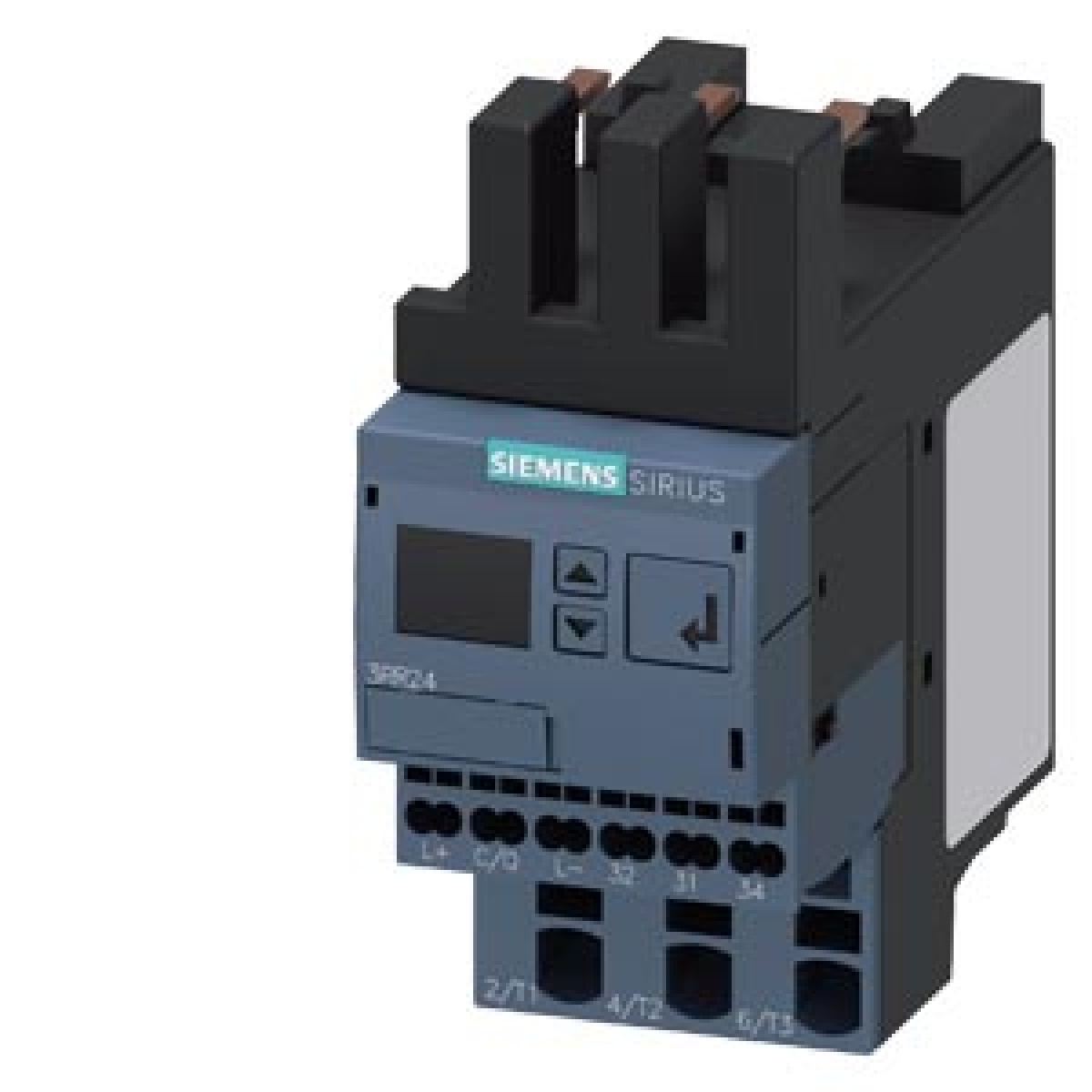

Current monitoring relay for IOLink S0
Industrial Relays
Current monitoring relay for IOLink S0
Manufacturer Ref:
3RR24422AA40
Nortécnica Ref:
EAN:
4011209915862
Description
Technical Information
Attributes

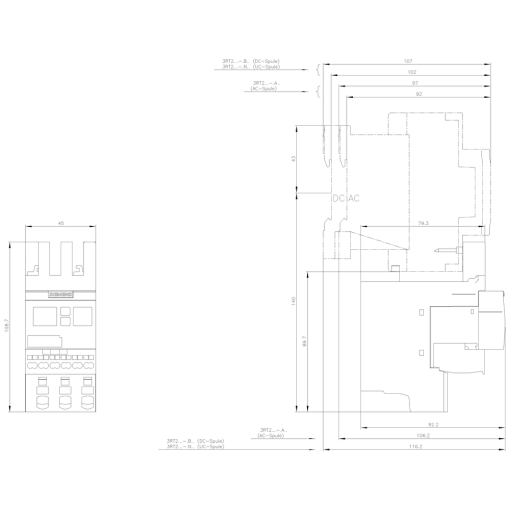

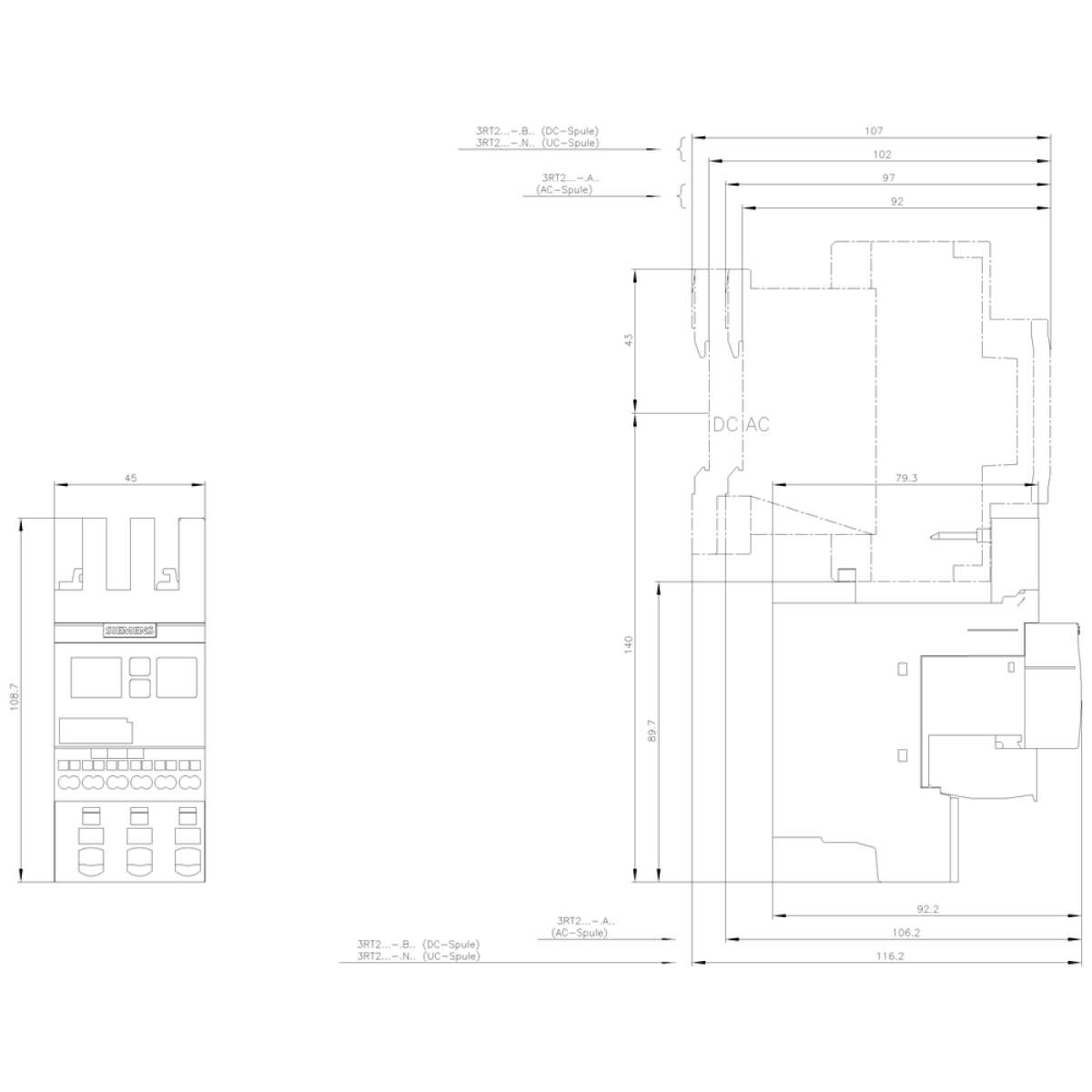

Width
45
Height
109
Depth
92
Current measuring range
4
External current transformer
No
With detachable clamps
-
Single-phase hysteresis possible
No
Three-phase hysteresis possible
No
Single-phase under current possible
No
Three-phase under current possible
Yes
Single-phase overcurrent possible
No
Three-phase overcurrent possible
Yes
Contains function DC-voltage under current
No
Contains function DC-voltage overcurrent
No
Function DC-current hysteresis
No
Type of electric connection
Spring clamp connection
Rated control supply voltage AC 50 Hz
-
Rated control supply voltage AC 60 Hz
-
Rated control supply voltage DC
24
Max. permitted delay-on energization time
999.9
Min. adjustable delay-on energization time
0
Max. permitted off-delay time
999.9
Min. adjustable off-delay time
0
Voltage type for actuating
EV000461
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Number of contacts as change-over contact
-
Brands
Siemens AG
Technical Sheet
