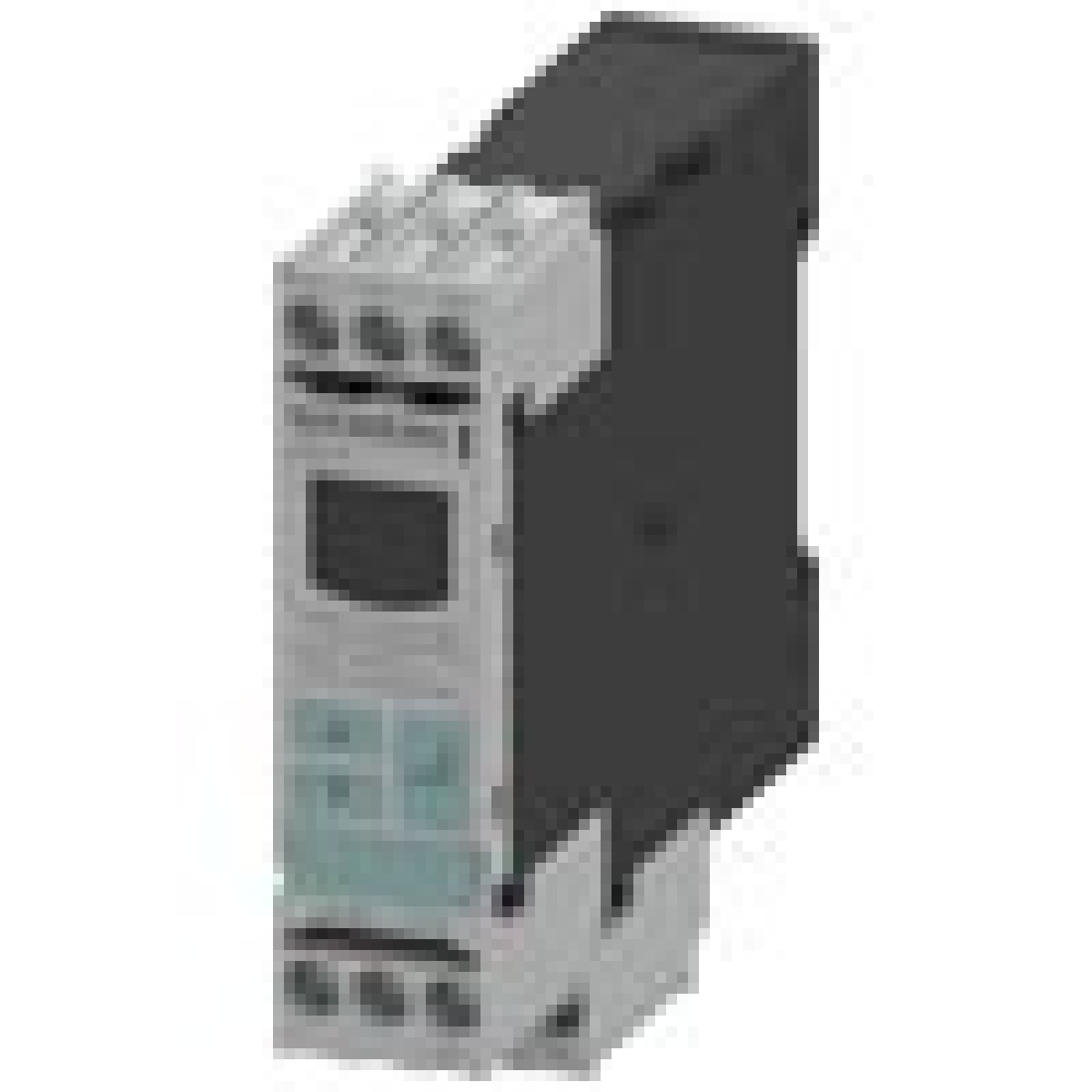

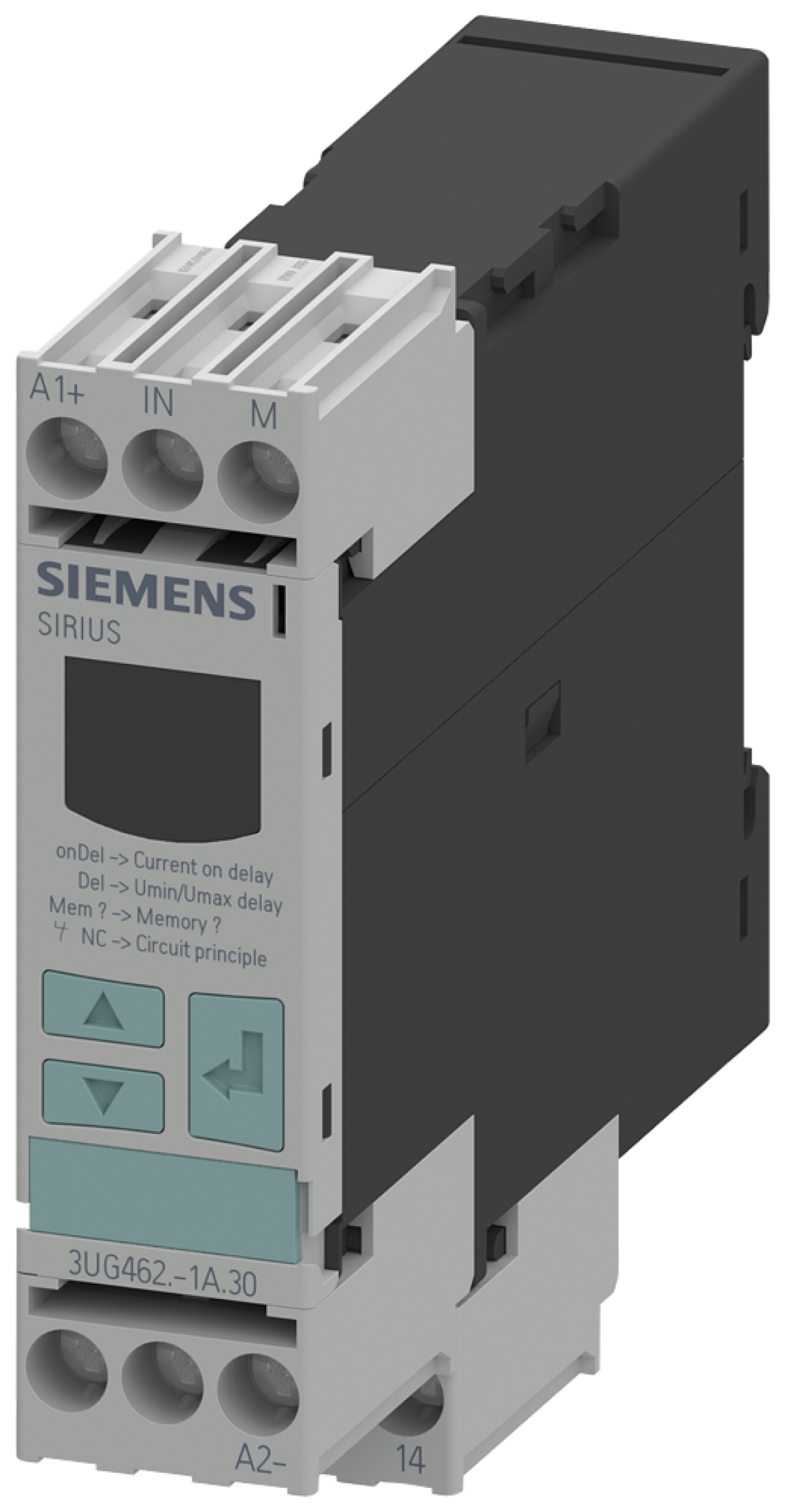

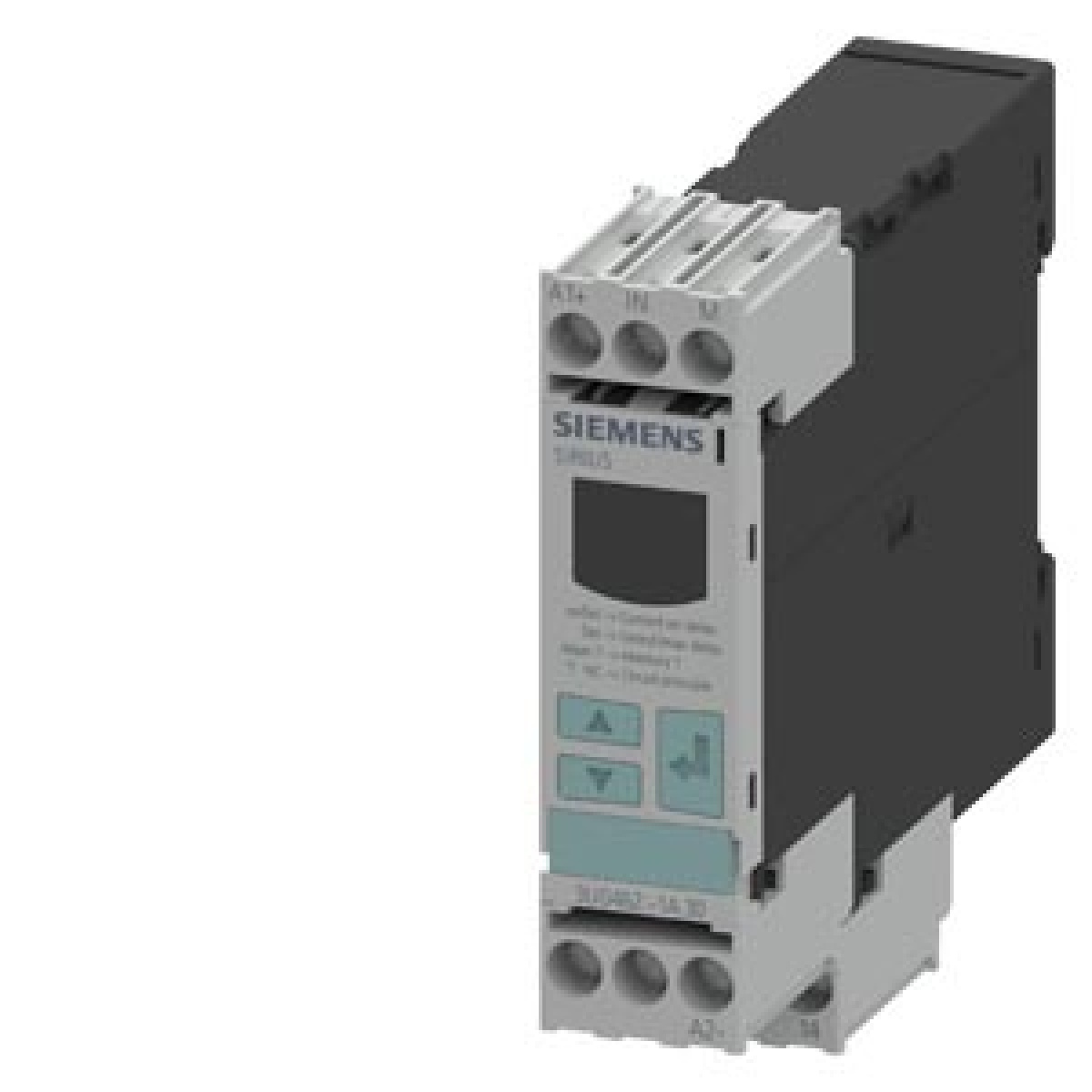

Digital monitoring relay current monitoring 225 mm von 01 to 10 A ACDC
Industrial Relays
Digital monitoring relay current monitoring 225 mm von 01 to 10 A ACDC
Manufacturer Ref:
3UG46221AA30
Nortécnica Ref:
EAN:
4011209642416
Description
Technical Information
Attributes
Width
22.5
Height
92
Depth
91
Current measuring range
0.05
External current transformer
-
With detachable clamps
-
Single-phase hysteresis possible
No
Three-phase hysteresis possible
No
Single-phase under current possible
Yes
Three-phase under current possible
No
Single-phase overcurrent possible
Yes
Three-phase overcurrent possible
No
Contains function DC-voltage under current
Yes
Contains function DC-voltage overcurrent
Yes
Function DC-current hysteresis
Yes
Type of electric connection
Screw connection
Rated control supply voltage AC 50 Hz
24
Rated control supply voltage AC 60 Hz
20.4
Rated control supply voltage DC
24
Max. permitted delay-on energization time
20
Min. adjustable delay-on energization time
0.1
Max. permitted off-delay time
20
Min. adjustable off-delay time
0.1
Voltage type for actuating
EV000509
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Brands
Siemens AG
