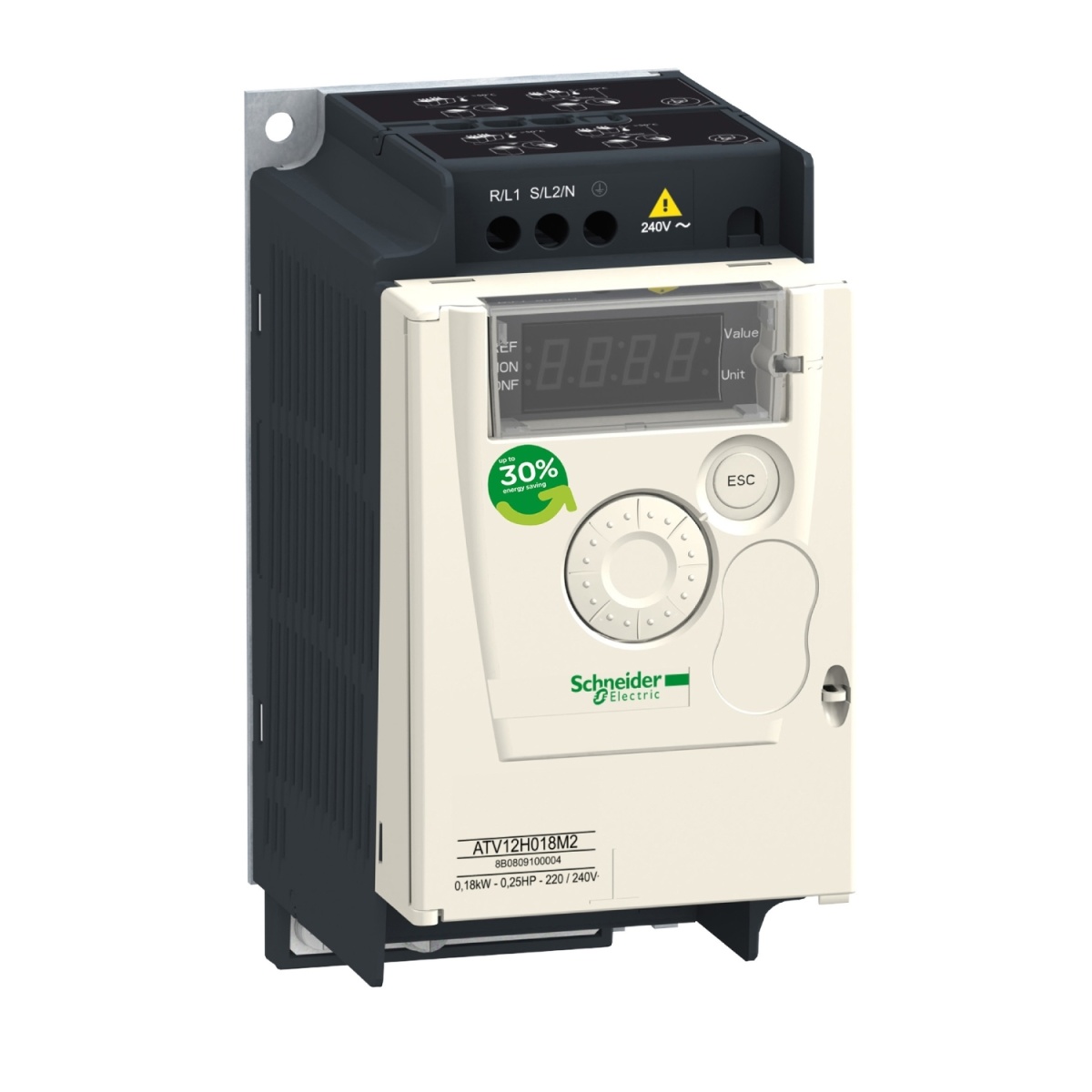

Variador de velocidade ATV12 - 0.18kW - 0.25HP - 200..240V - 1ph - lote de 14
Speed Variation and Motor Starting
Variador de velocidade ATV12 - 0.18kW - 0.25HP - 200..240V - 1ph - lote de 14
Manufacturer Ref:
ATV12H018M2TQ
Nortécnica Ref:
EAN:
3606480076565
Description
Technical Information
Attributes
Width
72
Height
143
Depth
102.2
Power consumption
-
With control element
Yes
Number of digital inputs
4
Number of digital outputs
1
Number of analogue inputs
1
Number of analogue outputs
1
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
With optical interface
No
Supporting protocol for TCPIP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Degree of protection IP
IP20
With PC connection
Yes
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Mains voltage
200
240
Mains frequency
50/60 Hz
4-quadrant operation possible
No
Number of interfaces PROFINET
0
Type of converter
U converter
Number of phases output
3
Number of phases input
1
Integrated breaking resistance
No
Application in industrial area permitted
Yes
Application in domestic- and commercial area permitted
Yes
Max. output frequency
400
Max. output at linear load at rated output voltage
0.18
Max. output at quadratic load at rated output voltage
0.18
Relative symmetric net voltage tolerance
10
Relative symmetric net frequency tolerance
5
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Max. output voltage
240
Nominal output current I2N
1.4
Supporting protocol for BACnet
No
Degree of protection NEMA
-
Brands
Schneider
