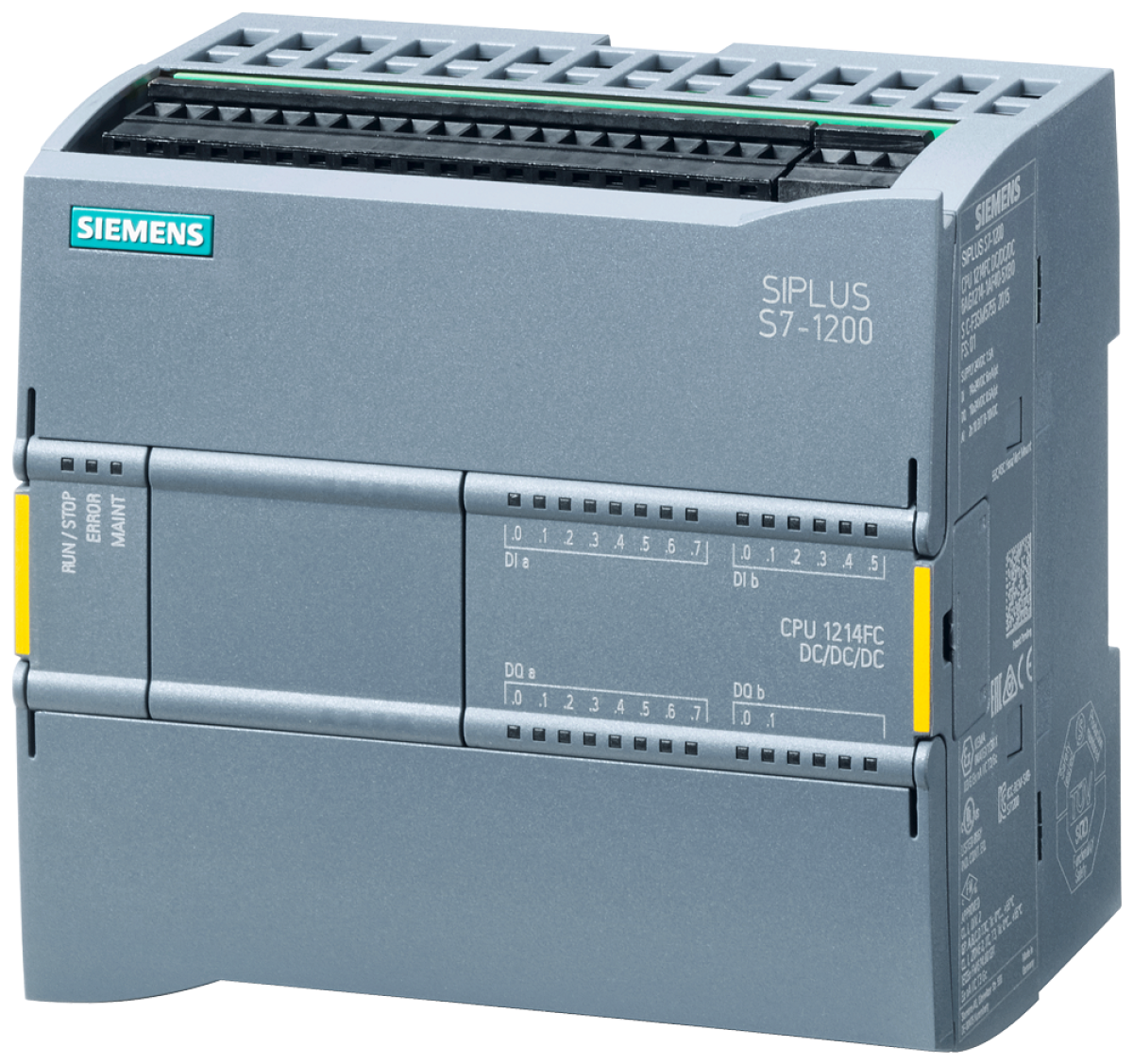

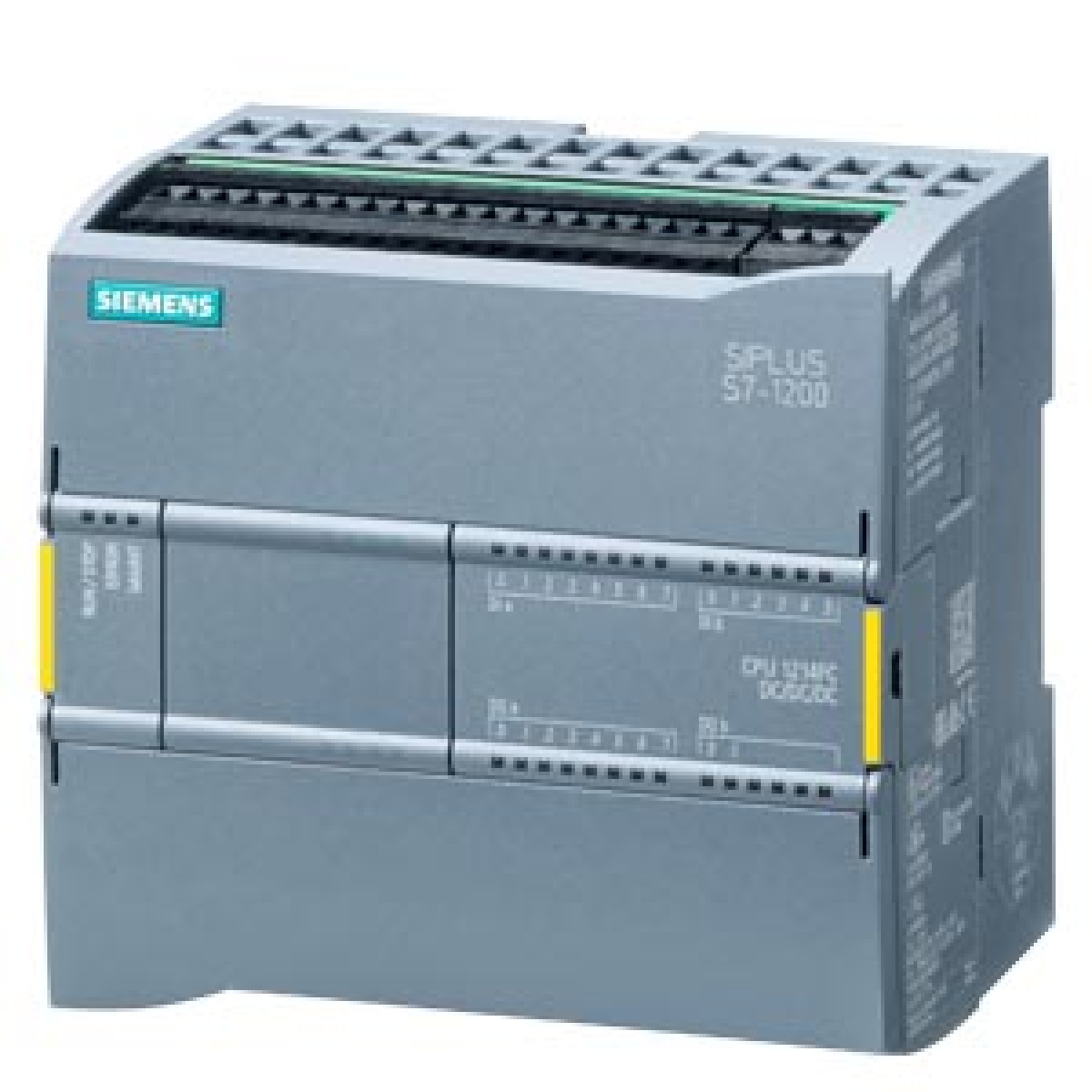

SIPLUS S71200 CPU 1214FC DCDCRelay 25 55 C with conformal coating b
Programmable Logic Controllers and Dialogue Terminals
SIPLUS S71200 CPU 1214FC DCDCRelay 25 55 C with conformal coating b
Manufacturer Ref:
6AG12141HF405XB0
Nortécnica Ref:
EAN:
4047618064716
Description
Technical Information
Attributes
Width
110
Model
Compact
Height
100
Depth
75
With display
No
Suitable for safety functions
Yes
Number of digital inputs
14
Number of digital outputs
10
Number of analogue inputs
2
Number of analogue outputs
0
Voltage type supply voltage
DC
Type of memory
RAM
Memory size
125
Processing time 1K, binary operation
0.085
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
1
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
With optical interface
No
Additional program memory possible
No
Supporting protocol for TCPIP
Yes
Supporting protocol for ASI
Yes
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
Yes
Redundancy
No
Suitable for rail mounting
Yes
Explosion safety category for gas
ATEX gasexprotection Cat 3G
Explosion safety category for dust
None
System accessory
Yes
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of interfaces PROFINET
1
Number of HW-interfaces wireless
0
Front built-in possible
No
Rack-assembly possible
No
Wall mountingdirect mounting
Yes
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Number of relay outputs
10
Max. number of time switches
-
Performance level according to EN ISO 13849-1
Level e
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
Supply voltage AC 60 Hz
-
Supply voltage DC
20.4
Radio standard GPRS
No
Radio standard GSM
No
Mobile communications standard 3G UMTS
No
EF009547
-
SIL according to IEC 61508
3
Supporting protocol for IEC 61850 Ethernet
-
Supporting protocol for DNP3
-
Supporting protocol for IEC 60870
-
Brands
Siemens AG
Technical Sheet
