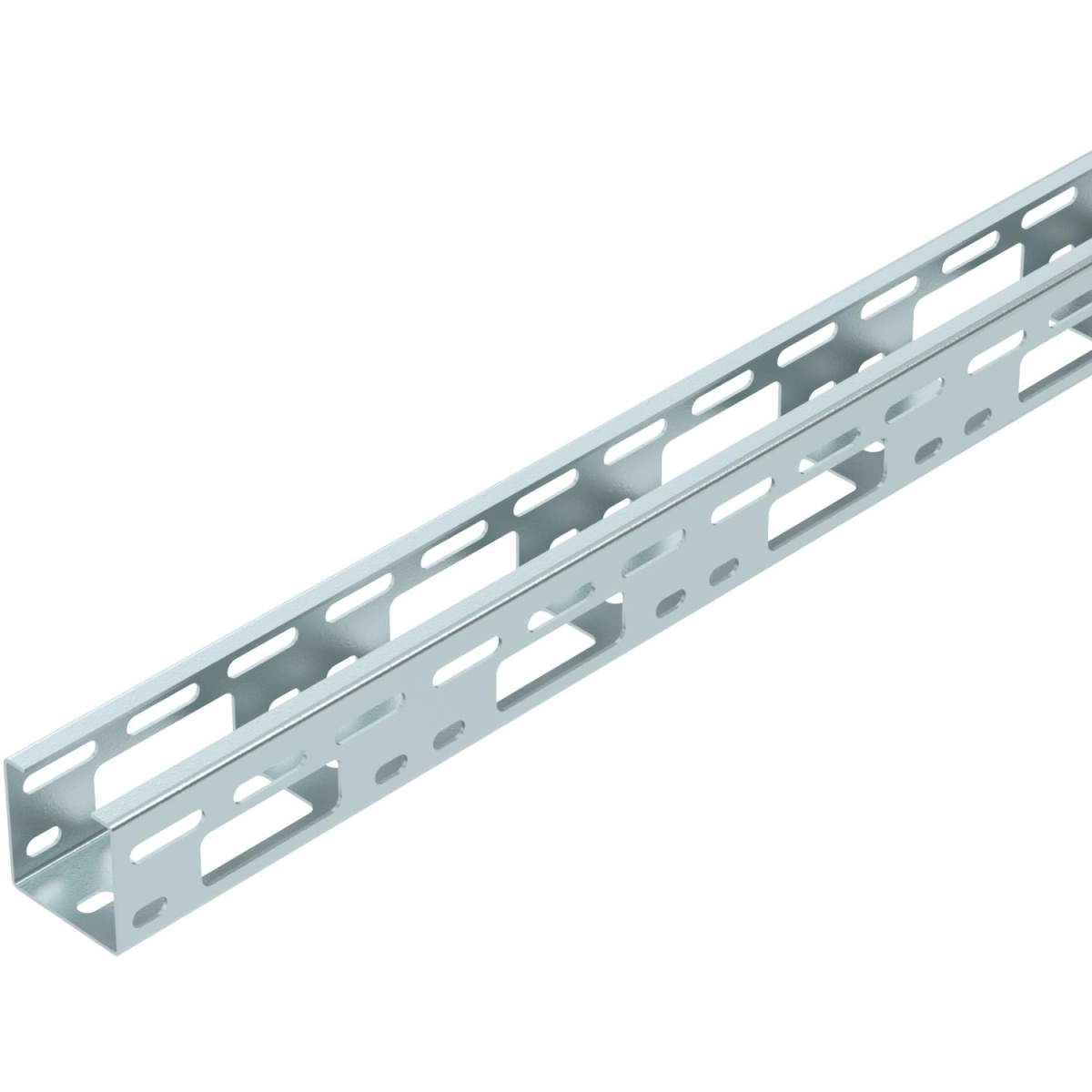

Calha suporte para luminárias 50x50x6000 Aço galvanizado pelo método Sendzimir
Cable Routes
Calha suporte para luminárias 50x50x6000 Aço galvanizado pelo método Sendzimir
Manufacturer Ref:
6075000
Nortécnica Ref:
EAN:
4012196935956
Description
Technical Information
Attributes
Colour
-
Width
50
Model
Without connector
Height
50
RAL-number
-
Surface protection
Continuously galvanised
EF000141
-
Weight
1.36
Material thickness
1.5
Side perforation
-
Material quality
-
Length
6000
Operating temperature
-
-
Material
Steel
Bottom perforation
-
Usable cross section
-
NATO-mounting holes
-
Working length
-
Suitable for circuit integrity
-
With cover
-
Load test type according to IEC 61537
-
Possible support spacing
-
-
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
2500
Safe working load according to IEC 61537 with support spacing 1.5 m
2000
Safe working load according to IEC 61537 with support spacing 2.0 m
1200
Safe working load according to IEC 61537 with support spacing 2.5 m
850
Safe working load according to IEC 61537 with support spacing 3.0 m
500
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
80686
Technical Sheet
