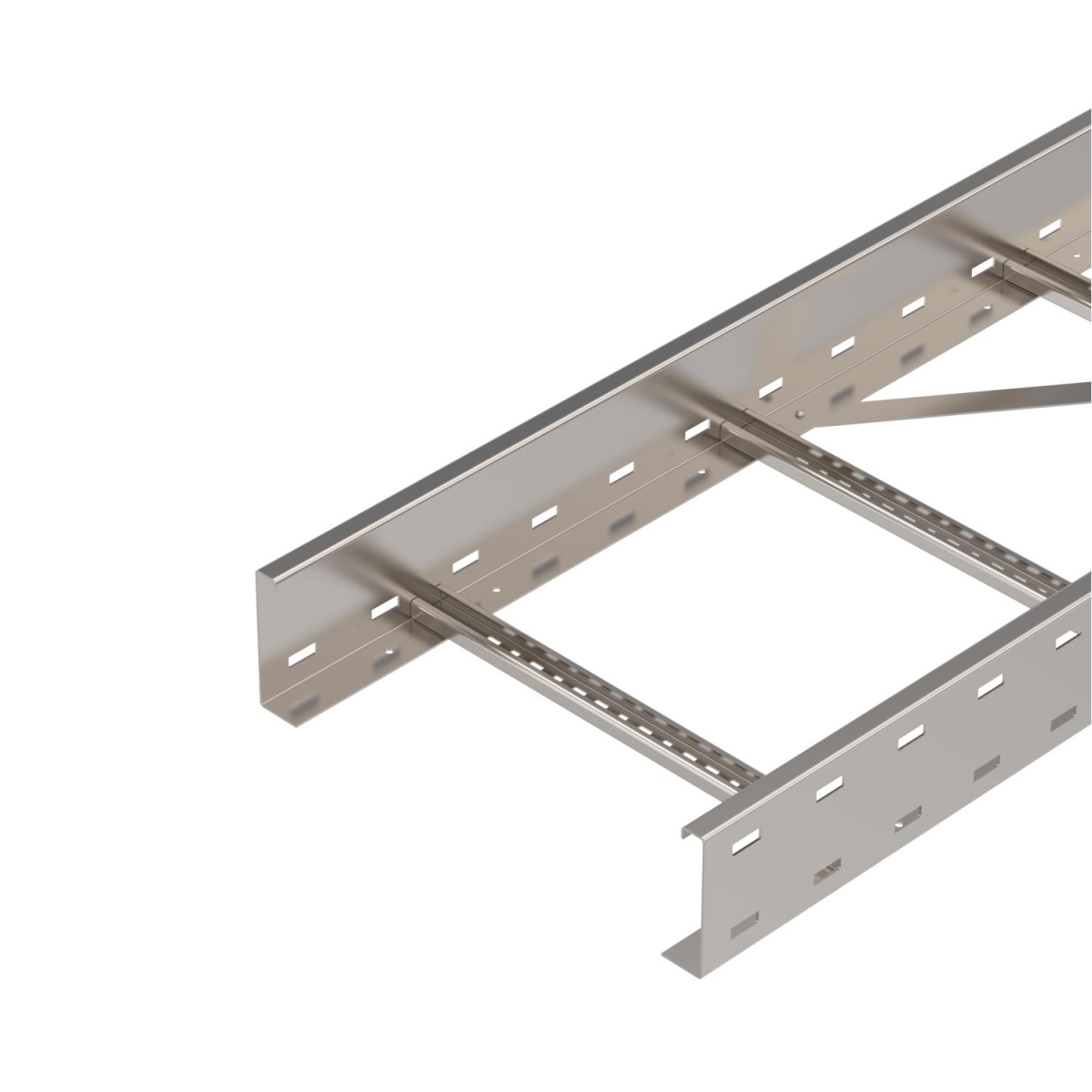

Caminho cabo escada grande vão aba perfurada 110x400x6000 Aço inoxidável A4 1.4571 brilhante, pós-tratamento
Cable Routes
Caminho cabo escada grande vão aba perfurada 110x400x6000 Aço inoxidável A4 1.4571 brilhante, pós-tratamento
Manufacturer Ref:
6311229
Nortécnica Ref:
EAN:
4012195403135
Description
Technical Information
Attributes

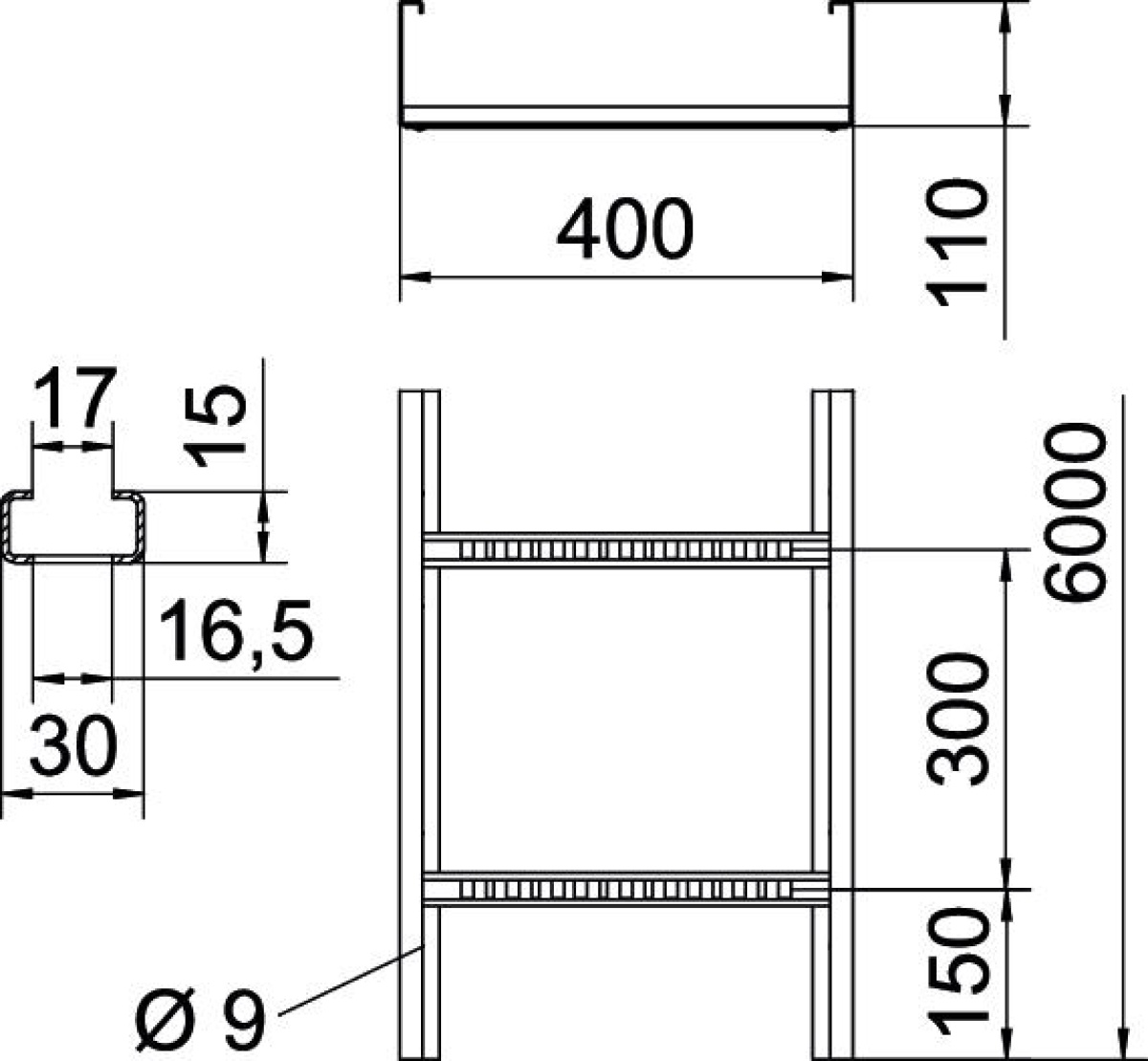

Colour
-
Width
400
Height
110
RAL-number
-
Surface protection
Untreated
Weight
6.06
Type of rung
Imperforated profile
Side perforation
Yes
Material quality
Stainless steel 316 Ti (1.4571)
Length
6000
Operating temperature
-
-
Material
Stainless steel
Usable cross section
37600
Working length
-
Type of side joist
Profile (open)
Suitable for circuit integrity
No
Rung centre spacing
-
Fixation rung
-
Load test type according to IEC 61537
-
Vertical cable ladder
No
Possible support spacing
3
7
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m
-
Safe working load according to IEC 61537 with support spacing 2.0 m
-
Safe working load according to IEC 61537 with support spacing 2.5 m
-
Safe working load according to IEC 61537 with support spacing 3.0 m
2300
Safe working load according to IEC 61537 with support spacing 4.0 m
1600
Safe working load according to IEC 61537 with support spacing 5.0 m
1100
Safe working load according to IEC 61537 with support spacing 6.0 m
800
Safe working load according to IEC 61537 with support spacing 7.0 m
400
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
80686
Technical Sheet
