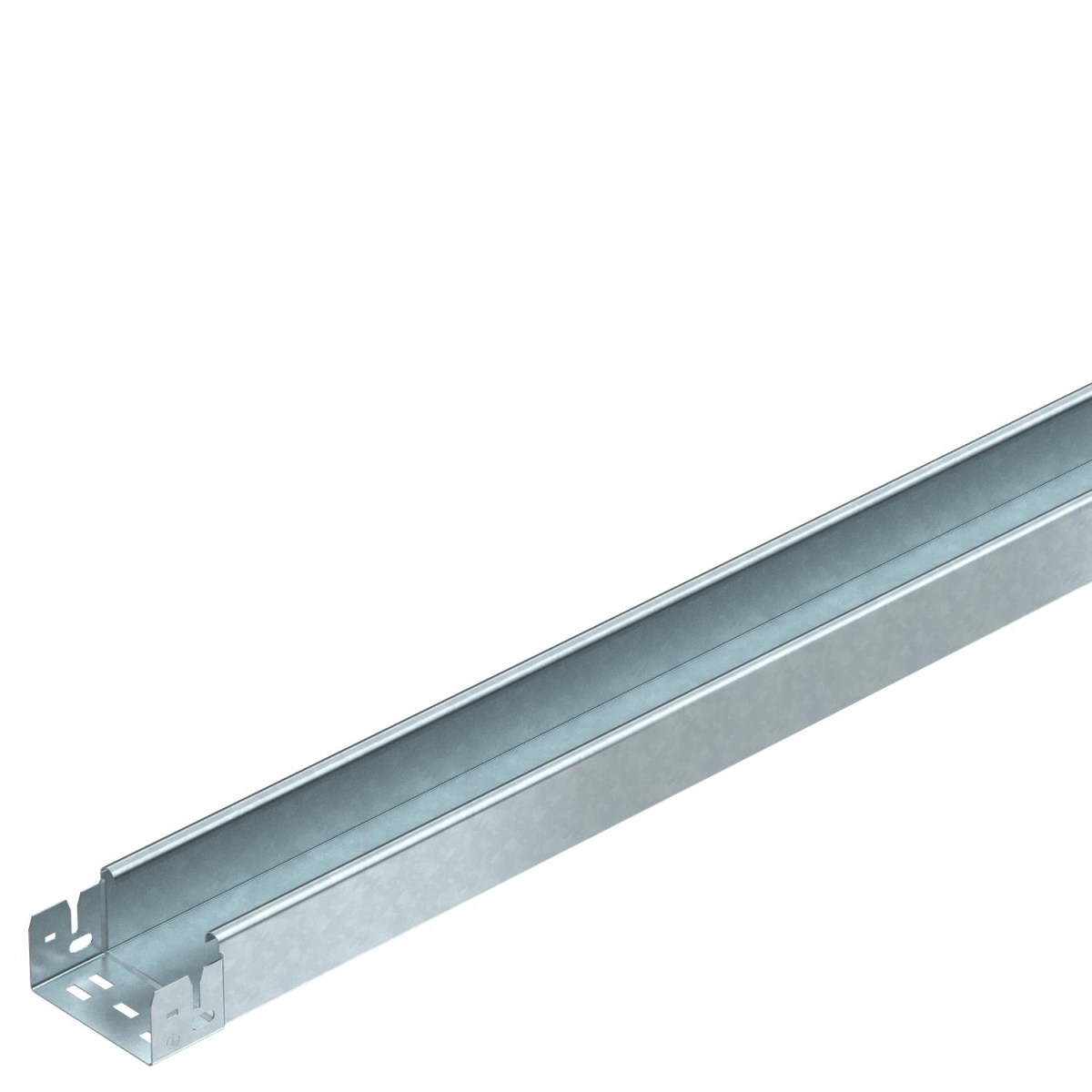

Caminho de cabos chapa MKSMU não perfurado,união de encaixe 60x100x3050 Aço galvanizado por imersão a quente após maquinação
Cable Routes
Caminho de cabos chapa MKSMU não perfurado,união de encaixe 60x100x3050 Aço galvanizado por imersão a quente após maquinação
Manufacturer Ref:
6059248
Nortécnica Ref:
256059248
EAN:
4012195831419
Description
Technical Information
Attributes
Colour
-
Width
100
Model
Integrated connector
Height
60
RAL-number
-
Surface protection
Hot-dip galvanised
EF000141
EV008273
Weight
2.11
Material thickness
1
Side perforation
No
Material quality
-
Length
3050
Operating temperature
-
-
Material
Steel
Bottom perforation
No
Usable cross section
5800
NATO-mounting holes
No
Working length
-
Suitable for circuit integrity
No
With cover
No
Load test type according to IEC 61537
Type II
Possible support spacing
1.5
2.5
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m
1500
Safe working load according to IEC 61537 with support spacing 2.0 m
1000
Safe working load according to IEC 61537 with support spacing 2.5 m
500
Safe working load according to IEC 61537 with support spacing 3.0 m
-
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
80686
Technical Sheet
