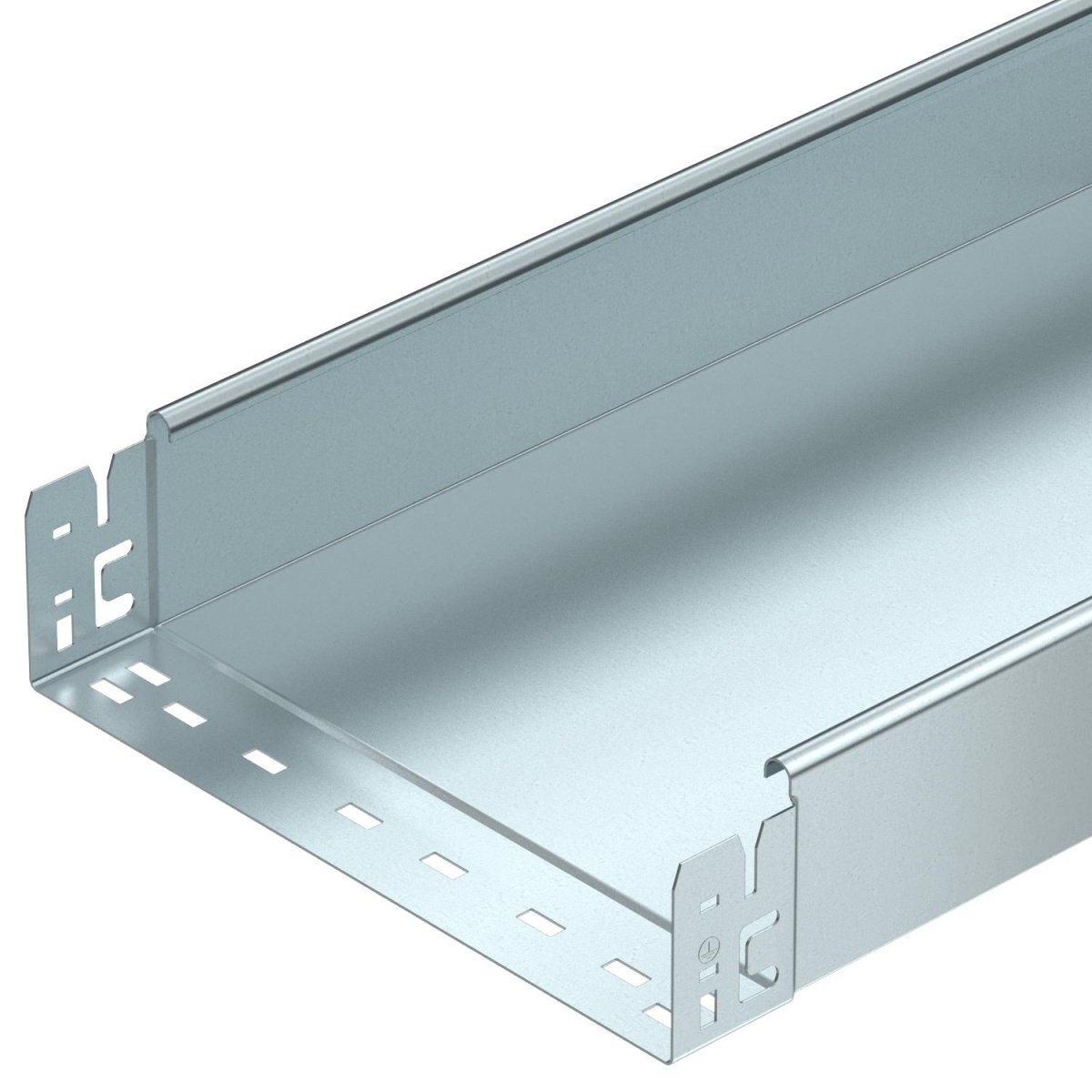

Caminho de cabos chapa SKSMU não perfurado,união de encaixe 85x400x3050 Aço galvanizado pelo método Sendzimir
Cable Routes
Caminho de cabos chapa SKSMU não perfurado,união de encaixe 85x400x3050 Aço galvanizado pelo método Sendzimir
Manufacturer Ref:
6059770
Nortécnica Ref:
EAN:
4012195833512
Description
Technical Information
Attributes
Colour
-
Width
400
Model
Integrated connector
Height
85
RAL-number
-
Surface protection
Continuously galvanised
EF000141
EV008273
Weight
6.99
Material thickness
1.5
Side perforation
No
Material quality
-
Length
3050
Operating temperature
-
-
Material
Steel
Bottom perforation
No
Usable cross section
33800
NATO-mounting holes
No
Working length
-
Suitable for circuit integrity
No
With cover
No
Load test type according to IEC 61537
Type II
Possible support spacing
1.5
3
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m
2800
Safe working load according to IEC 61537 with support spacing 2.0 m
2250
Safe working load according to IEC 61537 with support spacing 2.5 m
1500
Safe working load according to IEC 61537 with support spacing 3.0 m
750
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
