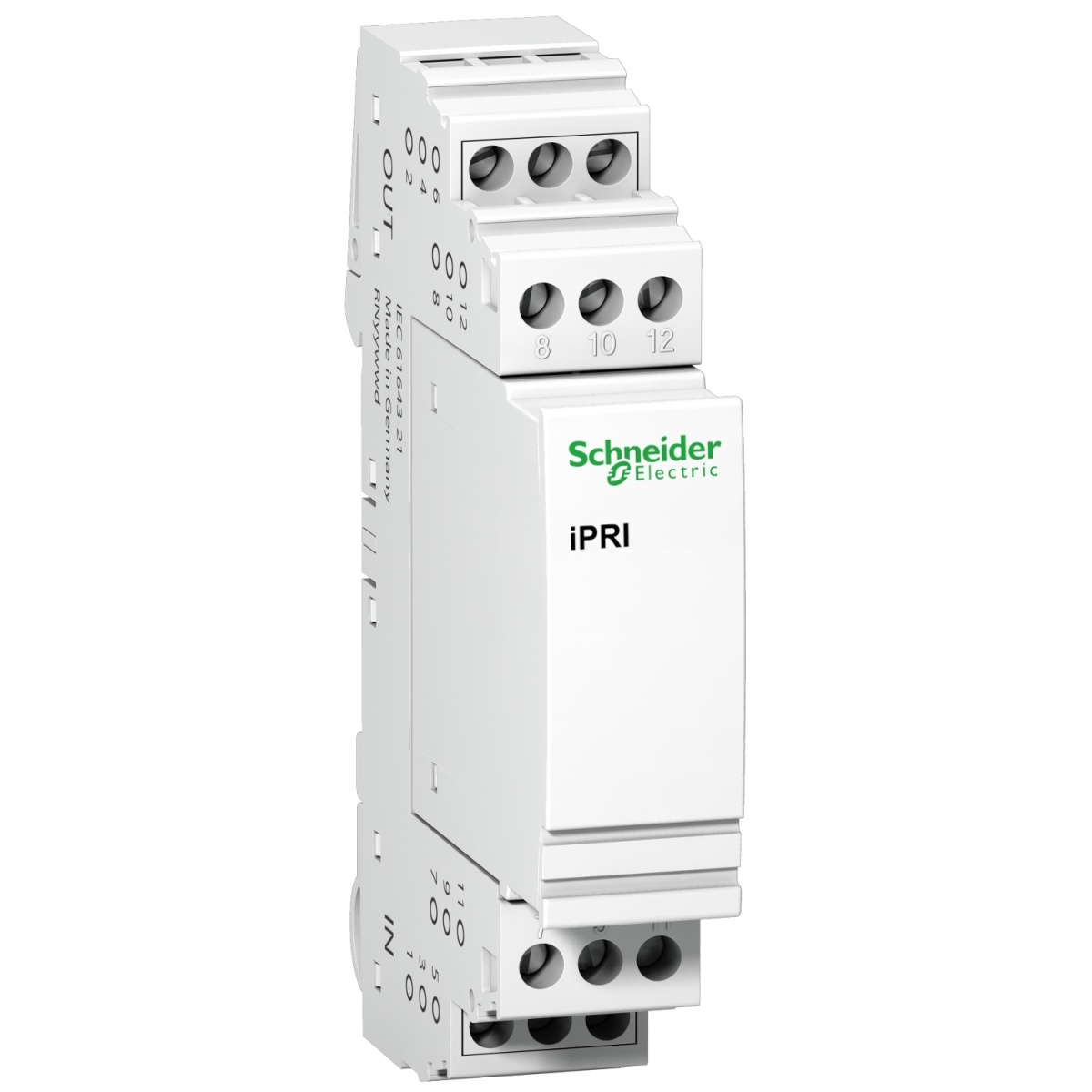

Descarregador de sobretensões iPRI 12 48V
Surge Arresters
Descarregador de sobretensões iPRI 12 48V
Manufacturer Ref:
A9L16339
Nortécnica Ref:
EAN:
3606480383526
Description
Technical Information
Attributes
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Screw terminal
Frequency
-
-
Lightning impulse current 10350 µs
-
With remote signalling contact
No
Number of conductors without earthing
4
Limiting frequency
0.05
Explosion-tested version
No
Max. continuous voltage AC
37
Nominal discharge surge current 820
10
Nominal load current
0.3
Voltage protection level corecore
70
Voltage protection level coreearth
70
Signalling at the device
None
Max. continuous voltage DC
53
Degree of protection IP
IP20
Voltage protection level coresignal ground
53
Voltage protection level signal groundprotective ground
37
Nominal voltage AC
-
-
Nominal voltage DC
48
48
Pro-active thermo-control
Yes
Assembly width
18
Signal disconnection
No
Earthing via
Separate conductor
Brands
Schneider
