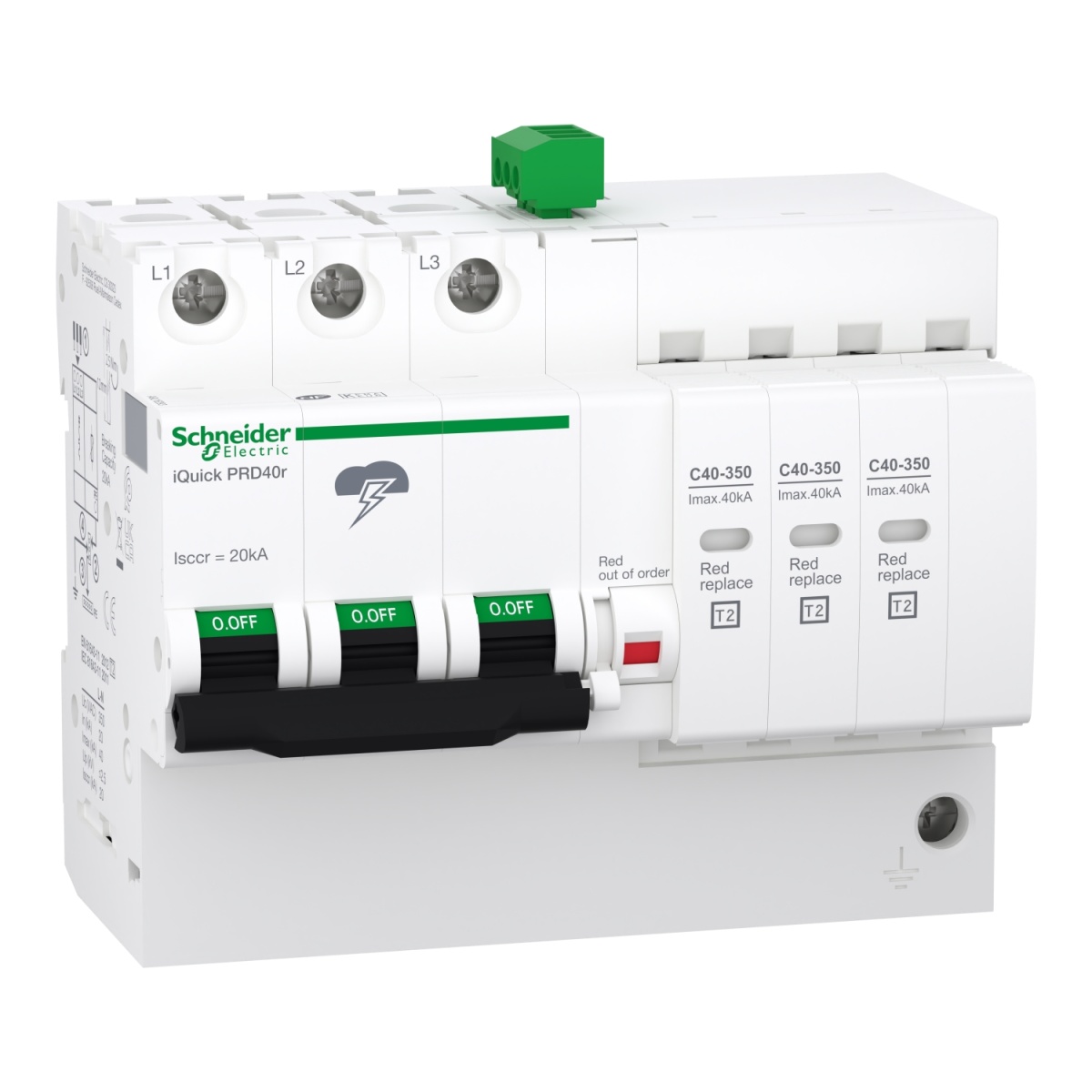

Descarregador de sobretensões Quick PRD 40r 3P
Surge Arresters
Descarregador de sobretensões Quick PRD 40r 3P
Manufacturer Ref:
A9L16293
Nortécnica Ref:
EAN:
3606480387050
Description
Technical Information
Attributes
Mounting method
DIN rail (top hat rail) 35 mm
With remote signalling contact
Yes
Number of conductors without earthing
3
Construction size
Other
Voltage protection level
2
Max. continuous voltage AC
350
Nominal discharge surge current 820
20
EF004220
400
EF004221
-
Category type 2
Yes
Voltage protection level L-N
2.5
Signalling at the device
Optical
Max. continuous voltage DC
-
Degree of protection IP
IP20
Max. PV-voltage
-
Voltage protection level N-PE
2
Integrated backup fuse
No
Max. conductor cross section solid solid, stranded
35
Max. conductor cross section flexible fine-strand
35
System configuration DC
No
System configuration IT
Yes
System configuration TN
No
System configuration TN-C
Yes
System configuration TN-S
No
System configuration TT
No
System configuration other
No
System configuration TN-C-S
No
Max. discharge surge current 820
40
Short-circuit breaking capacity Isccr
20
Max. overcurrent protection device, parallel connection fuse
-
Max. overcurrent protection device, series connection fuse
-
Integrated short-circuit protection
Yes
Integrated short-circuit protection selective to fuse gG
-
Leakage-current free
No
Brands
Schneider
