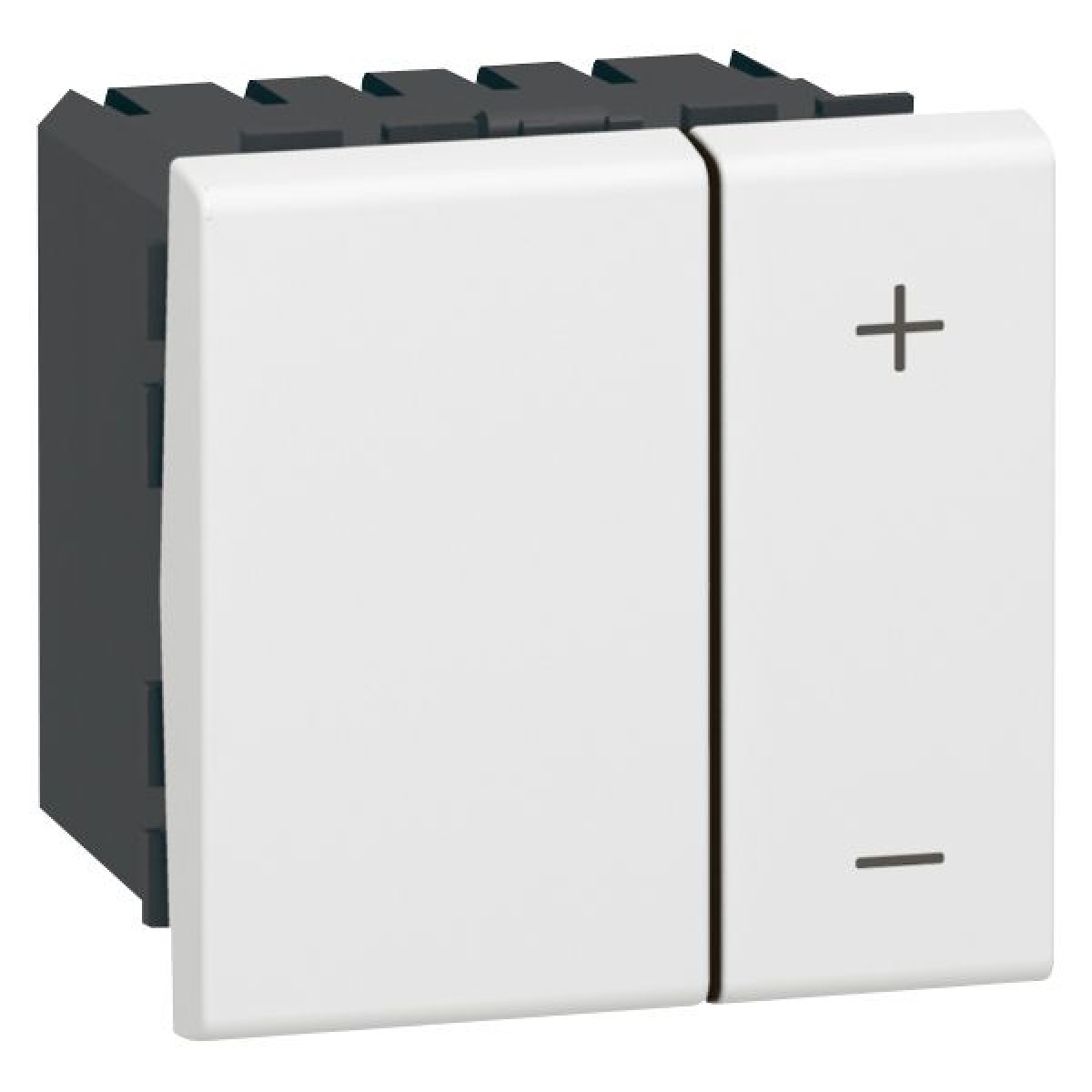

Mosaic - Variador Basic - 600 W VA - Comando por Teclas - 2 módulos - Branco
Switches, Dimmers, and Buttons
Mosaic - Variador Basic - 600 W VA - Comando por Teclas - 2 módulos - Branco
Manufacturer Ref:
078405
Nortécnica Ref:
03078405
EAN:
3245060784058
Description
Technical Information
Attributes
Mounting method
Module frame
Assembly arrangement
Modular device for domestic switching devices
Method of operation
-
Colour
White
Halogen free
Yes
Number of units
-
Connection type
Screwed terminal
Surface protection
Lacquered
Power consumption
-
Frequency
47
63
Material quality
Thermoplastic
Type of load
Inductive load
Material
Plastic
Type of fastening
Mounting with screw
Light value memory
Yes
Substation input
Yes
RAL-number similar
9003
Serial dimmer
No
Applicable with movement sensor
No
Applicable with transmission button
No
Applicable with infrared button
No
Applicable with presence indicator
No
Applicable with button
Yes
Applicable with time switchtimer
No
Impact strength
IK02
Nominal voltage
240
240
Control voltage
90
254
Transparent
No
Surface finishing
Glossy
Suitable for degree of protection IP
IP40
Core cross section
1.5
2.5
Device width
45
Device height
45
Device depth
33
Number of modules module system
2
IFTTT support available
No
Dimming phase cut-off trailing edge
-
Dimming phase cut-on leading edge
-
Min. depth of built-in installation box
-
App control via Bluetooth
No
Nominal power resistive load
40
600
Nominal power inductive load
-
-
Nominal power capacitive load
-
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
-
Min. brightness controllable
-
Brands
Legrand
