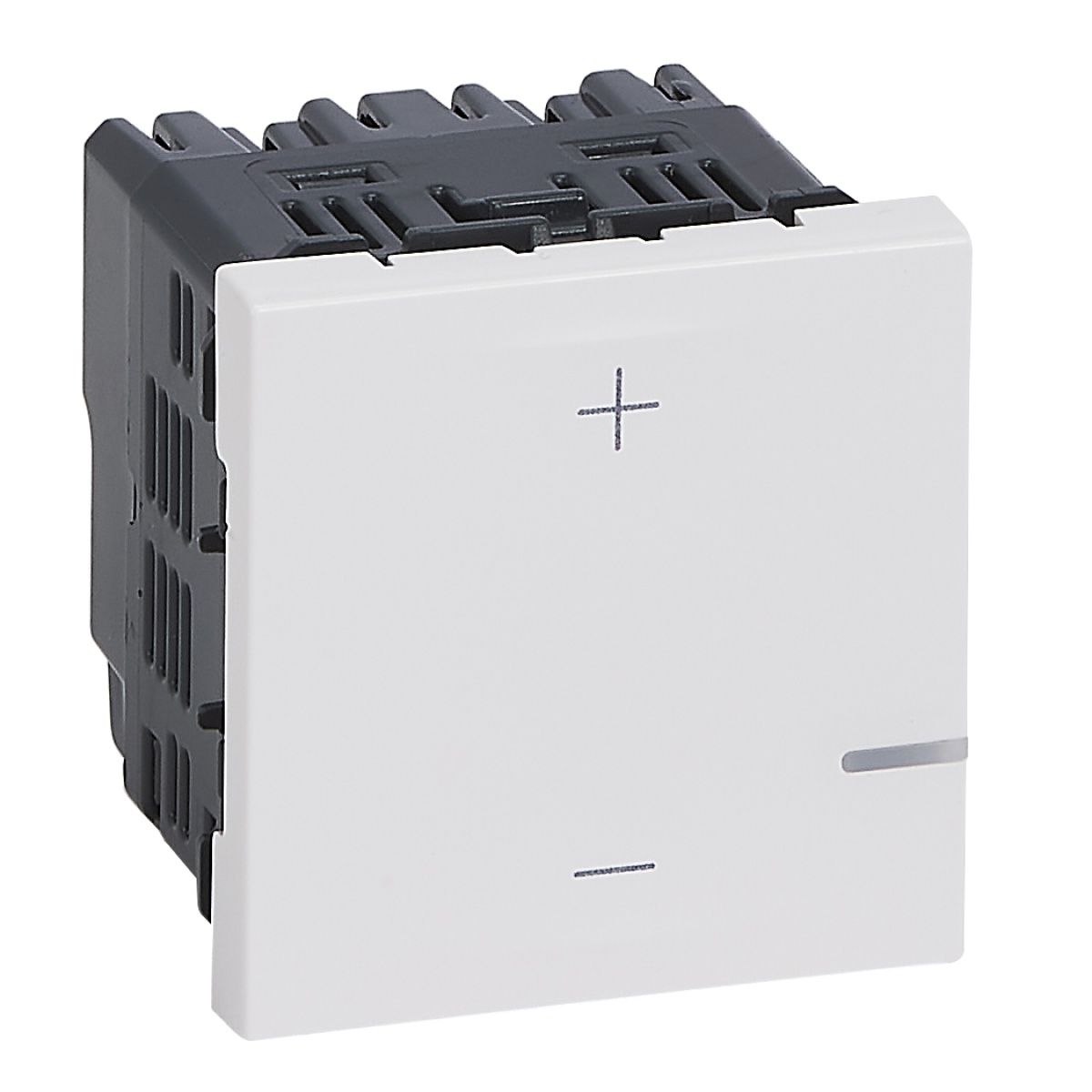

MOSAIC VAR 2FIOS 125W BRA
Switches, Dimmers, and Buttons
MOSAIC VAR 2FIOS 125W BRA
Manufacturer Ref:
078407A
Nortécnica Ref:
EAN:
3414972365451
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Assembly arrangement
Basic element with central cover plate
Method of operation
Push button
Colour
White
Halogen free
Yes
Number of units
-
Connection type
Screwed terminal
Surface protection
Untreated
Power consumption
0.3
Frequency
50
60
Material quality
Thermoplastic
Type of load
Universal and LED Retrofit
Material
Plastic
Type of fastening
Click in mounting
Light value memory
Yes
Substation input
Yes
RAL-number similar
9003
Serial dimmer
No
Applicable with movement sensor
No
Applicable with transmission button
No
Applicable with infrared button
No
Applicable with presence indicator
No
Applicable with button
Yes
Applicable with time switchtimer
No
Impact strength
IK04
Nominal voltage
110
230
Control voltage
110
230
Transparent
No
Surface finishing
Glossy
Suitable for degree of protection IP
IP20
Core cross section
1.5
2.5
Device width
45
Device height
45
Device depth
45
Number of modules module system
2
IFTTT support available
No
Dimming phase cut-off trailing edge
Yes
Dimming phase cut-on leading edge
Yes
Min. depth of built-in installation box
40
App control via Bluetooth
No
Nominal power resistive load
3
125
Nominal power inductive load
3
125
Nominal power capacitive load
3
125
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
125
Min. brightness controllable
Yes
Brands
Legrand
Technical Sheet
