Emergency

ILN1ZTLED

Manufacturer Ref: 7TCA091160R0004

Nortécnica Ref:

EAN: 8713812745466

Login to see prices and stocks

Description

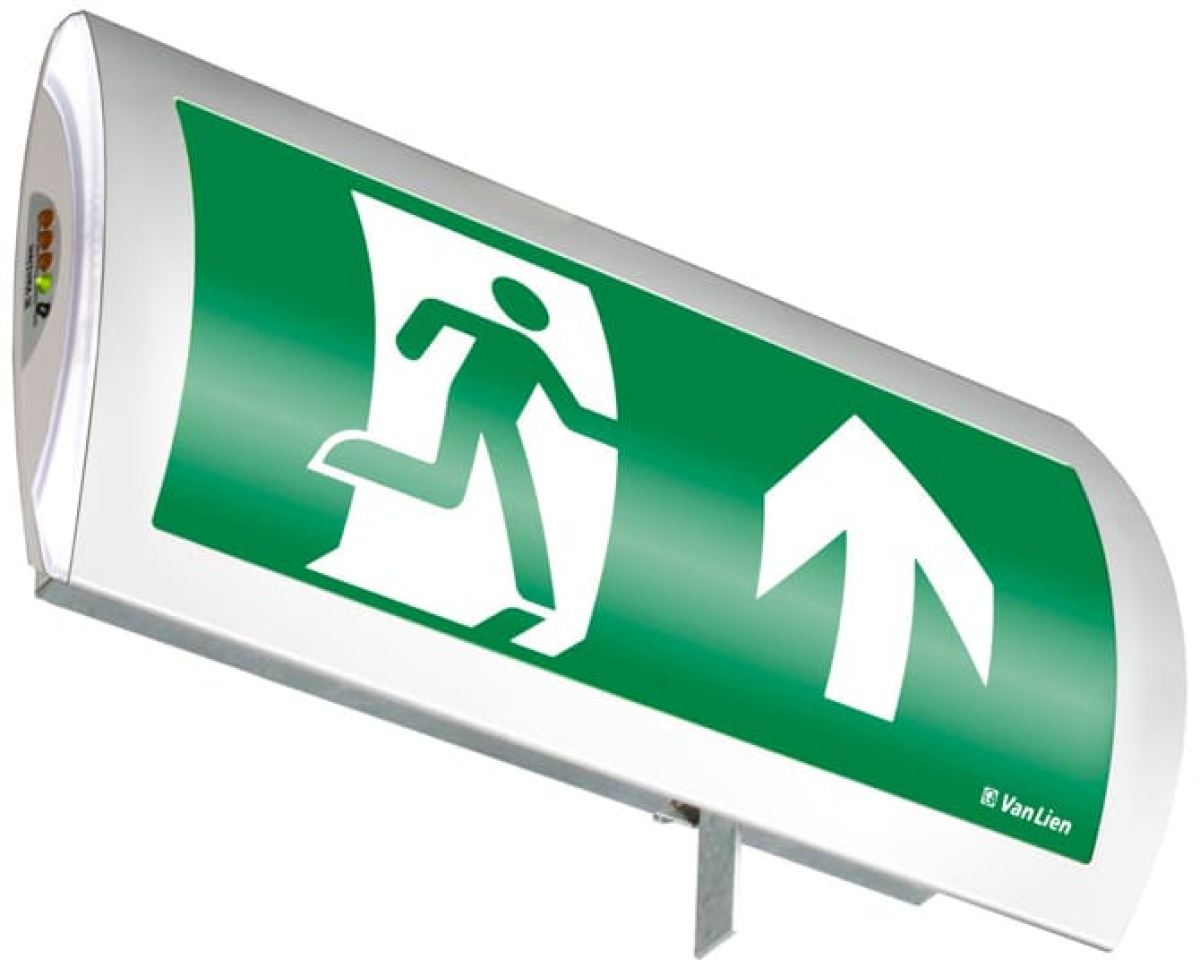

ILN1ZTLED

Technical Information

Attributes

Mounting method

Builtin

EF000004

I

Width

167

Outer diameter

0

Function

Escape route signage

Lamp holder

-

Conductor cross section

2.5

Connection type

Screw connection

Housing colour

White

Voltage type

AC

EF000233

EV009693

Type of control gear

LED operating device currentcontrolled

With remote control

No

Built-in width

120

Built-in diameter

-

Suitable for labelling type

Insert sheetplate

Type of indicator

Singlesided

Number of poles

4

Length

364

Heightdepth

46

Housing material

Plastic

Lamp type

LED not exchangeable

Number of lighting heads

1

Built-in length

292

Material cover

Plastic transparent

Impact strength

-

Battery technology

NiCd

Nominal voltage

220

230

Degree of protection IP

IP20

With light source

Yes

Luminaire with limited surface temperature, sign "D according to EN 60598-2-24

-

Suitable for number of light sources

2

With remote switch connection

No

EF008091

EV009635

Recognition distance

25

Nominal current

-

-

Colour temperature

6350

6350

Max. system power

5.1

EF009349

90.2

Constant light output CLO

No

With pictogram

Yes

Type of wiring

Ending

Rated lifetime L70B50 at 25 C

-

Luminous flux in standby mode

-

Degree of protection NEMA

-

Rated ambient temperature according to IEC 62722-2-1

0

35

Light distributor

Refractor lens

RAL-number housing

-

Nominal operation time

1

1

Max. number of luminaires per miniature circuit breaker C16 MCB

-

Max. number of luminaires per miniature circuit breaker B16 MCB

-

Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq

-

Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq

-

Failure rate at median useful life of 50,000 h at 25 C ambient tq

-

Failure rate at median useful life of 100,000 h at 25 C ambient tq

-

Flickering value Pst LM

-

Stroboscope effect value SVM

-

Exchangeable control gear

Yes

Energy efficiency class of the light source according to EU regulation 20192015

-

Suitable for standby switching

-

Suitable for continuous circuit

-

Built-in heightdepth

43

Power factor

0.52

Brands

VAN LIEN
