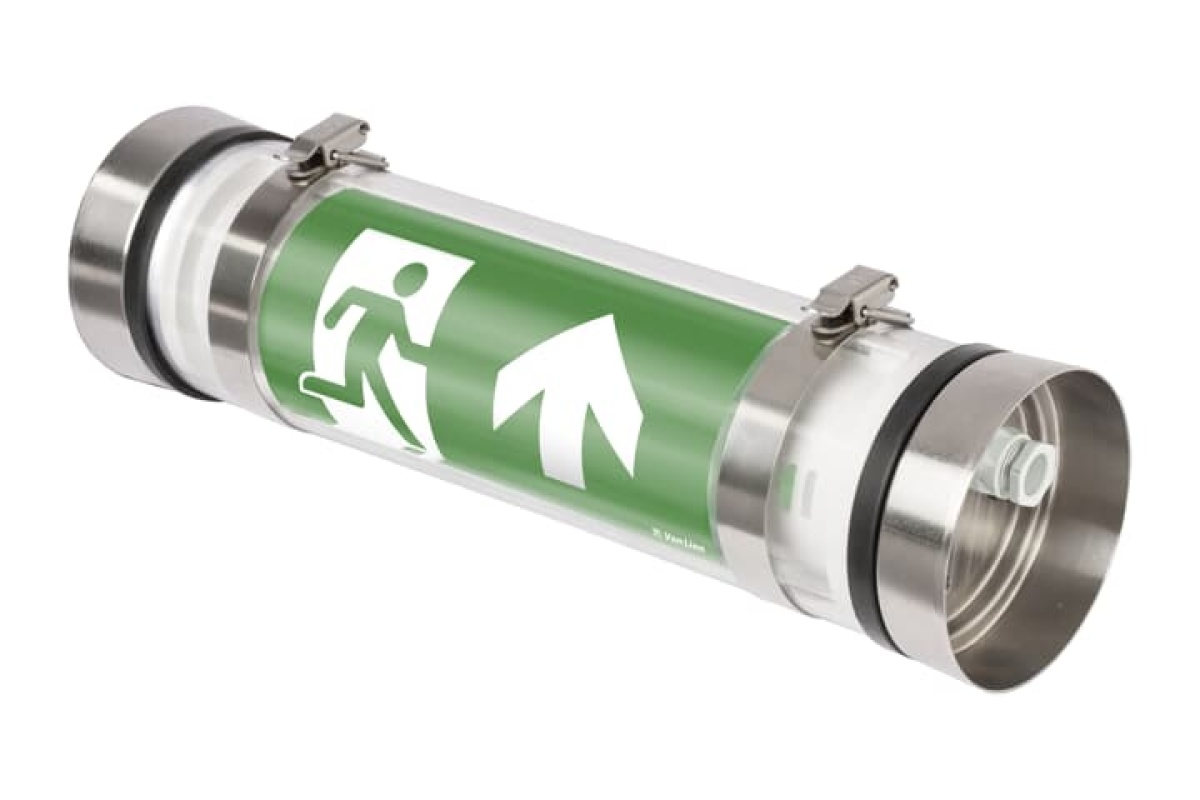

IND 2X4A3ZTLEDDZ
Emergency
IND 2X4A3ZTLEDDZ
Manufacturer Ref:
7TCA091720R0165
Nortécnica Ref:
EAN:
5415022466195
Description
Technical Information
Attributes
Mounting method
Wall surface mountingceiling surface mounting
EF000004
II
Width
114
Outer diameter
108
Function
Escape route lightingsignage
Lamp holder
-
Conductor cross section
2.5
Connection type
Other
Housing colour
Stainless steel
Voltage type
AC
EF000233
EV009693
Type of control gear
LED operating device currentcontrolled
With remote control
No
Built-in width
-
Built-in diameter
-
Suitable for labelling type
Insert sheetplate
Type of indicator
Singledoublesided
Number of poles
6
Length
398
Heightdepth
114
Housing material
Stainless steel
Lamp type
LED not exchangeable
Number of lighting heads
1
Built-in length
-
Material cover
Plastic transparent
Impact strength
IK10
Battery technology
NiMH
Nominal voltage
220
230
Degree of protection IP
IP68
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
-
Suitable for number of light sources
2
With remote switch connection
No
EF008091
EV009635
Recognition distance
17
Nominal current
-
-
Colour temperature
6000
6000
Max. system power
7
EF009349
400
Constant light output CLO
-
With pictogram
No
Type of wiring
Suitable for loopthrough wiring
Rated lifetime L70B50 at 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
0
40
Light distributor
Diffuser lensopticpanel
RAL-number housing
-
Nominal operation time
-
-
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
-
Suitable for continuous circuit
-
Built-in heightdepth
-
Power factor
0.5
Brands
VAN LIEN
