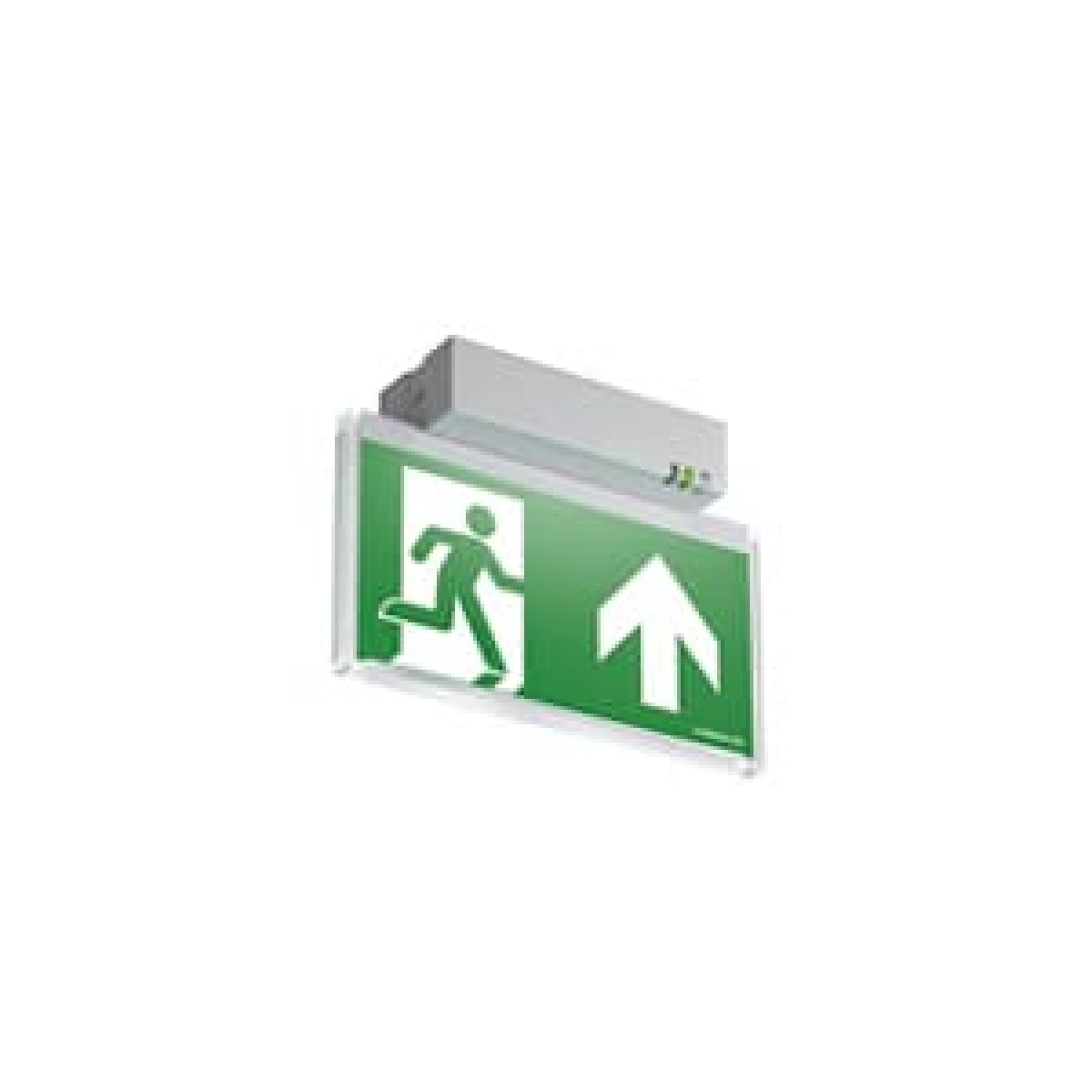

LED SIGN M3 22M
Emergency
LED SIGN M3 22M
Manufacturer Ref:
7TCA091160R0359
Nortécnica Ref:
EAN:
5415022327229
Description
Technical Information
Attributes
Mounting method
Wall surface mountingceiling surface mounting
EF000004
II
Width
66
Outer diameter
-
Function
Escape route signage
Lamp holder
-
Conductor cross section
-
Connection type
-
Housing colour
Aluminium
Voltage type
AC
EF000233
EV009693
Type of control gear
LED operating device currentcontrolled
With remote control
-
Built-in width
-
Built-in diameter
-
Suitable for labelling type
Insert sheetplate
Type of indicator
Singledoublesided
Number of poles
-
Length
235
Heightdepth
172
Housing material
Aluminium
Lamp type
LED not exchangeable
Number of lighting heads
1
Built-in length
-
Material cover
Plastic transparent
Impact strength
-
Battery technology
NiMH
Nominal voltage
220
240
Degree of protection IP
IP40
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
-
Suitable for number of light sources
-
With remote switch connection
Yes
EF008091
EV009635
Recognition distance
22
Nominal current
-
-
Colour temperature
5000
5000
Max. system power
4
EF009349
-
Constant light output CLO
-
With pictogram
Yes
Type of wiring
-
Rated lifetime L70B50 at 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
5
35
Light distributor
-
RAL-number housing
-
Nominal operation time
3
3
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
-
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
-
Suitable for continuous circuit
-
Built-in heightdepth
-
Power factor
0.9
Brands
EMERGILITE UK
