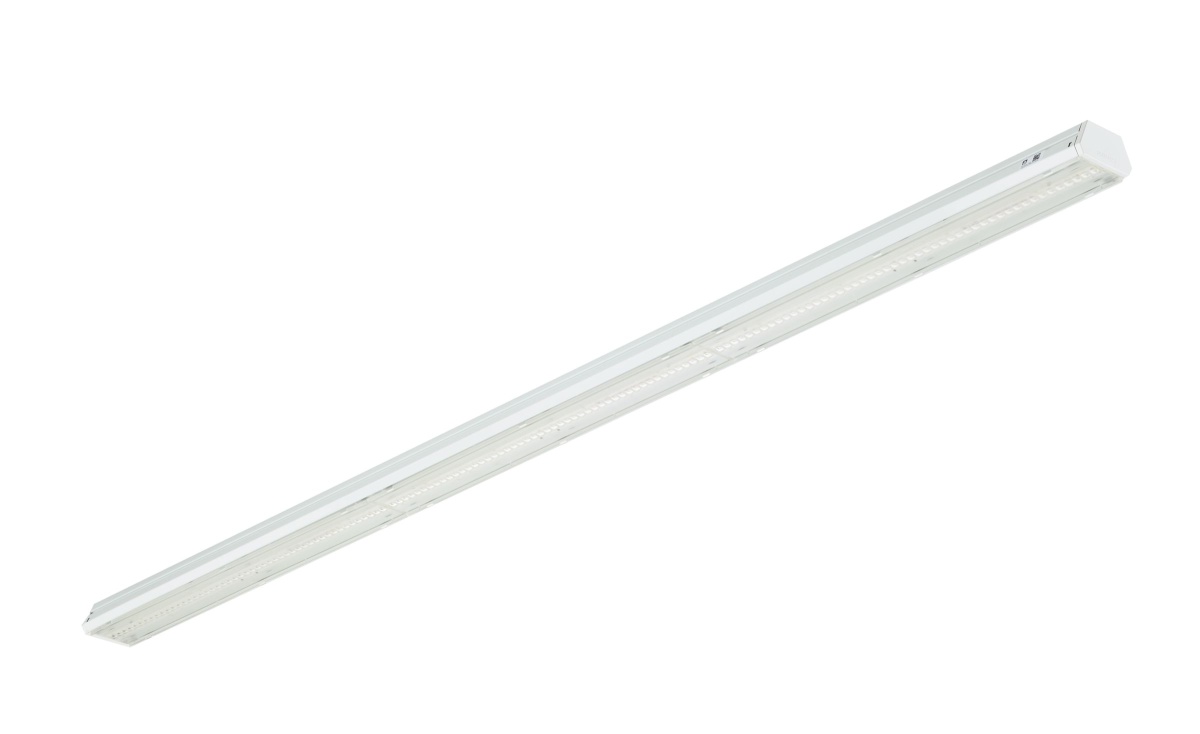

LL217X 45S840 1x PSU BV WB
Industry
LL217X 45S840 1x PSU BV WB
Manufacturer Ref:
61796400
Nortécnica Ref:
EAN:
8719514617964
Description
Technical Information
Attributes
EF000004
I

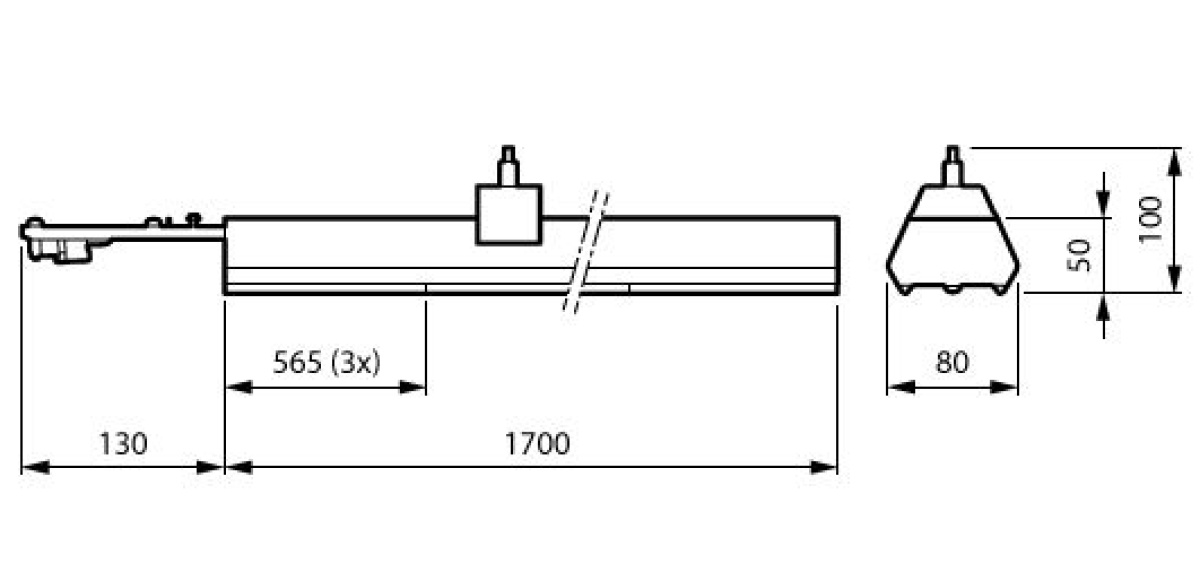

Width
80
Reflector
None
Lamp holder
None
Conductor cross section
0.5
Connection type
Push-in clamp
Housing colour
White
Voltage type
AC
Suitable for lamp power
-
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Number of poles
3
Length
1700
Heightdepth
50
Housing material
Steel
Lamp type
LED not exchangeable
Suitable for emergency lighting
No
Light outlet
Direct
Light distribution
Symmetric
Nominal voltage
220
240
Emergency power supply integrated
No
Degree of protection IP
IP20
With light source
Yes
Suitable for number of light sources
3
With control gear
Yes
Beam angle
80 - Extreme wide beam
Nominal current
192
192
Colour temperature
4000
4000
Max. system power
28
EF009349
4500
Colour of light
White
Constant light output CLO
No
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
-
EF011871
-
Colour consistency McAdam ellipse
SDCM3
EF011947
20
Rated ambient temperature according to IEC 62722-2-1
25
25
Filament test according to IEC 60695-2-11
850 C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Diffuser lensopticpanel
EF012172
161
Dimming DSI
No
Operation by Bluetooth
No
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
85
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
75
Failure rate at median useful life of 50,000 h at 25 C ambient tq
5
Failure rate at median useful life of 100,000 h at 25 C ambient tq
10
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
D
Power factor
0.95
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
Yes
Brands
PHILIPS
Technical Sheet
