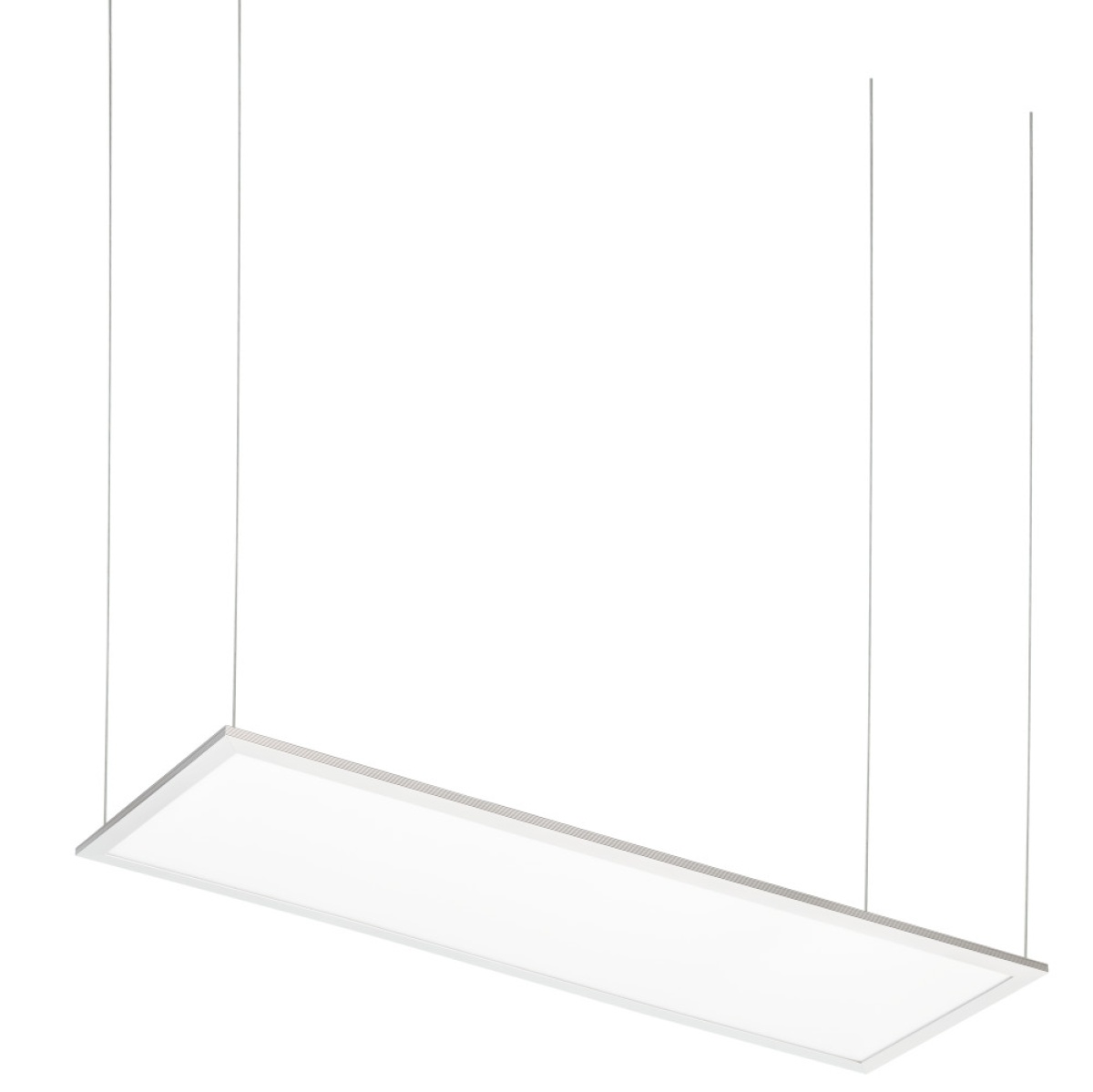

BEG 93667 PL2-30120D-LED-AG-DALI-TW luminária LED
Interior
BEG 93667 PL2-30120D-LED-AG-DALI-TW luminária LED
Manufacturer Ref:
93667
Nortécnica Ref:
EAN:
4007529936670
Description
Technical Information
Attributes
Protection class according to IEC 61140
II

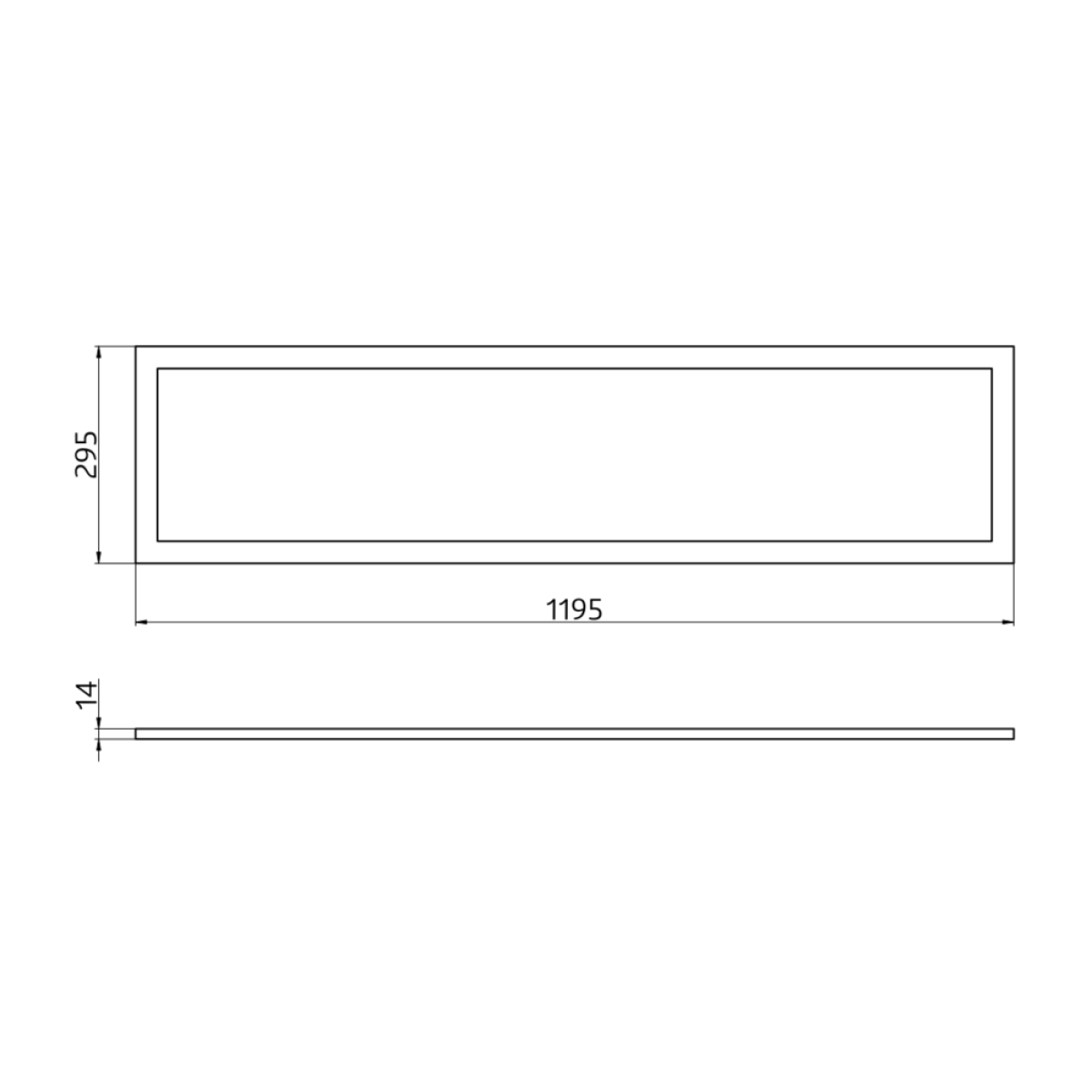

Largura
1195.0
Reflector
Lamp holder
Secção transversal do condutor
1.5
Connection type
Housing colour
White
Voltage type
AC
Suitable for lamp power
-
Type of grid
Type of control gear
Índice de restituição de cor CRI
17283
Diâmetro
-
Número de polos
-
Comprimento
295.0
Alturaprofundidade
14.0
Housing material
Aluminium
Lamp type
LED not exchangeable
Direct-indirect proportion separately controllable
No
Suitable for light line configuration
No
Suitable for emergency lighting
No
Light outlet
Direct/indirect
Light distribution
Material cover
Plastic, opal
Pendant length
-
Impact strength
Nominal voltage
200
240
EF005138
-
Degree of protection IP
IP20
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
-
With control gear
Yes
With suspension
Yes
Suitable for workplace according to EN 12464-1
No
Nominal current
-
Colour temperature
2700.0
6500.0
Potência máx. do sistema
70
EF009349
-
Colour of light
White
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Vida útil nominal L70B50 a 25 C
-
EF011871
60000
Colour consistency McAdam ellipse
Degree of protection NEMA
Filament test according to IEC 60695-2-11
EF012150
-
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming potentiometer integrated
No
EF012157
false
EF012158
false
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
EF012165
false
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
false
Light distributor
Diffuser lens/optic/panel
EF012172
93.0
Dimming DSI
No
EF012487
-
EF012488
-
EF012489
-
EF012490
-
Fator de brilho unificado UGR
-
Operation by Bluetooth
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Número max. de luminárias por disjuntor C16
Número max. de luminárias por disjuntor B16
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 75 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 75 000 h, temperatura 25 C tq
-
Dimming DALI-2
No
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Colour of light adjustable
Luminous flux adjustable
Beam angle adjustable
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
Fator de potência
0.91
Brands
80071
Technical Sheet
