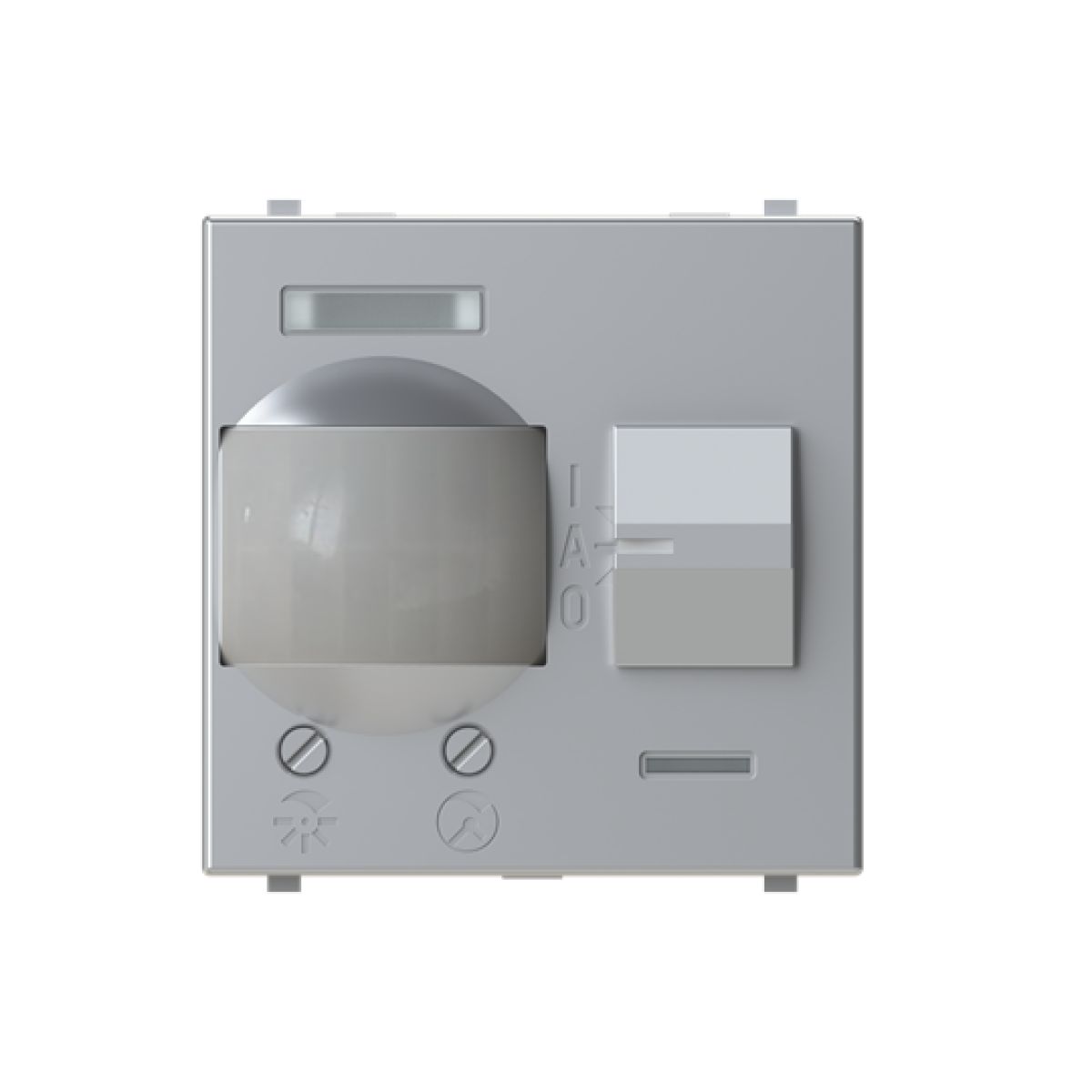

110 motion sensor 2M Silver Movement sensor Silver Zenit
Motion and Presence Detectors
110 motion sensor 2M Silver Movement sensor Silver Zenit
Manufacturer Ref:
2CLA224100N1301
Nortécnica Ref:
EAN:
8427238074719
Description
Technical Information
Attributes
Mounting method
Flushmounted
Colour
Silver
Width
44
Model
Movement sensor
Halogen free
Yes
Height
44
Depth
40
Connection type
-
Surface protection
Decor
Creep-under protection
Yes
Voltage type
AC
Switching-on delay
10
Switch-off delay
600
Built-in depth
32
Frequency
-
-
With remote control
No
Diameter
-
Suitable for wall mounting
Yes
Built-in width
-
Built-in diameter
-
Staircase light controller
Yes
Bridging switch
Yes
Suitable for wireless transmission
No
Material quality
Thermoplastic
Max. reach frontally
5
Max. reach sideways
5
Max. switching power
1800
EF001731
-10
40
Max. starting current
8
Material
Plastic
Response value sensitivity adjustable
No
Connection cable length
-
Dim function with dimmer basic element
No
Response value luminosity
3
1000
Suitable for C-load
-
Diameter reach on floor
5
Remote operation
No
HVAC-control
No
Constant light control
No
Substation input
No
RAL-number similar
9010
With signal unit
No
Control current
1800
Teach-function for response value luminosity
No
Networkable
Yes
Forced switch off
Yes
Scan angle
110
Built-in length
-
Impact strength
-
With connection cable
-
Nominal voltage
230
230
Degree of protection IP
IP20
With alarm function
No
Transparent
No
Animal zone
No
Surface finishing
Matt
Detection angle horizontal
-
-
Min. switch-on time
10
Max. duty cycle
10
Response value luminosity adjustable
Yes
Optimum mounting height
1.2
Pivoting range sensor, horizontal
0
0
Pivoting range sensor, vertical
0
0
Number of switching zones
3
With DALI interface
No
IFTTT support available
No
Forced switch on
Yes
Min. starting current
3
Min. depth of built-in installation box
32
Max. presence range
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
-
Background monitoring
-
With acoustic sensor
-
EF020270
EV007611
Suitable for ceiling mounting
No
Anti-bacterial treatment
No
Brands
ABB
Technical Sheet
