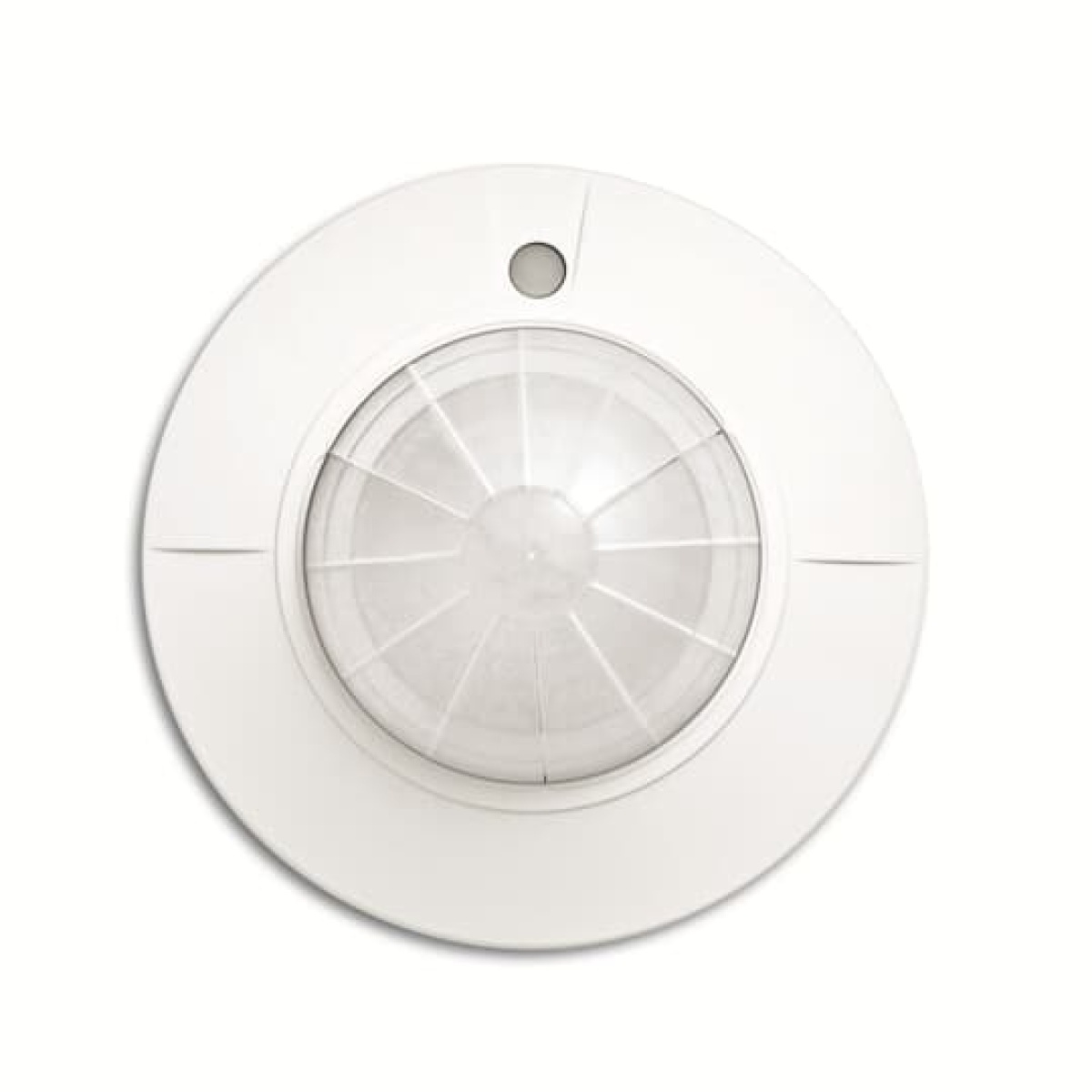

9512 Presence detector 360º
Motion and Presence Detectors
9512 Presence detector 360º
Manufacturer Ref:
2CLA951200A1001
Nortécnica Ref:
EAN:
8427238095103
Description
Technical Information
Attributes
Mounting method
Flushmounted
Colour
White
Width
100
Model
Presence detector
Halogen free
Yes
Height
98
Depth
106
Connection type
-
Surface protection
Untreated
Creep-under protection
Yes
Voltage type
AC
Switching-on delay
10
Switch-off delay
500
Built-in depth
48
Frequency
-
-
With remote control
No
Diameter
111
Suitable for wall mounting
No
Built-in width
0
Built-in diameter
65
Staircase light controller
-
Bridging switch
-
Suitable for wireless transmission
No
Material quality
Thermoplastic
Max. reach frontally
-
Max. reach sideways
-
Max. switching power
2000
EF001731
-20
45
Max. starting current
80
Material
Plastic
Response value sensitivity adjustable
No
Connection cable length
-
Dim function with dimmer basic element
No
Response value luminosity
10
2000
Suitable for C-load
-
Diameter reach on floor
30
Remote operation
Yes
HVAC-control
No
Constant light control
No
Substation input
Yes
RAL-number similar
9010
With signal unit
No
Control current
-
Teach-function for response value luminosity
No
Networkable
No
Forced switch off
No
Scan angle
360
Built-in length
-
Impact strength
-
With connection cable
-
Nominal voltage
230
230
Degree of protection IP
IP40
With alarm function
No
Transparent
No
Animal zone
Yes
Surface finishing
Matt
Detection angle horizontal
-
-
Min. switch-on time
10
Max. duty cycle
30
Response value luminosity adjustable
Yes
Optimum mounting height
2.5
Pivoting range sensor, horizontal
0
0
Pivoting range sensor, vertical
0
0
Number of switching zones
-
With DALI interface
No
IFTTT support available
No
Forced switch on
No
Min. starting current
-
Min. depth of built-in installation box
48
Max. presence range
2827.43100
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
-
Background monitoring
-
With acoustic sensor
-
EF020270
EV007611
Suitable for ceiling mounting
Yes
Anti-bacterial treatment
No
Brands
ABB
Technical Sheet
