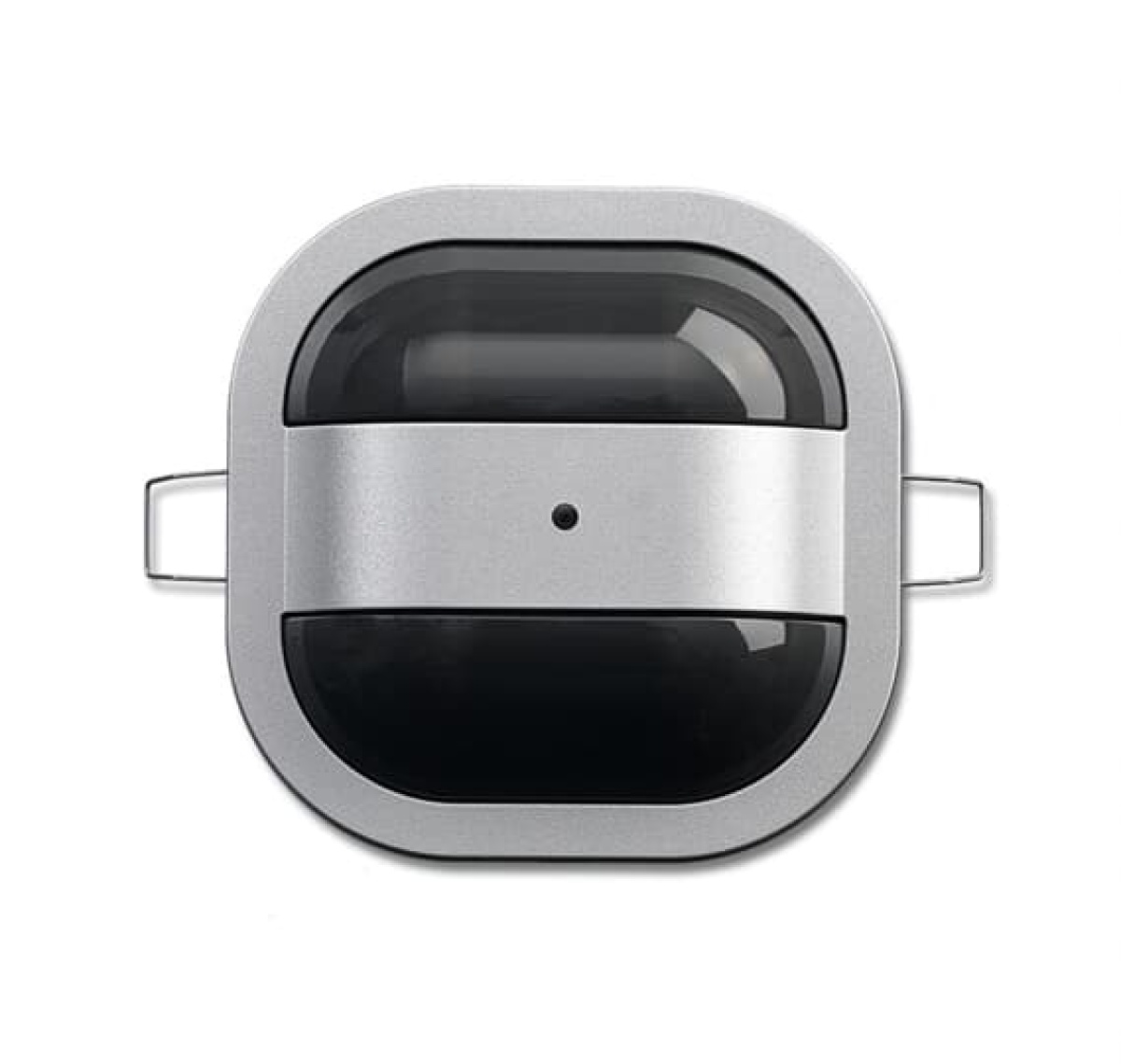

Slave Presence Detector DALI 1 12 m aluminium silver
Motion and Presence Detectors
Slave Presence Detector DALI 1 12 m aluminium silver
Manufacturer Ref:
2CKA006800A2792
Nortécnica Ref:
EAN:
4011395218235
Description
Technical Information
Attributes
Mounting method
Other
Colour
Aluminium
Width
94
Model
Presence detector
Halogen free
Yes
Height
94
Depth
72
Connection type
-
Surface protection
Lacquered
Creep-under protection
Yes
Voltage type
DC
Switching-on delay
-
Switch-off delay
-
Built-in depth
49
Frequency
50
60
With remote control
No
Diameter
-
Suitable for wall mounting
No
Built-in width
-
Built-in diameter
68
Staircase light controller
Yes
Bridging switch
No
Suitable for wireless transmission
No
Material quality
Thermoplastic
Max. reach frontally
6
Max. reach sideways
6
Max. switching power
-
EF001731
-
-
Max. starting current
-
Material
Plastic
Response value sensitivity adjustable
No
Connection cable length
-
Dim function with dimmer basic element
No
Response value luminosity
5
2000
Suitable for C-load
-
Diameter reach on floor
-
Remote operation
No
HVAC-control
No
Constant light control
No
Substation input
No
RAL-number similar
9006
With signal unit
No
Control current
-
Teach-function for response value luminosity
No
Networkable
Yes
Forced switch off
No
Scan angle
-
Built-in length
-
Impact strength
-
With connection cable
-
Nominal voltage
230
230
Degree of protection IP
IP40
With alarm function
No
Transparent
No
Animal zone
No
Surface finishing
Matt
Detection angle horizontal
90
360
Min. switch-on time
60
Max. duty cycle
30
Response value luminosity adjustable
No
Optimum mounting height
2
Pivoting range sensor, horizontal
-
-
Pivoting range sensor, vertical
-
-
Number of switching zones
640
With DALI interface
Yes
IFTTT support available
No
Forced switch on
No
Min. starting current
-
Min. depth of built-in installation box
49
Max. presence range
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
-
Background monitoring
-
With acoustic sensor
-
EF020270
EV007611
Suitable for ceiling mounting
Yes
Anti-bacterial treatment
No
Brands
BuschJaeger
Technical Sheet
