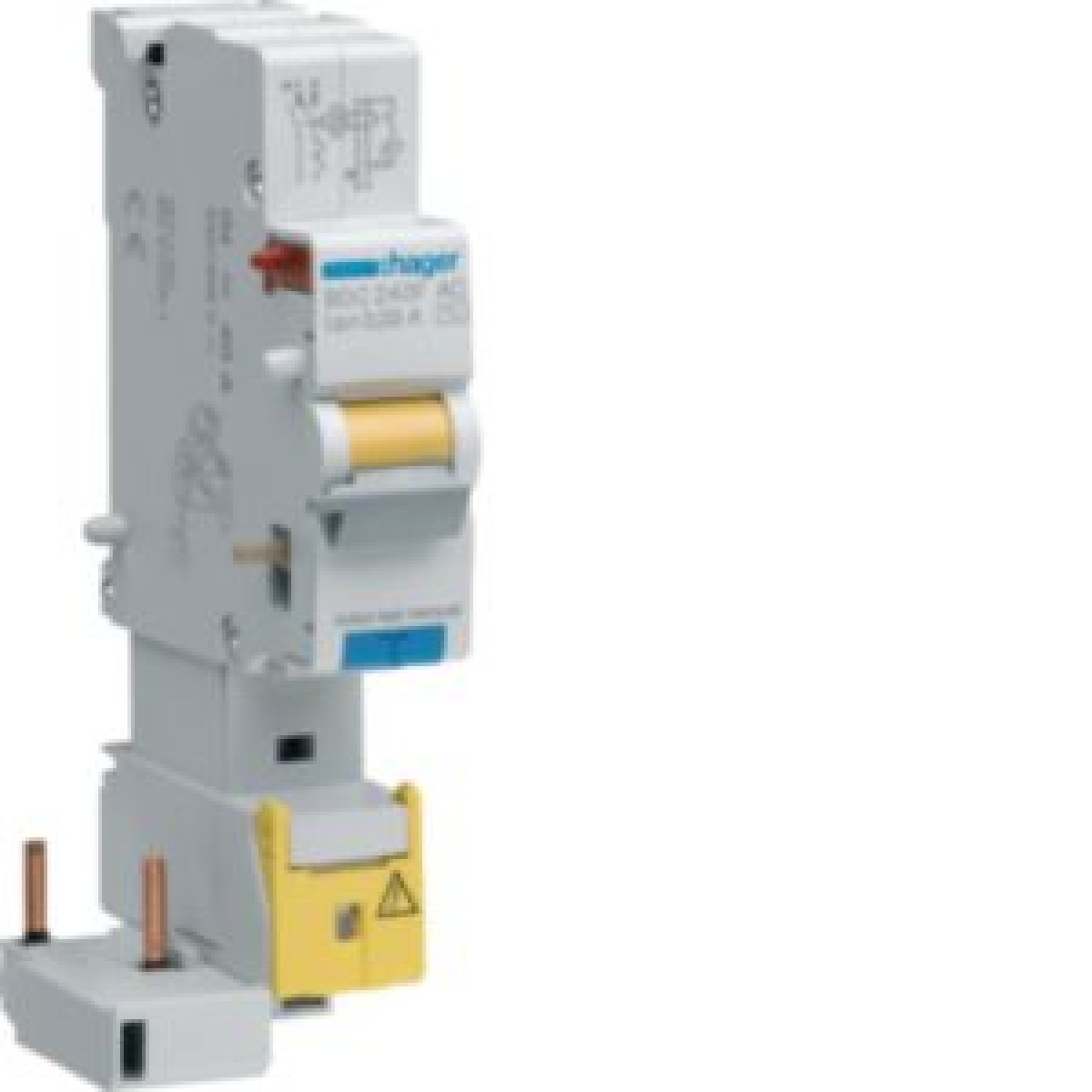

Bloco dif 1PN 25A 300mA A HI cborn des
Cutting and Protection Devices
Bloco dif 1PN 25A 300mA A HI cborn des
Manufacturer Ref:
BFH225F
Nortécnica Ref:
71BFH225F
EAN:
3250611345763
Description
Technical Information
Attributes
Nominal current
25
Rated insulation voltage Ui
500
Number of poles
2
Delay adjustable
No
Max. delay time
0
Leakage current type
A
Surge current capacity
3
Pollution degree
2
Rated fault current
0.3
0.3
Nominal voltage
230
230
Power loss
1.30
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
0.75
16
Connectable conductor cross section multi-wired
0.75
10
With interlocking device
No
Ambient temperature during operating
-25
40
Rated fault current adjustable
No
Anti-nuisance tripping version
Yes
Rated impulse withstand voltage Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
