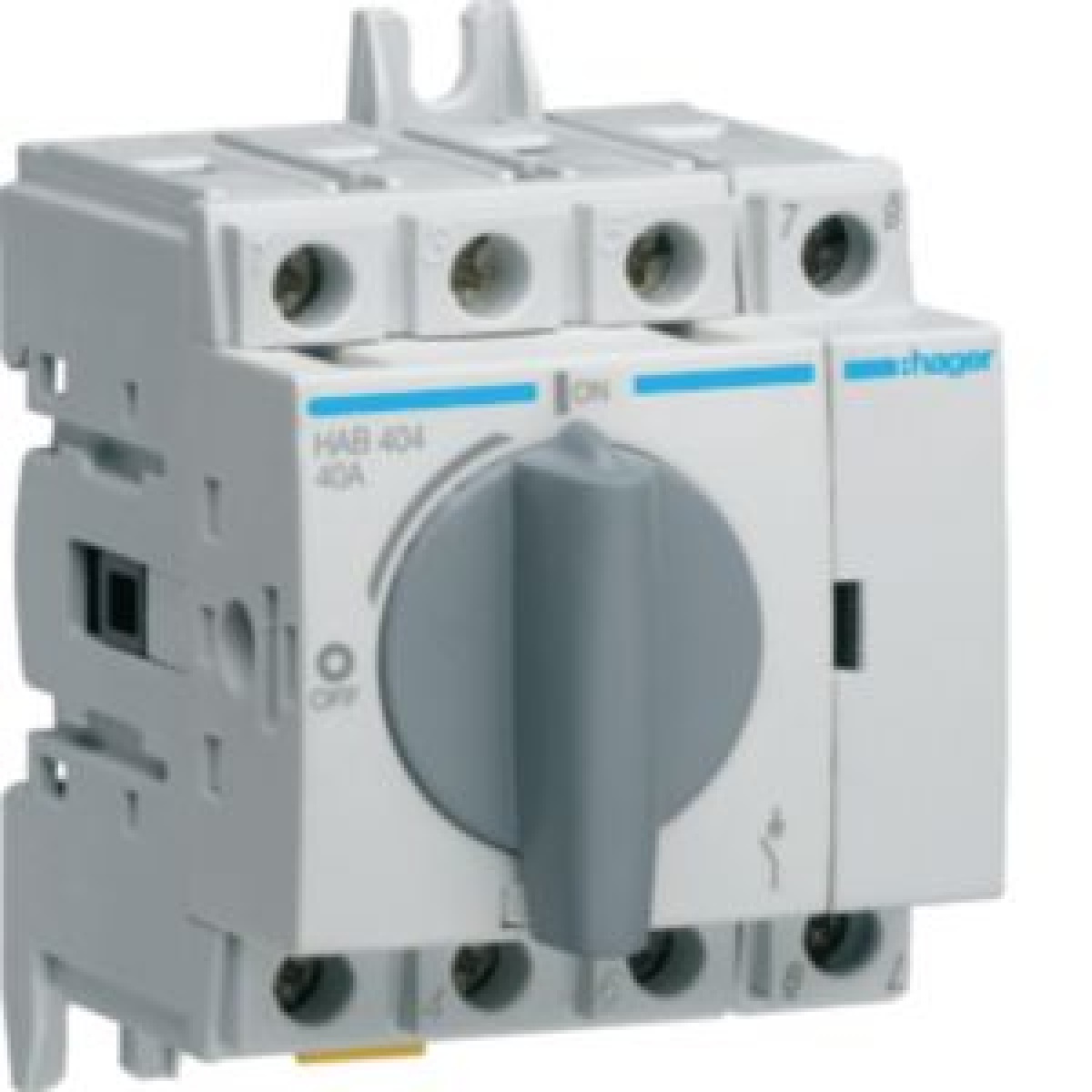

Inter corte aparente 4P 40A 35M
Cutting and Protection Devices
Inter corte aparente 4P 40A 35M
Manufacturer Ref:
HAB404
Nortécnica Ref:
71HAB404
EAN:
3250613140359
Description
Technical Information
Attributes
Width
60
Height
68
Depth
69
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
40
Number of poles
4
Rated operating voltage
380
415
Conditioned rated short-circuit current Iq
50
Width in number of modular spacings
3.5
Degree of protection IP, front side
IP20
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Short rotary handle
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
18
Rated short-time withstand current lcw
1.26
Colour control element
Grey
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
415
Motor drive optional
No
Voltage release optional
No
Device construction
Builtin device fixed builtin technique
Rated permanent current at AC-21, 400 V
40
Switching power at 400 V
26
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
40
Degree of protection NEMA
Other
With pre-assembled cabling
No
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
