Electronic movement detector for detecting thermal motion. Remote operation via IR remote control 6841-101. Remote configurable via IR service remote control 6842-101. With display for detection and operation mode. With ground surveillance. With high-quality lens for optimum detection. Detection sensitivity adjustable via IR service remote control. Adjustment of detection range via rotary control element. Surveillance density: 25 sectors with 100 switching segments. With integrated dismantling protection. All functions controlled by microprocessor. Continuous light (4 hours), light deactivation (4 hours) and presence simulation can be activated via IR remote control. Reading in the current brightness value as switching threshold via remote control. With automatic range stabilization. With automatic interference suppression. With automatic dazzle-proofing. With brightness-independent test mode for evaluating the detection zone. Individual adjustment of detection range via enclosed protective foil which can be cut to size. Additional possibility for switch-on via normally open push-button switch. Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec adjustable.
Motion and Presence Detectors

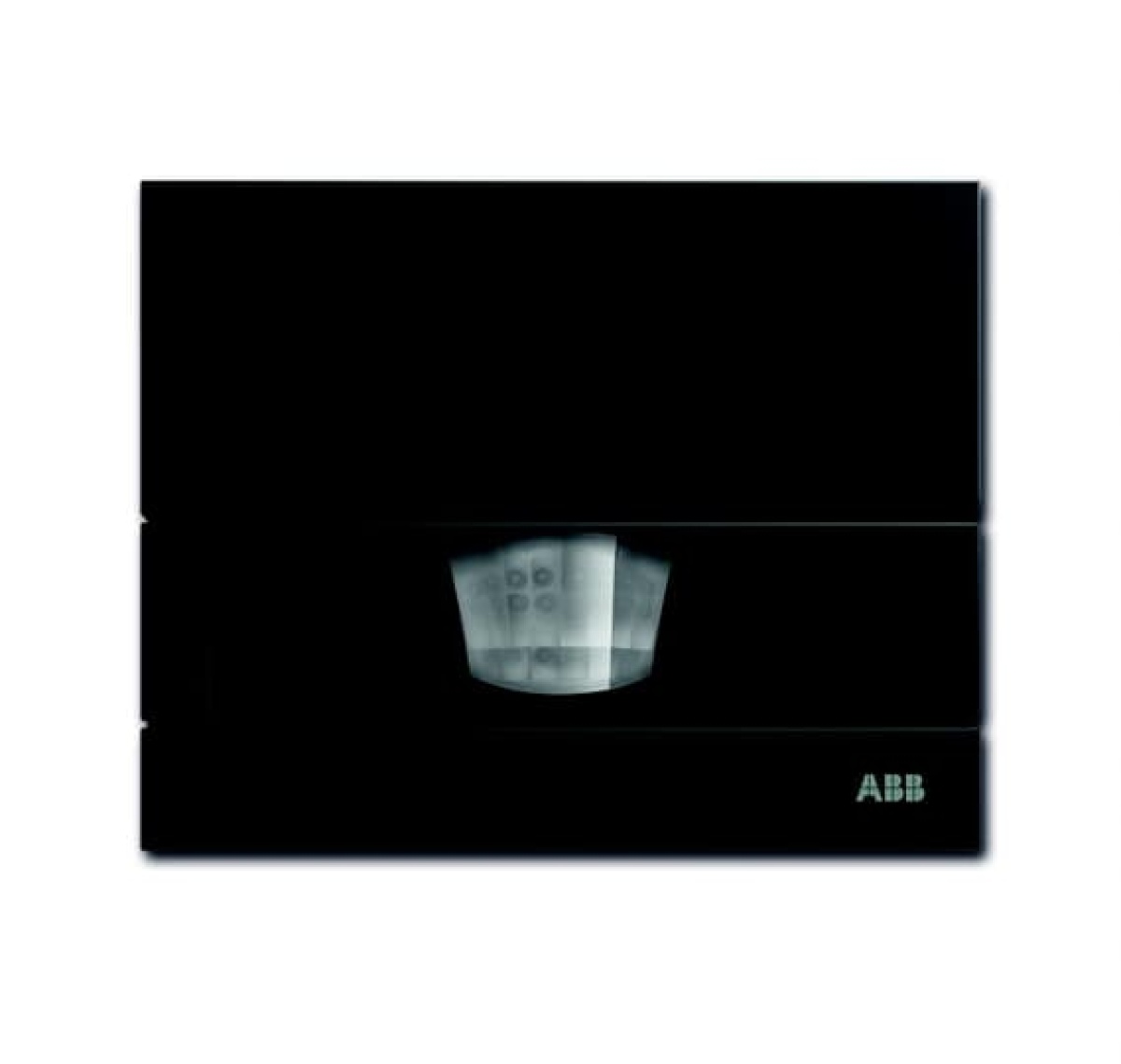

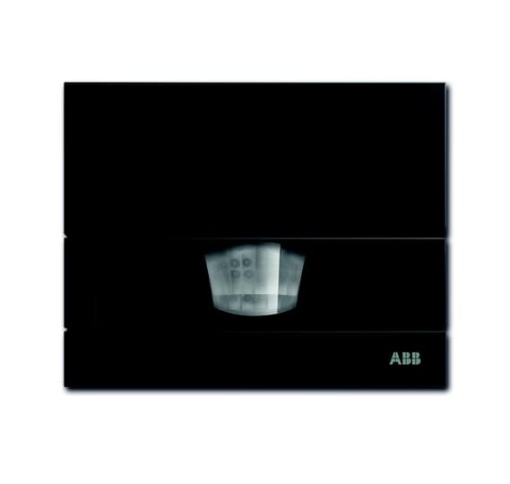

MasterLINE 110 Motion Detector anthracite
Nortécnica Ref:
EAN:
4011395163252
Description
Technical Information
Attributes
Mounting method
Surface mounted
Colour
Anthracite
Width
125
Model
Movement sensor
Halogen free
Yes
Height
33
Depth
100
Connection type
-
Surface protection
Untreated
Creep-under protection
Yes
Voltage type
-
Switch-on delay
-
Switch-off delay
-
Built-in depth
-
Frequency
50
60
With remote control
-
Diameter
-
Suitable for wall mounting
-
Built-in width
-
Built-in diameter
-
Staircase light controller
-
Bridging switch
-
Suitable for wireless transmission
-
Material quality
Thermoplastic
Max. reach frontally
12
Max. reach sideways
4
Max. switching power
2300
EF001731
-25
55
Max. starting current
-
Material
-
Response value sensitivity adjustable
Yes
Connection cable length
-
Dim function with dimmer basic element
-
Response value luminosity
3
150
Suitable for C-load
-
Diameter reach on floor
-
Remote operation
Yes
HVAC-control
-
Constant light control
No
Substation input
-
RAL-number similar
7021
With signal unit
-
Control current
-
Teach-function for response value luminosity
-
Networkable
-
Forced switch off
Yes
Scan angle
-
Built-in length
-
Impact strength
-
With connection cable
-
Nominal voltage
230
230
Degree of protection IP
IP55
With alarm function
-
Transparent
-
Animal zone
-
Surface finishing
Matt
Detection angle horizontal
-
-
Min. switch-on time
10
Max. duty cycle
30
Response value luminosity adjustable
Yes
Optimum mounting height
2.5
Swivel range sensor, horizontal
-
-
Swivel range sensor, vertical
-
-
Number of switching zones
1
With DALI interface
-
IFTTT support available
No
Forced switch on
-
Min. starting current
-
Min. depth of built-in installation box
-
Max. presence range
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
-
Background monitoring
-
With acoustic sensor
-
Sensor type
EV007611
Suitable for ceiling mounting
-
Anti-bacterial treatment
No
Brands
ABB
Descrição Longa
Electronic movement detector for detecting thermal motion. Remote operation via IR remote control 6841-101. Remote configurable via IR service remote control 6842-101. With display for detection and operation mode. With ground surveillance. With high-quality lens for optimum detection. Detection sensitivity adjustable via IR service remote control. Adjustment of detection range via rotary control element. Surveillance density: 25 sectors with 100 switching segments. With integrated dismantling protection. All functions controlled by microprocessor. Continuous light (4 hours), light deactivation (4 hours) and presence simulation can be activated via IR remote control. Reading in the current brightness value as switching threshold via remote control. With automatic range stabilization. With automatic interference suppression. With automatic dazzle-proofing. With brightness-independent test mode for evaluating the detection zone. Individual adjustment of detection range via enclosed protective foil which can be cut to size. Additional possibility for switch-on via normally open push-button switch. Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec adjustable.
