Wireless movement detector for detecting thermal motion. With display for detection and status indication. With ground and rear-field detection. With high-quality lens for optimum detection. Surveillance density: 84 sectors with 336 switching segments. With integrated dismantling protection. All functions controlled by microprocessor. With automatic range stabilization. With automatic interference suppression. With automatic dazzle-proofing. With automatic battery monitoring. Battery service life: typically 5 years, therefore practically maintenance-free. With brightness-independent test mode for evaluating the detection zone. Individual adjustment of detection range via enclosed protective foil which can be cut to size. Combinable with switch actuator WaveLINE, 1gang, with extension unit 6701-101. For standalone and group operation. Switch-off delay: 3 min. (single mode), individually adjustable at actuator (group mode). Send frequency: 868 MHz. Free-field range: approx. 100 m.
Motion and Presence Detectors

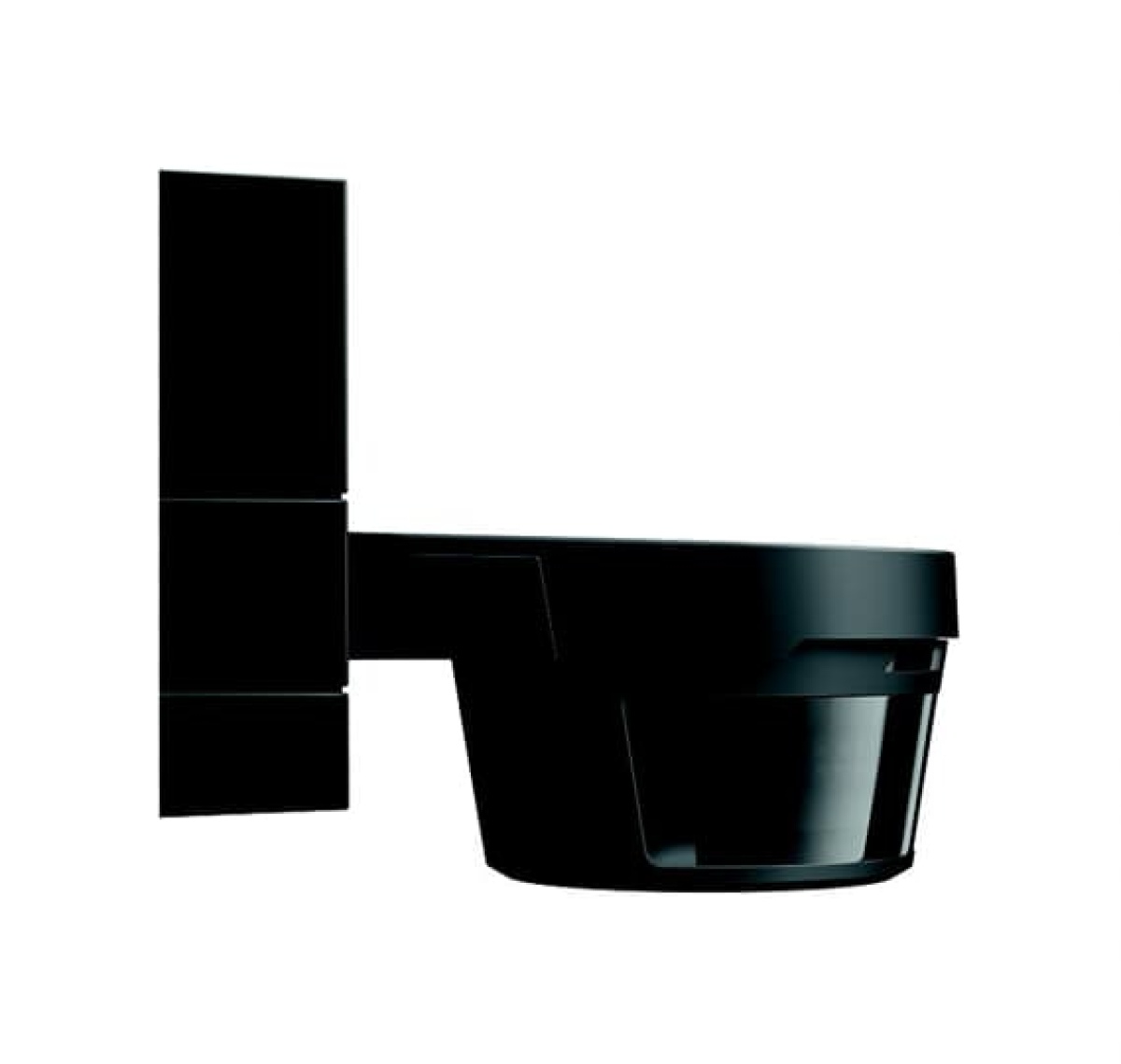

MasterLINE 220 Motion Detector anthracite
Nortécnica Ref:
EAN:
4011395175903
Description
Technical Information
Attributes
Mounting method
Surface mounted
Colour
Anthracite
Width
125
Model
Movement sensor
Halogen free
Yes
Height
115
Depth
141
Connection type
-
Surface protection
Untreated
Creep-under protection
Yes
Voltage type
DC
Switch-on delay
-
Switch-off delay
-
Built-in depth
-
Frequency
-
-
With remote control
-
Diameter
-
Suitable for wall mounting
-
Built-in width
-
Built-in diameter
-
Staircase light controller
Yes
Bridging switch
-
Suitable for wireless transmission
Yes
Material quality
Thermoplastic
Max. reach frontally
16
Max. reach sideways
16
Max. switching power
-
EF001731
-25
55
Max. starting current
-
Material
Plastic
Response value sensitivity adjustable
-
Connection cable length
-
Dim function with dimmer basic element
No
Response value luminosity
0
1000
Suitable for C-load
-
Diameter reach on floor
-
Remote operation
-
HVAC-control
No
Constant light control
No
Substation input
-
RAL-number similar
7021
With signal unit
-
Control current
-
Teach-function for response value luminosity
No
Networkable
Yes
Forced switch off
-
Scan angle
-
Built-in length
-
Impact strength
-
With connection cable
-
Nominal voltage
4.5
4.5
Degree of protection IP
IP55
With alarm function
-
Transparent
-
Animal zone
No
Surface finishing
Matt
Detection angle horizontal
8
220
Min. switch-on time
60
Max. duty cycle
3
Response value luminosity adjustable
Yes
Optimum mounting height
2.5
Swivel range sensor, horizontal
-30
30
Swivel range sensor, vertical
-10
10
Number of switching zones
1
With DALI interface
-
IFTTT support available
No
Forced switch on
-
Min. starting current
-
Min. depth of built-in installation box
-
Max. presence range
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
-
Background monitoring
-
With acoustic sensor
-
Sensor type
EV007611
Suitable for ceiling mounting
-
Anti-bacterial treatment
No
Brands
ABB
Descrição Longa
Wireless movement detector for detecting thermal motion. With display for detection and status indication. With ground and rear-field detection. With high-quality lens for optimum detection. Surveillance density: 84 sectors with 336 switching segments. With integrated dismantling protection. All functions controlled by microprocessor. With automatic range stabilization. With automatic interference suppression. With automatic dazzle-proofing. With automatic battery monitoring. Battery service life: typically 5 years, therefore practically maintenance-free. With brightness-independent test mode for evaluating the detection zone. Individual adjustment of detection range via enclosed protective foil which can be cut to size. Combinable with switch actuator WaveLINE, 1gang, with extension unit 6701-101. For standalone and group operation. Switch-off delay: 3 min. (single mode), individually adjustable at actuator (group mode). Send frequency: 868 MHz. Free-field range: approx. 100 m.
