S2-M3-50 three phase feeder terminals allow the connection of cable cross sections up to 50mm². They are usable with MS165 manual motor starters. The rated current is 125 A (IEC) / 120 A (UL).
Accessories and Components

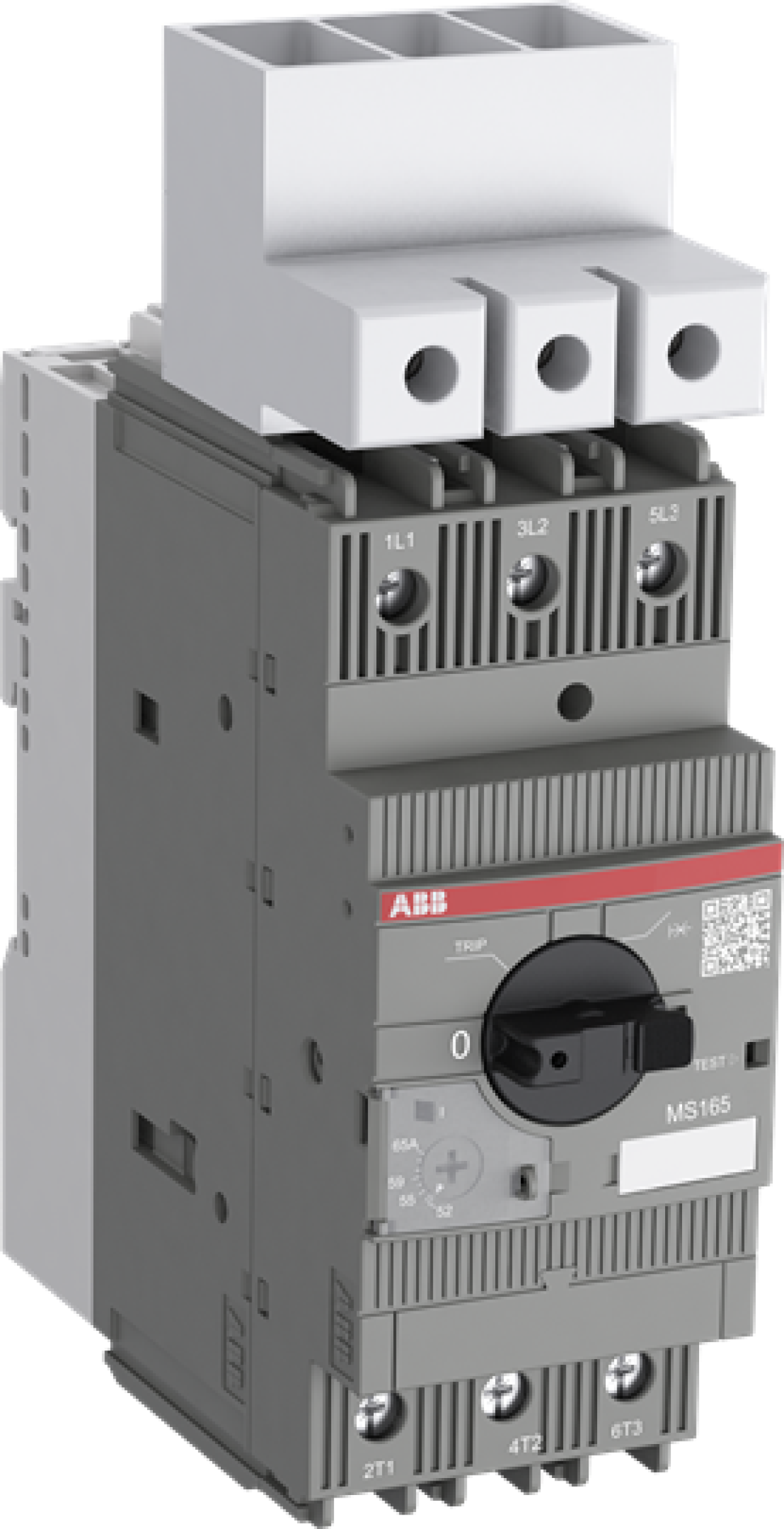

S2-M3-50 3-phase Power infeed Block for MS165, 50 mm²
Nortécnica Ref:
EAN:
4013614555725
Description
Technical Information
Attributes
Nominal current
125
Mounting method
Screw
Width
54
Height
65
Depth
59.3
Connection type
Screwing
Number of inputs
3
Number of outputs
3
Number of poles
3
Contact safe
Yes
Suitable for fine strand conductors
Yes
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors without cable end sleeve
Yes
Suitable for extra fine-strand conductors
Yes
Suitable for extra fine-strand conductors without cable end sleeve
Yes
Conductor cross section, input
10
50
Conductor cross section, output
10
50
Conductor cross section, input AWG
8
0
Conductor cross section, output AWG
-
-
Brands
ABB
Long Description
S2-M3-50 three phase feeder terminals allow the connection of cable cross sections up to 50mm². They are usable with MS165 manual motor starters. The rated current is 125 A (IEC) / 120 A (UL).
