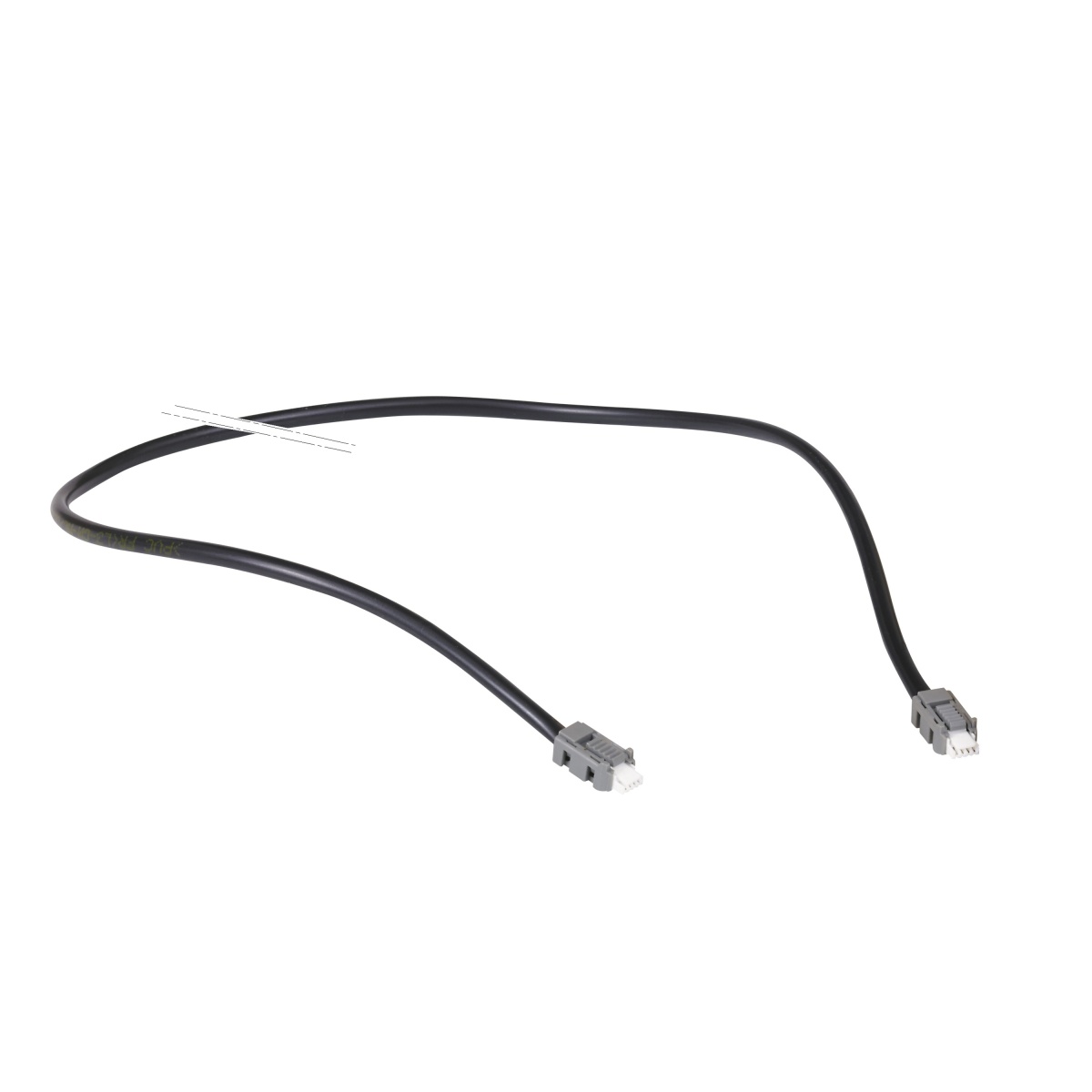

Cordões comunicantes EMS CX³ - lote de 10 - comprimento 500 mm
Data and Communication Cable (Copper)
Cordões comunicantes EMS CX³ - lote de 10 - comprimento 500 mm
Manufacturer Ref:
414908
Nortécnica Ref:
EAN:
3414970805362
Description
Technical Information
Attributes
EF000024
-
Nominal cross section conductor
0.128
Material core insulation
Polyvinyl chloride (PVC)
Core identification
Colour
Cable type
Other
Weight
10
Drain wire
No
Nominal voltage U
12
Stranding element
No
Colour outer sheath
Other
Category
-
Diameter conductor
0.404
Conductor material
Copper
Screen over stranding element
None
Screen over stranding
None
Material outer sheath
Polyvinyl chloride (PVC)
Characteristic impedance
-
Conductor category
Class 1 = solid
Armouringreinforcement
None
Permitted cable outer temperature during assemblinghandling
80
80
Permitted cable outer temperature after assembling without vibration
80
80
Number of stranding elements
4
Protective sheath
Other
Number of cores
7
Suitable for underground installation
No
Halogen free according to EN IEC 60754-2
-
Cable width approximate
5
Cable height approximate
5
Low smoke according to EN IEC 61034-2
-
Stranding
-
Outer diameter approximate
0.95
With rodent protection
No
NVP value
-
Oil resistant according to EN IEC 60811-404
-
Conductor surface
Bare
Longitudinal water blocking cable
No
Radial water blocking cable
No
Reaction-to-fire according to EN 13501-6 Class
-
Reaction-to-fire according to EN 13501-6 Smoke production
-
Reaction-to-fire according to EN 13501-6 Flaming dropletsparticles
-
Reaction-to-fire according to EN 13501-6 Acidity
-
AWG size
Other
Min. permitted bending radius, moving application with forced guidance
-
Min. permitted bending radius, moving applicationfree movement
-
Min. permitted bending radius, stationary applicationpermanent installation
-
Specification core insulation
-
Specification material outer sheath
Other
Material armouring
Other
Cable geometry
Round
Core identification according to HD 308 S2
No
Suitable as telephone cable
No
Suitable as computer data cable
No
Suitable as signalling cable
Yes
Certified for shipboard application
-
Max. tensile strength during installation
-
Segregation class according to EN 50174-2
-
Approved type of underground installation
Other
Flame retardant according to IEC 60332-1-2
Yes
Flame retardant according to IEC 60332-3-21 Cat A FR
-
Flame retardant according to IEC 60332-3-22 Cat A
-
Flame retardant according to IEC 60332-3-23 Cat B
-
Flame retardant according to IEC 60332-3-24 Cat C
-
Flame retardant according to IEC 60332-3-25 Cat D
-
Halogen free according to EN IEC 60754-1
Yes
Halogen free according to EN IEC 60754-3
-
Circuit integrity according to IEC 60331-23
-
Number of sheath layers
1
With rip cord
No
Suitable for use as security alarm cable
No
Duplex
No
Circuit integrity according to DIN 4102-12
-
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No
Cable type according to BS 4737-3.30
-
Rip cord colour according to BS 4737-3.30
-
Compliant with BT British Telecom specification
-
Brands
Legrand
