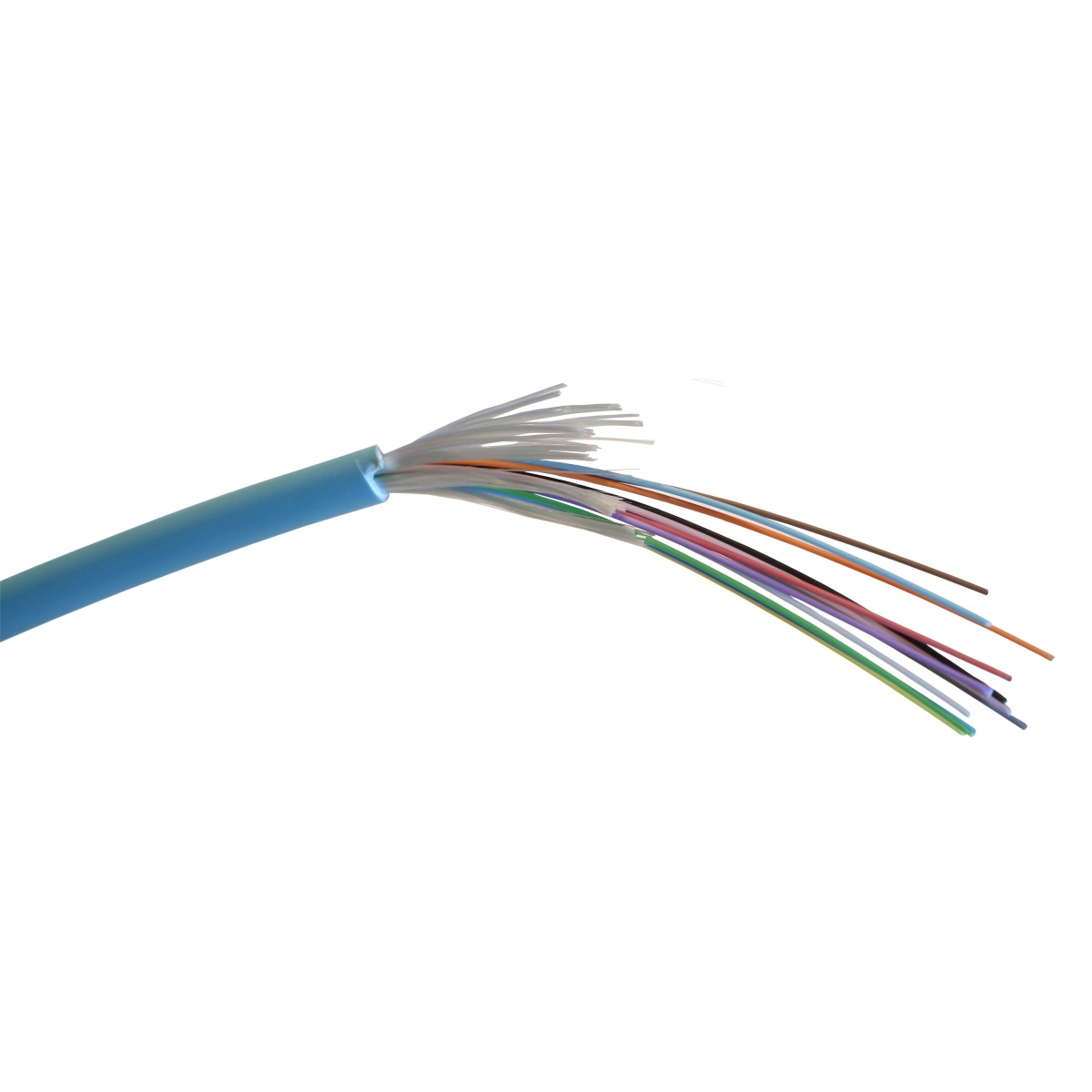

Cabos fibra ótica multímodo OM 3 intext 12 fibras proteção ajustada 900 µm
Fiber Optic Cable
Cabos fibra ótica multímodo OM 3 intext 12 fibras proteção ajustada 900 µm
Manufacturer Ref:
032511
Nortécnica Ref:
03032511
EAN:
3245060325114
Description
Technical Information
Attributes
EF000024
Yes
Fibre type
Multi mode 50/125
Weight
43
Number of fibres
12
With strain relief
No
Resistant to chemicals
No
Colour outer sheath
Turquoise
Category
OM3
Material outer sheath
Other
Type of tube
Tight
Number of fibres per tube
12
Cable metal free
Yes
Armouringreinforcement
-
Suitable for underground installation
No
Halogen free according to EN IEC 60754-2
Yes
Cable width approximate
7.5
Cable height approximate
7.5
Low smoke according to EN IEC 61034-2
Yes
Blow in
No
Outer diameter approximate
7.5
With rodent protection
No
Oil resistant according to EN IEC 60811-404
No
Longitudinal water blocking cable
No
Radial water blocking cable
Yes
Reaction-to-fire according to EN 13501-6 Class
Dca
Reaction-to-fire according to EN 13501-6 Smoke production
s2
Reaction-to-fire according to EN 13501-6 Flaming dropletsparticles
d2
Reaction-to-fire according to EN 13501-6 Acidity
a1
Min. permitted bending radius, stationary applicationpermanent installation
75
Specification material outer sheath
Other
Material armouring
-
Cable geometry
Round
Max. tensile strength during installation
1.5
Flame retardant according to IEC 60332-1-2
Yes
Flame retardant according to IEC 60332-3-21 Cat A FR
No
Flame retardant according to IEC 60332-3-22 Cat A
No
Flame retardant according to IEC 60332-3-23 Cat B
No
Flame retardant according to IEC 60332-3-24 Cat C
Yes
Flame retardant according to IEC 60332-3-25 Cat D
No
Halogen free according to EN IEC 60754-1
Yes
Halogen free according to EN IEC 60754-3
No
Circuit integrity according to IEC 60331-23
No
Circuit integrity according to IEC 60331-25
None
Circuit integrity according to EN 50200
None
Fibre optic cable colour coding according to S-12 Skanova standard
No
Brands
Legrand
