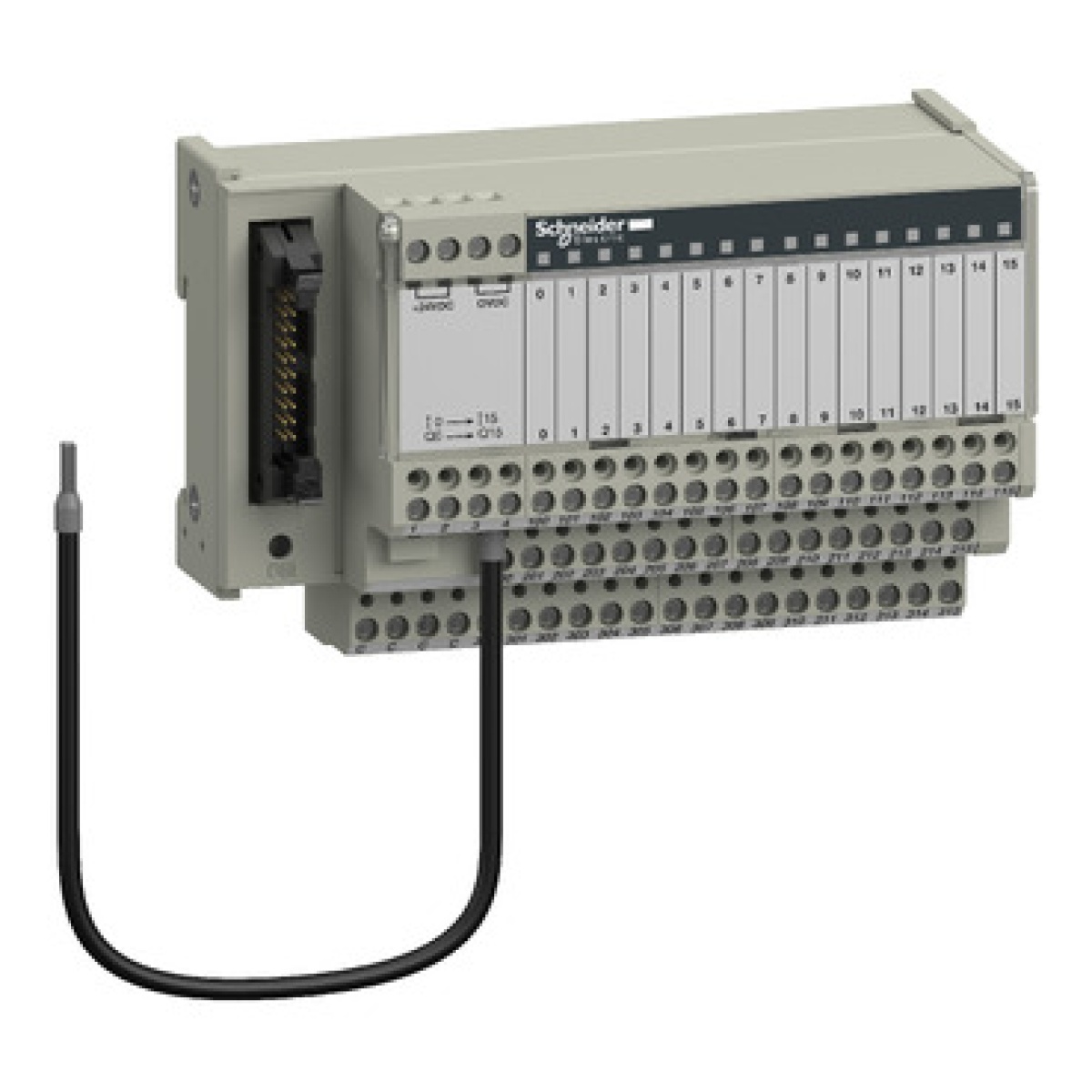

Base passiva ABE7 16 entradas ou saídas - Led
Electromechanical and Electronic Sensors
Base passiva ABE7 16 entradas ou saídas - Led
Manufacturer Ref:
ABE7H16R31
Nortécnica Ref:
EAN:
3389110544985
Description
Technical Information
Attributes
Width
125
Height
70
Depth
67
Housing colour
Grey
EF000228
24
Housing material
Plastic, metallized
Operating temperature
-5
60
With potential separation
No
Operating voltage
24
24
Explosion safety category for gas
None
Explosion safety category for dust
None
Material of contact surface
Other
Max. current carrying capacity per IO signal
0.5
Max. current carrying capacity per socket
1.8
Max. total current
1.8
Degree of protection IP
IP2X
With LED indication
Yes
Pollution degree
2
Connection for NPN-sensors
Yes
Number of channels per connector slot
16
Number of sensor-actuator-slots
1
Type of branches for sensor-actuator cables
Other
Thread sleeves sensoractuator slots
Other
Length of the preassembled cable
-
Cable length configurable
Yes
Cable outer diameter for cable gland
0.09
2.5
Diameter contact female
2.5
Number of poles sensoractuator slots
16
Fix cable version suitable for cable guide chain
No
Type of connector for trunk line
-
Material insulation body
Other
Connectable conductor cross section
0.09
2.5
Material contact body
Other copper alloys
Degree of protection NEMA
-
Brands
Schneider
Technical Sheet
