SIMATIC ET 200pro CM IM DP M12 78 For EthernetIP header module
Programmable Logic Controllers and Dialogue Terminals
SIMATIC ET 200pro CM IM DP M12 78 For EthernetIP header module
Manufacturer Ref:
ZNX:EIP200PROCM1
Nortécnica Ref:
EAN:
4047623404583
Description
Technical Information
Attributes

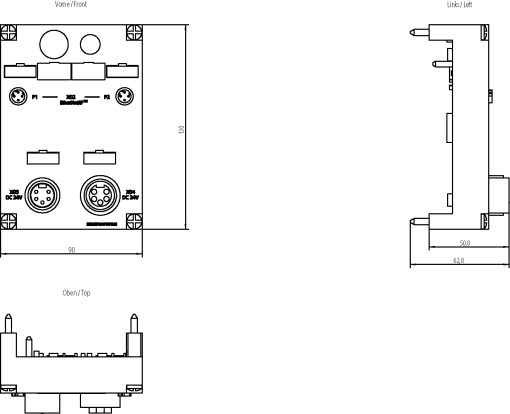

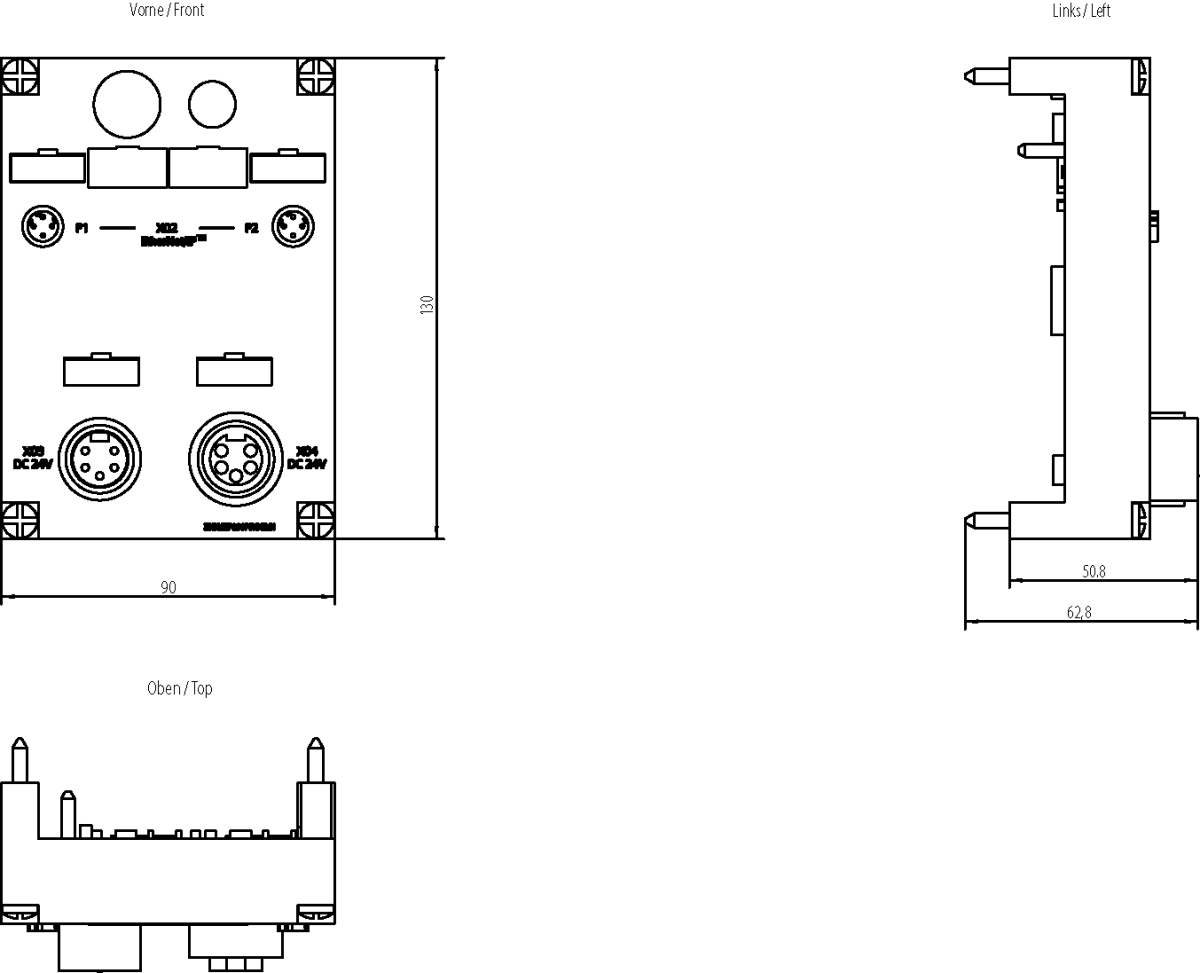

Largura
90
Altura
130
Profundidade
51
Suitable for safety functions
No
Type of voltage input voltage
DC
Number of slots
4
With pluggable modules, digital IO
No
With pluggable modules, analogue IO
No
With pluggable modules, communication modules
No
With pluggable modules, function and technology modules
No
With pluggable modules, central modules
No
With pluggable modules, others
Yes
With integrated power supply
No
Suitable for rail mounting
Yes
Explosion safety category for gas
None
Explosion safety category for dust
None
System accessory
Yes
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Output voltage AC 50 Hz
-
Output voltage AC 60 Hz
-
Output voltage DC
20.4
Front built-in possible
No
Rack-assembly possible
No
Wall mountingdirect mounting
Yes
Input voltage AC 50 Hz
-
Input voltage AC 60 Hz
-
Input voltage DC
20.4
Max. output current AC 50 Hz
-
Max. output current AC 60 Hz
-
Max. output current DC
10
Max. input current AC 50 Hz
-
Max. input current AC 60 Hz
-
Max. input current DC
8
Performance level according to EN ISO 13849-1
-
Type of output voltage
DC
SIL according to IEC 61508
-
Brands
Siemens AG
Technical Sheet
