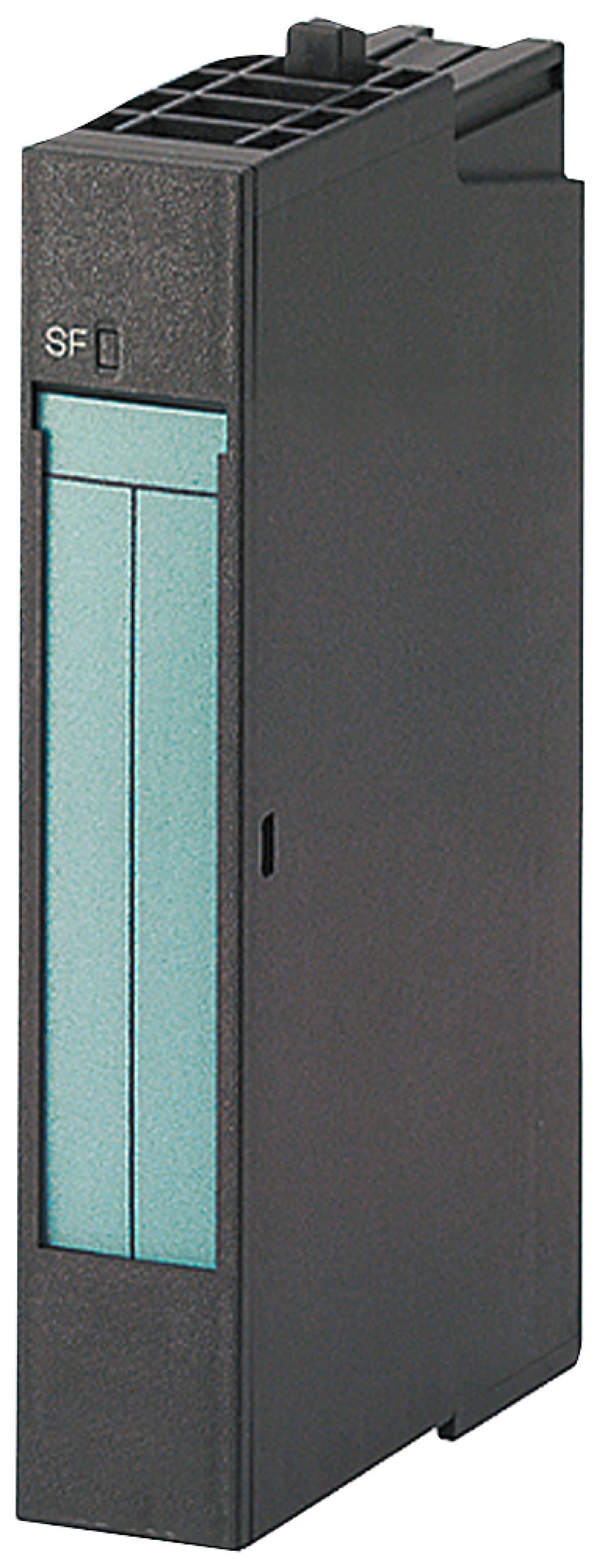

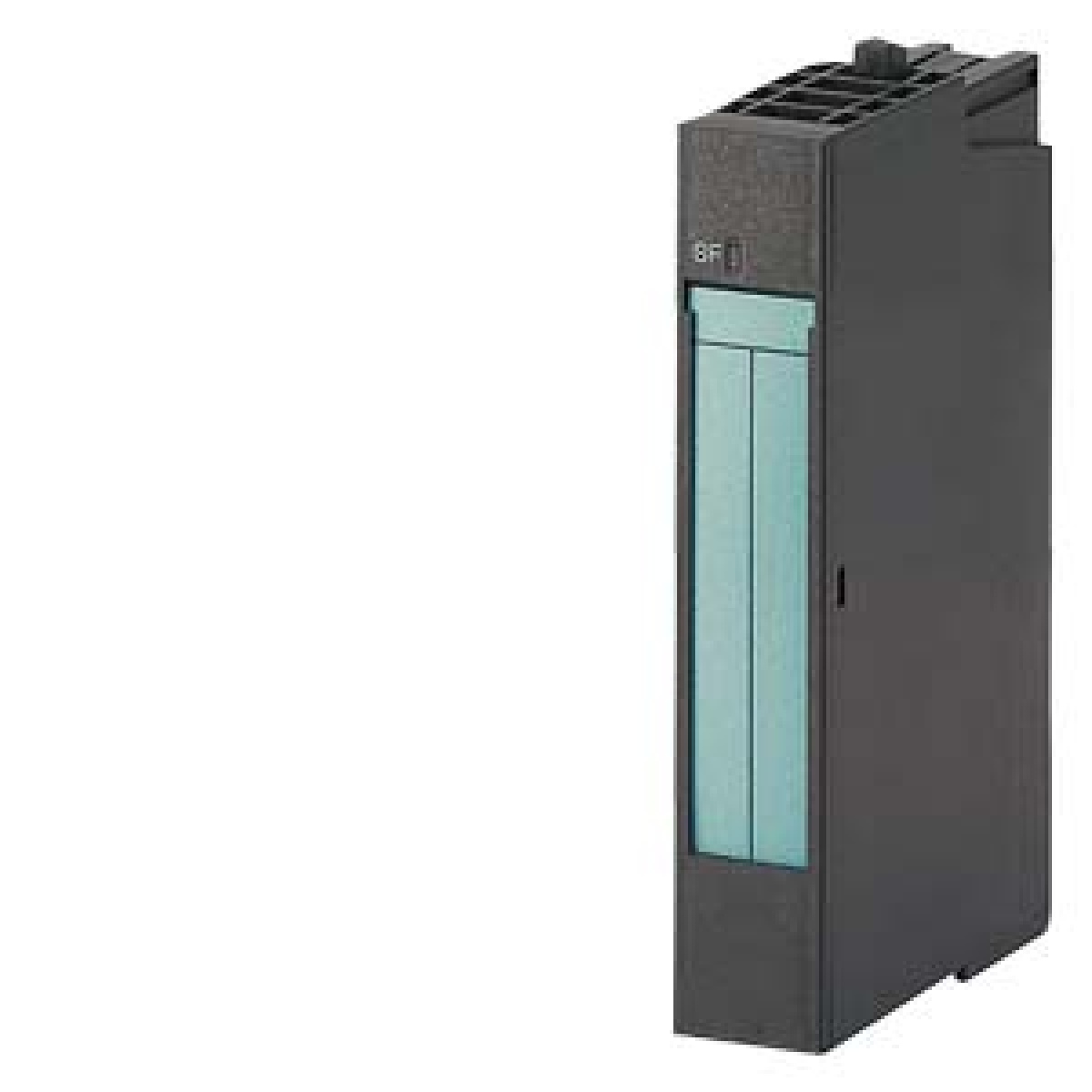

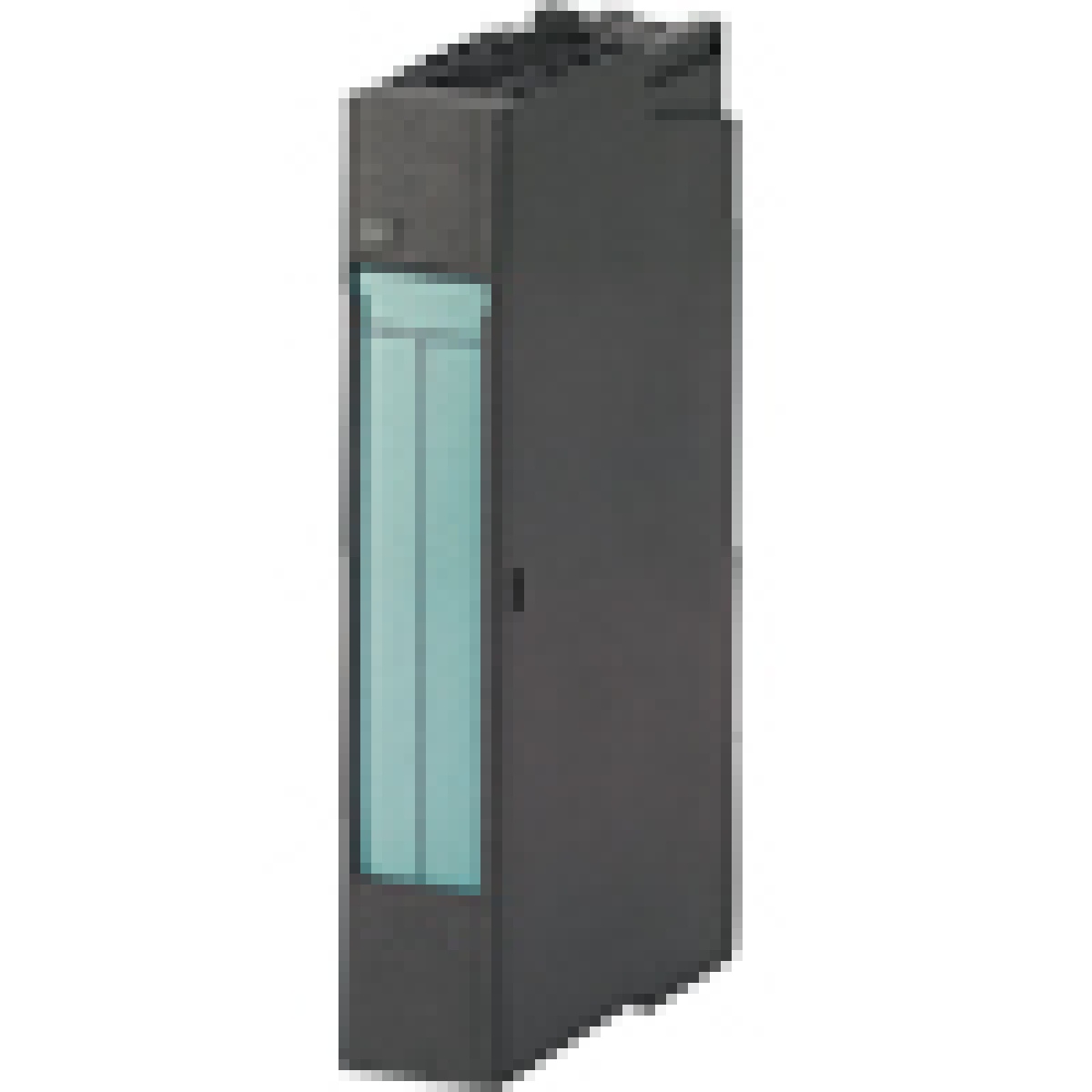

SIPLUS ET 200S 2AQ I ST 25 70 C with conformal coating based on 6ES713
Programmable Logic Controllers and Dialogue Terminals
SIPLUS ET 200S 2AQ I ST 25 70 C with conformal coating based on 6ES713
Manufacturer Ref:
6AG11354GB012AB0
Nortécnica Ref:
EAN:
4042948419878
Description
Technical Information
Attributes
Width
15
Height
81
Depth
52
Suitable for safety functions
No
Number of analogue inputs
0
Number of analogue outputs
2
Voltage type supply voltage
DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
Supporting protocol for TCPIP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Input, current
-
Input, voltage
-
Input, resistor
-
Input, resistance thermometer
-
Input, thermocouple
-
Input signal, configurable
-
Output, current
Yes
Output, voltage
No
Output signal configurable
Yes
Resolution of the analogue inputs
-
Resolution of the analogue outputs
14
Type of electric connection
Screwspring clamp connection
Suitable for rail mounting
Yes
Explosion safety category for gas
ATEX gasexprotection Cat 3G
Explosion safety category for dust
None
Fieldbus connection over separate bus coupler possible
Yes
System accessory
Yes
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Degree of protection IP
IP20
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of interfaces PROFINET
0
Number of HW-interfaces wireless
0
Front built-in possible
Yes
Rack-assembly possible
No
Wall mountingdirect mounting
Yes
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Performance level according to EN ISO 13849-1
-
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
Supply voltage AC 60 Hz
-
Supply voltage DC
20.4
Analogue inputs configurable
-
Analogue outputs configurable
Yes
Radio standard GPRS
No
Radio standard GSM
No
Mobile communications standard 3G UMTS
No
SIL according to IEC 61508
-
Degree of protection NEMA
-
Brands
Siemens AG
