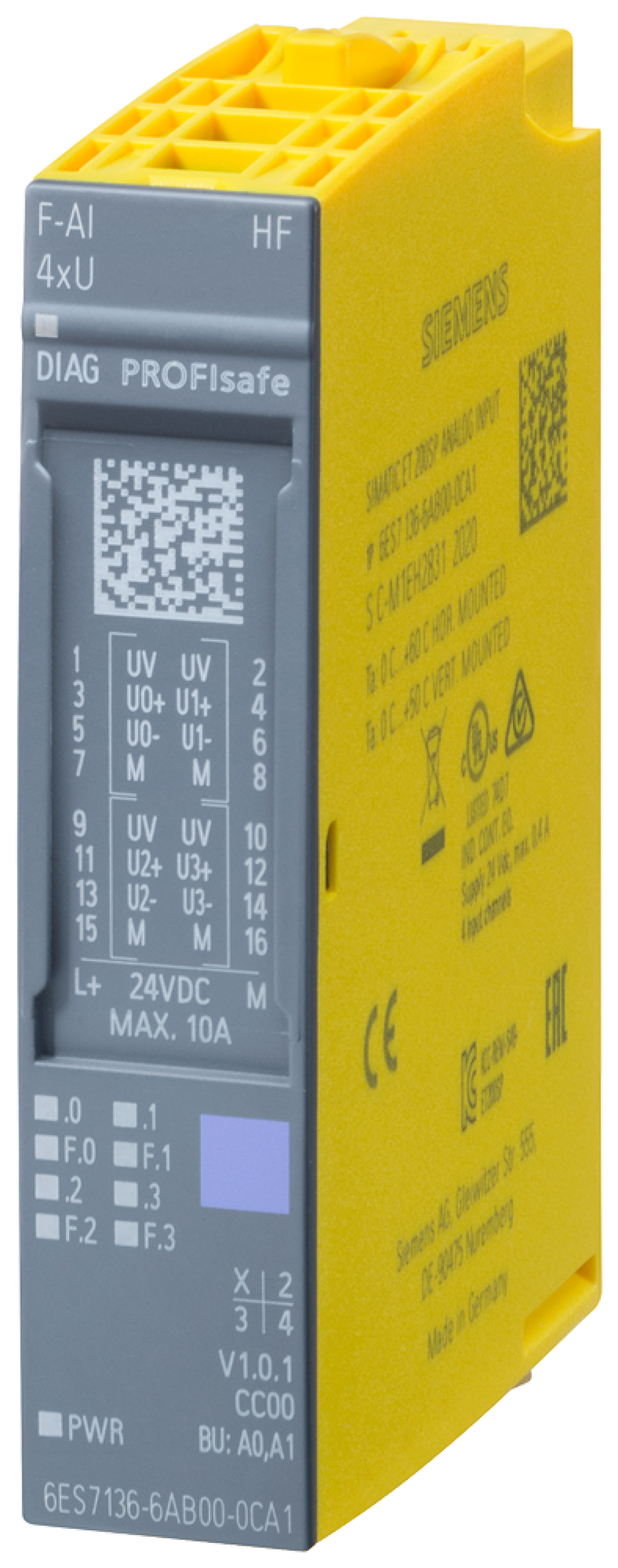

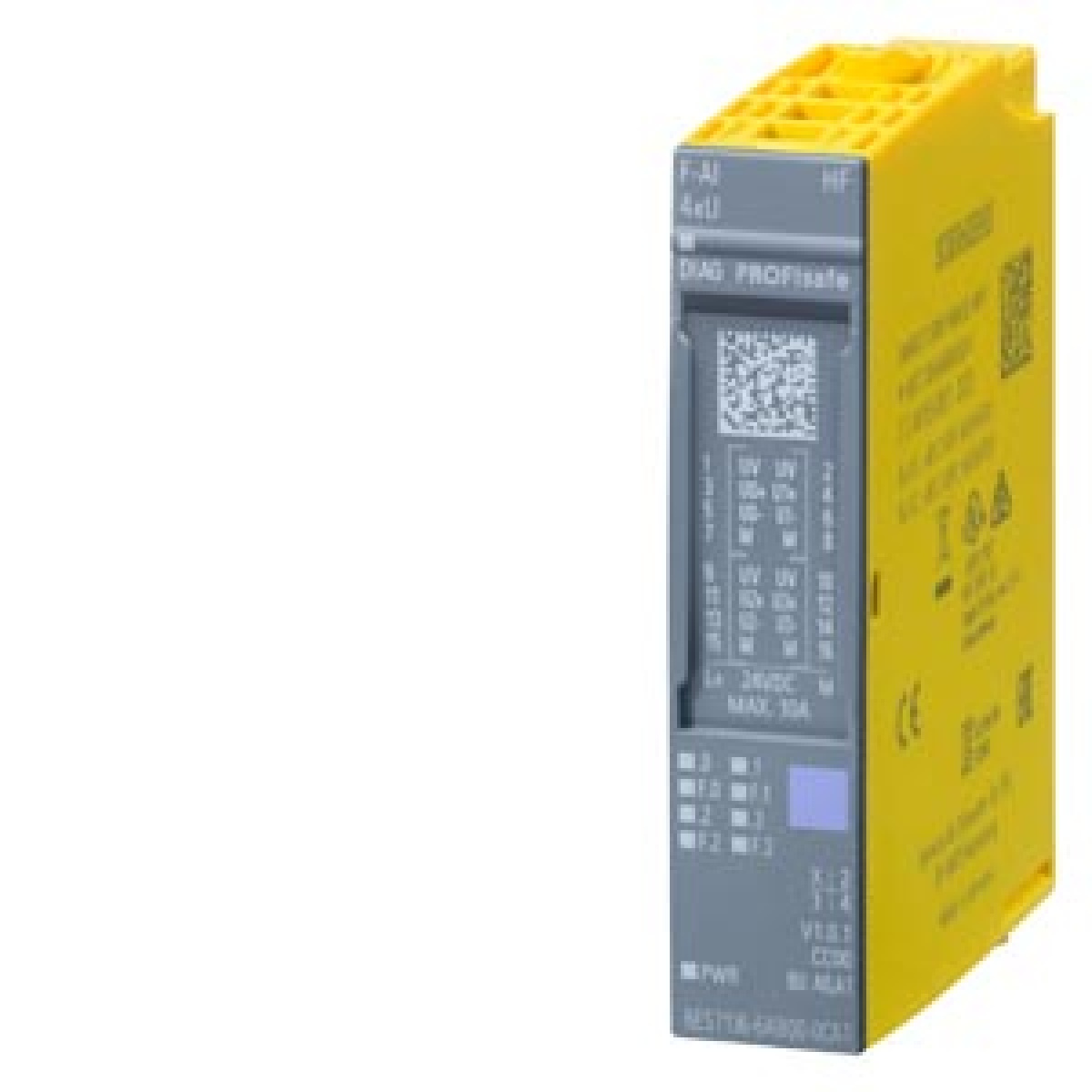

SIPLUS ET 200SP FAI 4XU 010V HF 30 70 C with conformal coating base
Programmable Logic Controllers and Dialogue Terminals
SIPLUS ET 200SP FAI 4XU 010V HF 30 70 C with conformal coating base
Manufacturer Ref:
6AG11366AB002CA1
Nortécnica Ref:
EAN:
4047618124625
Description
Technical Information
Attributes
Width
15
Height
73
Depth
58
Suitable for safety functions
Yes
Number of analogue inputs
4
Number of analogue outputs
0
Voltage type supply voltage
DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
Supporting protocol for TCPIP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
-
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Input, current
No
Input, voltage
Yes
Input, resistor
No
Input, resistance thermometer
No
Input, thermocouple
No
Input signal, configurable
Yes
Output, current
-
Output, voltage
-
Output signal configurable
-
Resolution of the analogue inputs
16
Resolution of the analogue outputs
-
Type of electric connection
Plugin connection
Suitable for rail mounting
Yes
Explosion safety category for gas
-
Explosion safety category for dust
-
Fieldbus connection over separate bus coupler possible
-
System accessory
Yes
Appendant operation agent Ex ia
-
Appendant operation agent Ex ib
-
Degree of protection IP
IP20
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of interfaces PROFINET
-
Number of HW-interfaces wireless
0
Front built-in possible
No
Rack-assembly possible
Yes
Wall mountingdirect mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Performance level according to EN ISO 13849-1
Level e
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
-
Supporting protocol for PROFIsafe
-
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
Supply voltage AC 60 Hz
-
Supply voltage DC
19.2
Analogue inputs configurable
Yes
Analogue outputs configurable
-
Radio standard GPRS
No
Radio standard GSM
No
Mobile communications standard 3G UMTS
No
SIL according to IEC 61508
3
Degree of protection NEMA
-
Brands
Siemens AG
