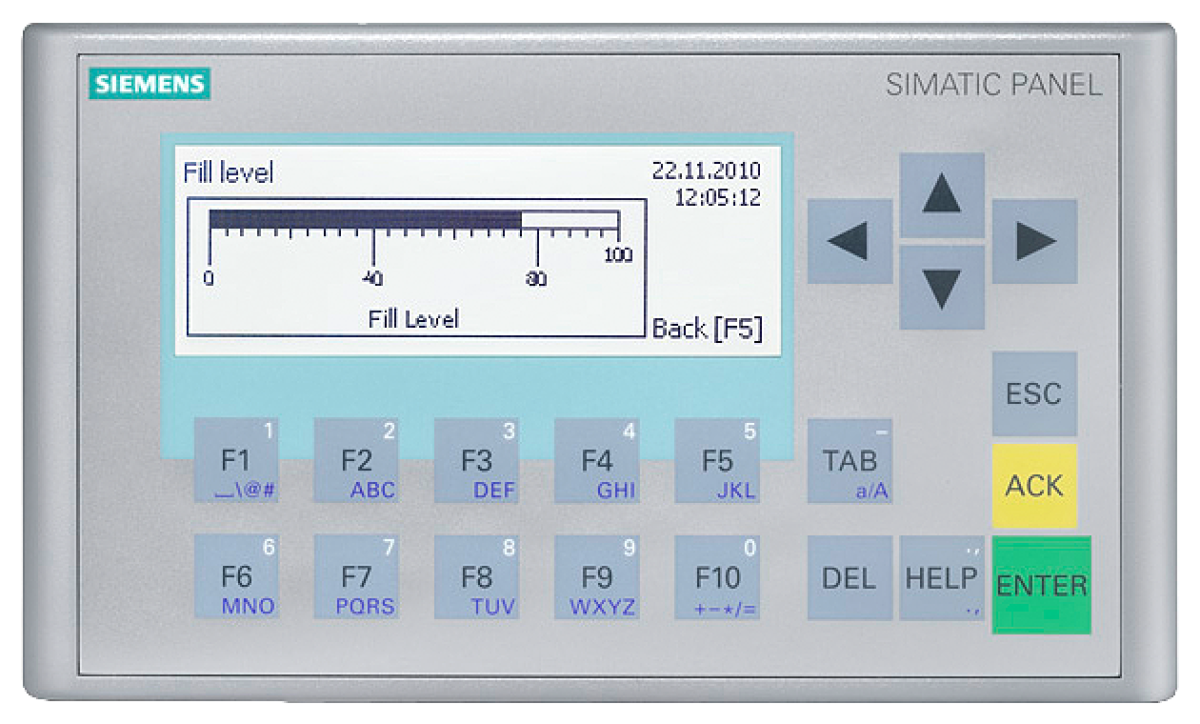

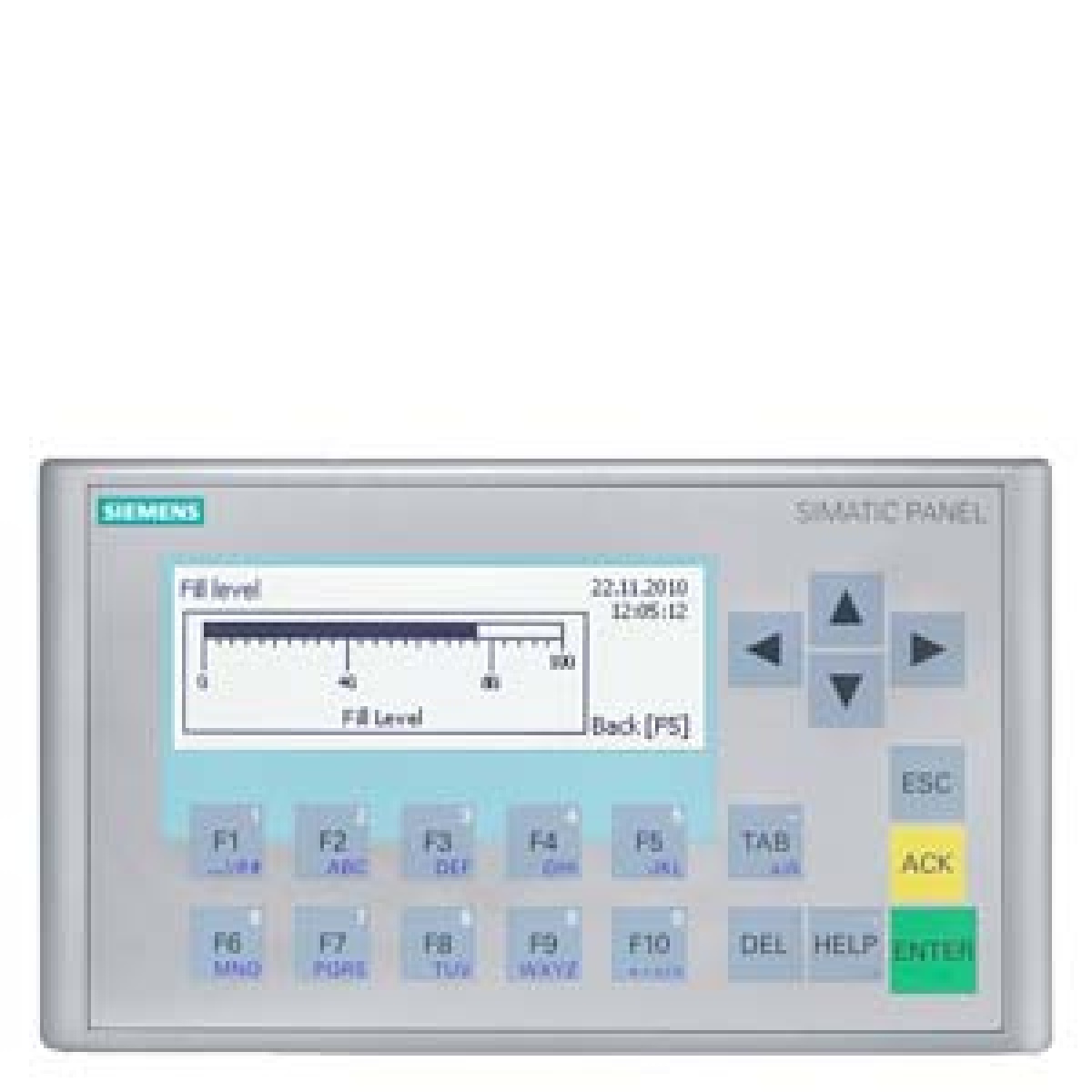

SIPLUS HMI KP300 Basic mono PN 25 60 C with conformal coating based on
Programmable Logic Controllers and Dialogue Terminals
SIPLUS HMI KP300 Basic mono PN 25 60 C with conformal coating based on
Manufacturer Ref:
6AG16470AH112AX1
Nortécnica Ref:
EAN:
4047618129507
Description
Technical Information
Attributes
Built-in depth
30
Suitable for safety functions
No
Screen diagonal
3.6
Operating temperature
-25
Voltage type supply voltage
DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
1
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
Supporting protocol for TCPIP
Yes
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Colour display
Yes
Number of colours of the display
4
Number of pixels, horizontal
240
Number of pixels, vertical
80
Number of function buttons, programmable
10
With numeric keyboard
Yes
With alpha numeric keyboard
Yes
Usable project memoryuser memory
1000
With message indication
Yes
With message system incl. buffer and confirmation
Yes
Process value representation output possible
Yes
Process default value input possible
Yes
With recipes
Yes
Number of password levels
50
With printer output
No
Number of online languages
5
Additional software components, loadable
No
Degree of protection IP, front side
IP65
With SW interfaces
No
Width of the front
165
Height of the front
97
Suitable for rail mounting
No
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of interfaces PROFINET
1
Number of HW-interfaces wireless
0
Wall mountingdirect mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
Yes
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
Supply voltage AC 60 Hz
-
Supply voltage DC
19.2
Type of display
STN
Number of grey-scalesblue-scales of display
0
Radio standard GPRS
No
Radio standard GSM
No
Mobile communications standard 3G UMTS
No
Number of buttons with LED
0
Number of system buttons
10
Touch technology
None
Degree of protection NEMA, front side
-
Brands
Siemens AG
