Programmable Logic Controllers and Dialogue Terminals

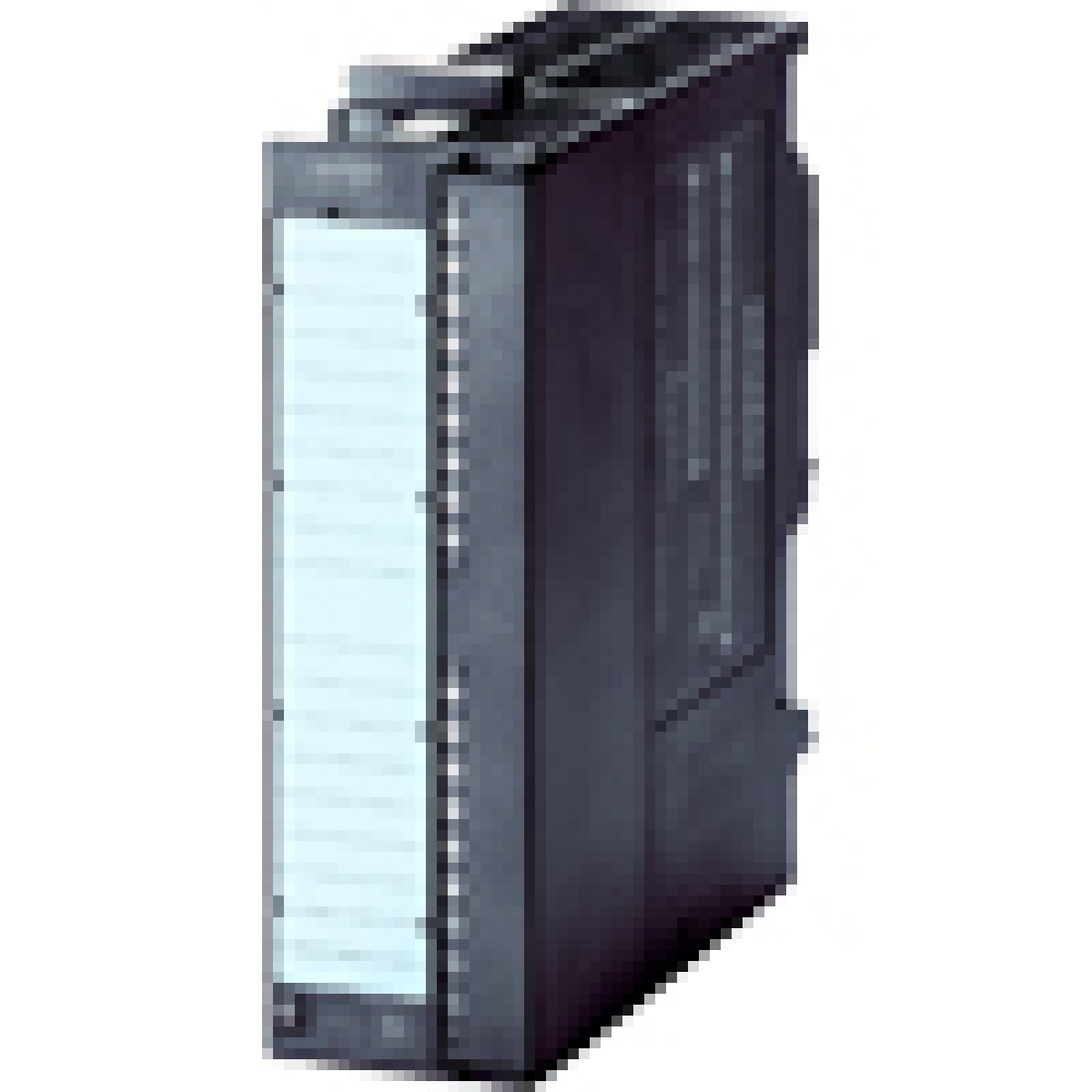

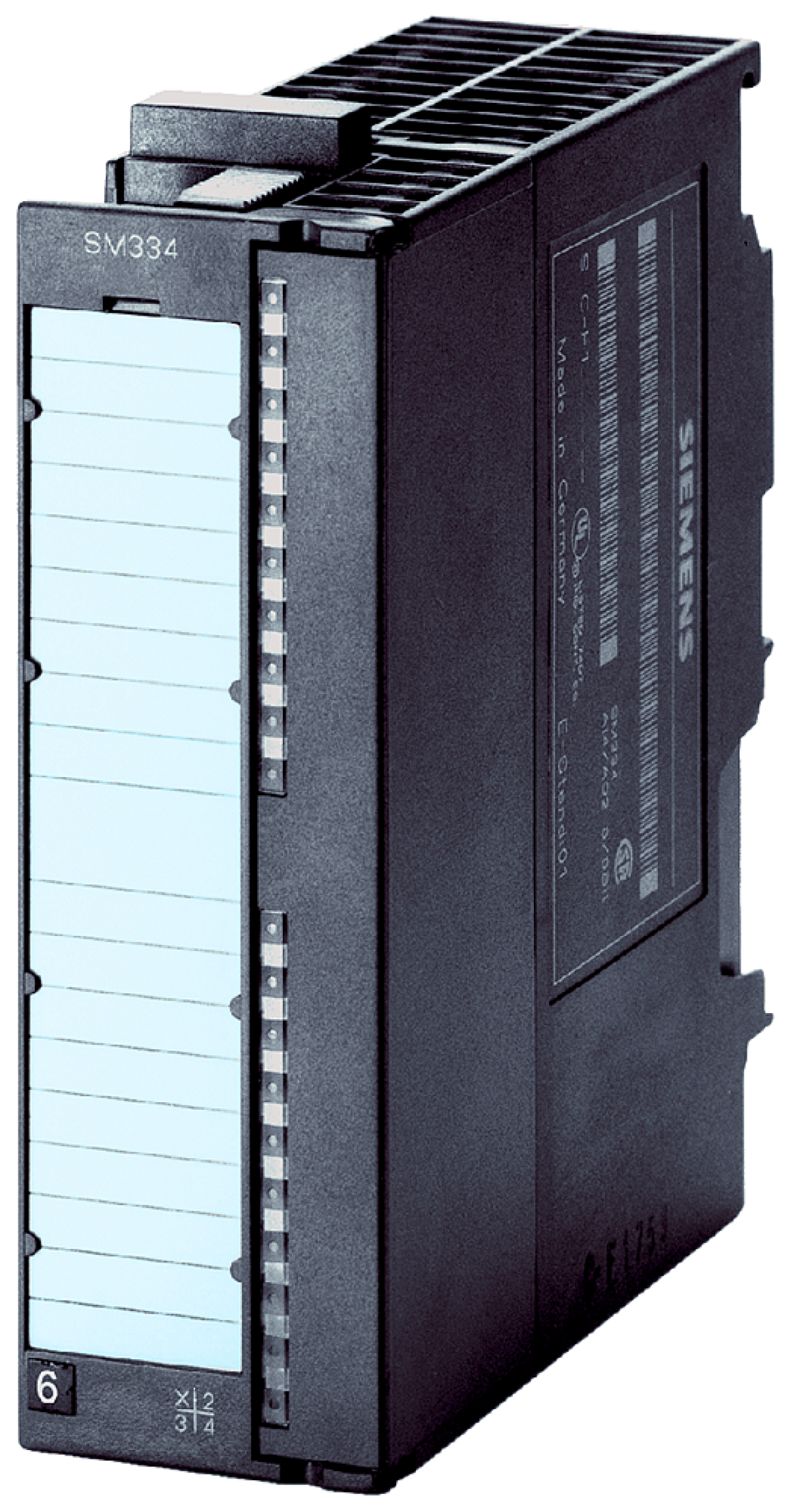

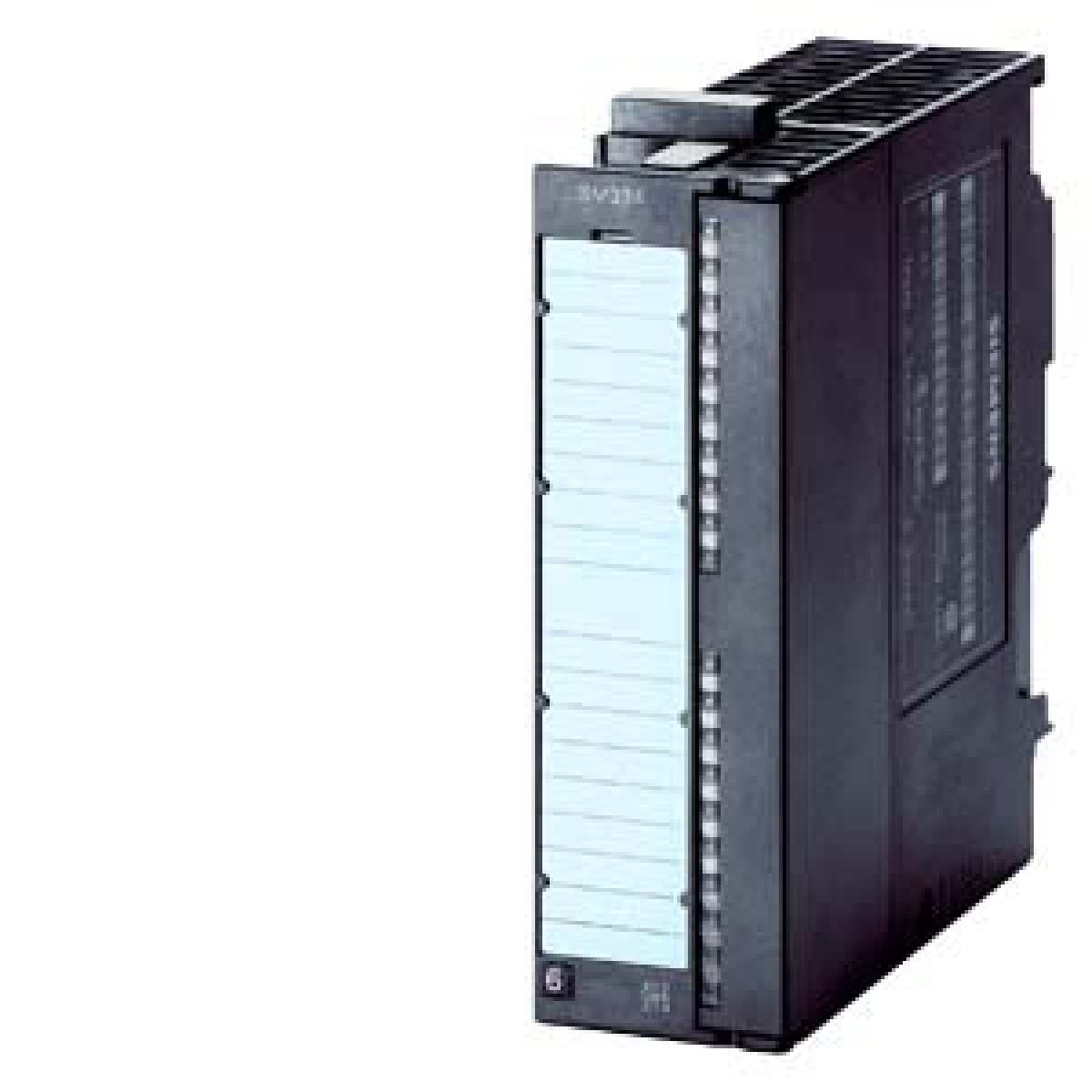

SIPLUS S7300 SM 334 AI 4AQ 2x12 bit 25 70 C with conformal coating

Manufacturer Ref: 6AG13340KE007AB0
Nortécnica Ref:
EAN: 4042948497135
Description

SIPLUS S7300 SM 334 AI 4AQ 2x12 bit 25 70 C with conformal coating

Technical Information
Attributes
Width
40
Height
125
Depth
117
Suitable for safety functions
No
Number of analogue inputs
4
Number of analogue outputs
2
Input, current
No
Input, voltage
Yes
Input, resistor
Yes
Input, resistance thermometer
Yes
Input, thermocouple
No
Input signal, configurable
Yes
Output, current
No
Output, voltage
Yes
Output signal configurable
Yes
Resolution of the analogue inputs
12
Resolution of the analogue outputs
12
Type of electric connection
Screwspring clamp connection
Explosion safety category for gas
ATEX gasexprotection Cat 3G
Explosion safety category for dust
None
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Performance level according to EN ISO 13849-1
-
Analogue inputs configurable
Yes
Analogue outputs configurable
Yes
SIL according to IEC 61508
-
Brands
Siemens AG
Technical Sheet
