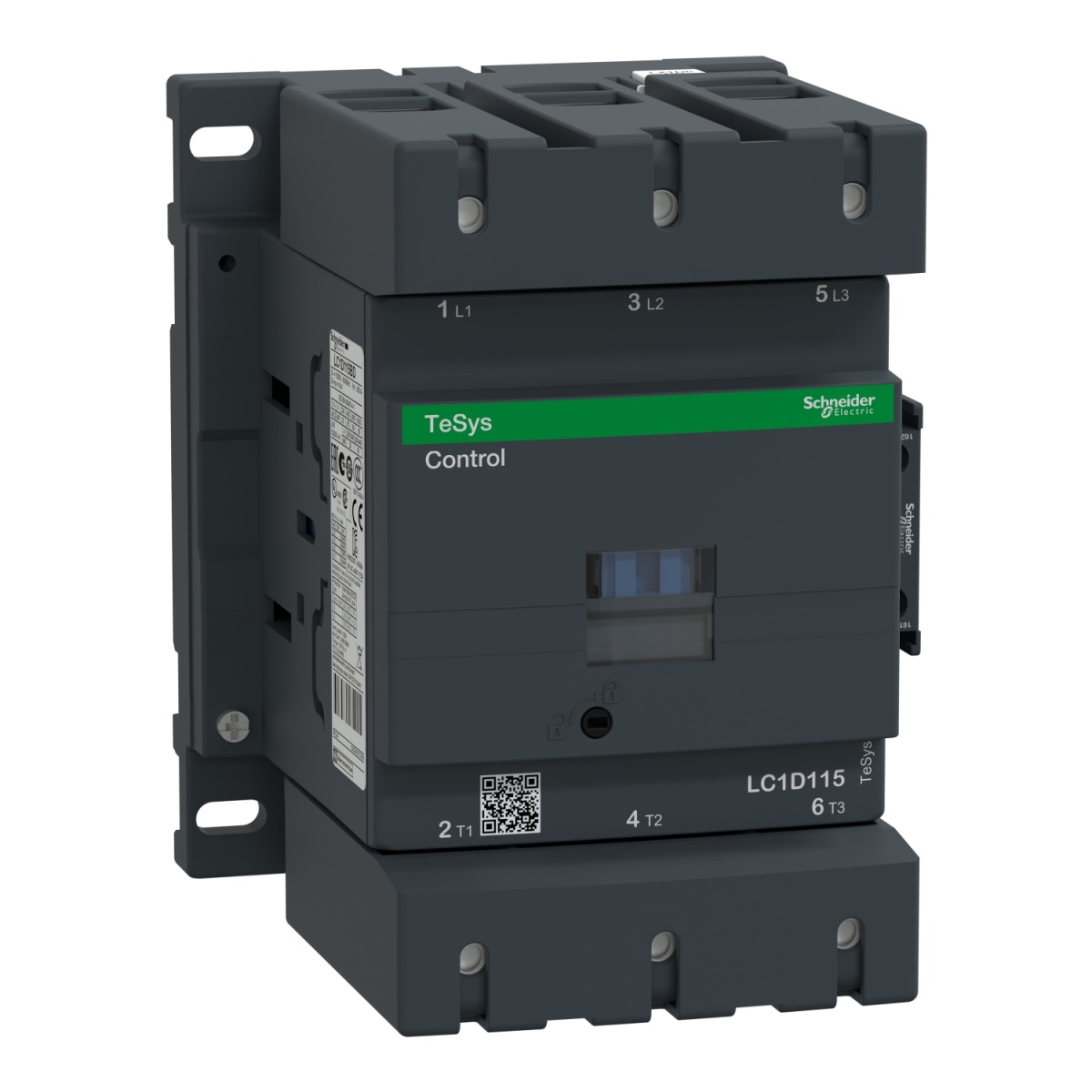

Contactor Tesys D - 3P3 NA - AC-3 - 440 V 115 A - 125 V CC standard bob
Contactors, Motor Circuit Breakers and Accessories
Contactor Tesys D - 3P3 NA - AC-3 - 440 V 115 A - 125 V CC standard bob
Manufacturer Ref:
LC1D115GD
Nortécnica Ref:
EAN:
3389110726718
Description
Technical Information
Attributes
Largura
120
Altura
158
Profundidade
136
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
55
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
115
Rated operation current Ie at AC-1, 400 V
200
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
125
125
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
-
-
Operating voltage AC 60 Hz
-
-
Voltage type for actuating
DC
Rated operation current Ie at AC-4, 400 V
38
Rated operation power at AC-4, 400 V
18.5
Rated operation power NEMA
-
Brands
Schneider
