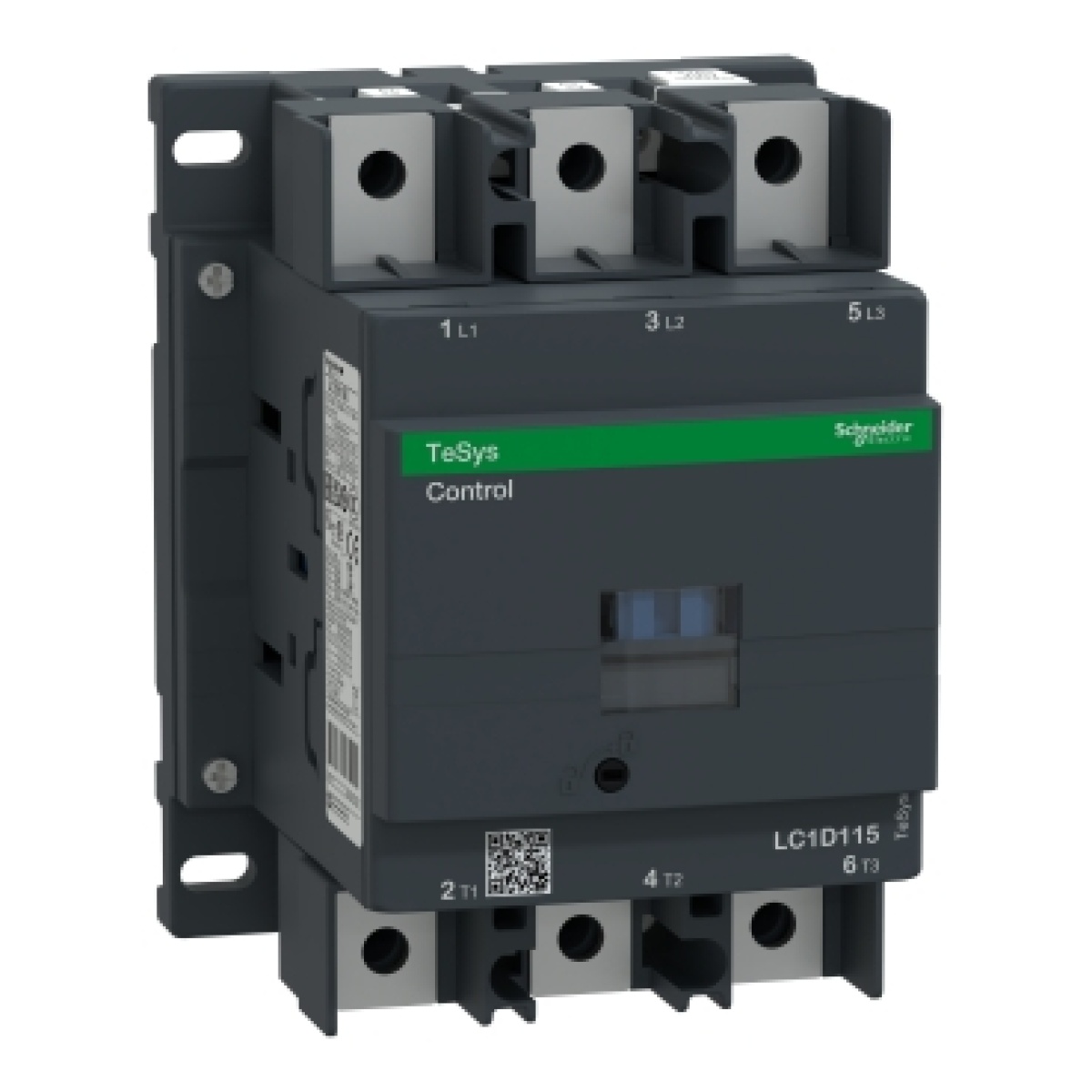

Contactor Tesys D - 3P3 NA - AC-3 - 440 V 115 A - 230 V CA 5060 Hz bob
Contactors, Motor Circuit Breakers and Accessories
Contactor Tesys D - 3P3 NA - AC-3 - 440 V 115 A - 230 V CA 5060 Hz bob
Manufacturer Ref:
LC1D1156P7
Nortécnica Ref:
EAN:
3389110381375
Description
Technical Information
Attributes
Largura
120
Altura
158
Profundidade
136
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
55
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
115
Rated operation current Ie at AC-1, 400 V
200
Rated control supply voltage AC 50 Hz
230
230
Rated control supply voltage AC 60 Hz
230
230
Rated control supply voltage DC
-
-
Type of electrical connection of main circuit
Other
Operating voltage AC 50 Hz
440
440
Operating voltage AC 60 Hz
440
440
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
38
Rated operation power at AC-4, 400 V
18.5
Rated operation power NEMA
-
Brands
Schneider
Technical Sheet
