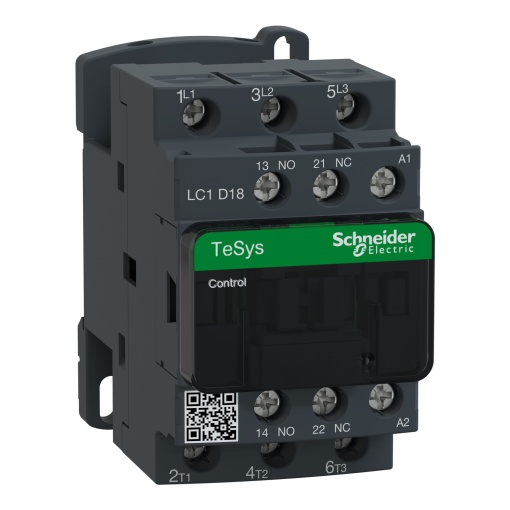

Contactor Tesys D - 3P3 NA - AC-3 - 440 V 18 A - 12 V CA bobina
Contactors, Motor Circuit Breakers and Accessories
Contactor Tesys D - 3P3 NA - AC-3 - 440 V 18 A - 12 V CA bobina
Manufacturer Ref:
LC1D18J7
Nortécnica Ref:
EAN:
3389110973730
Description
Technical Information
Attributes
Largura
45
Altura
77
Profundidade
86
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
7.5
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
18
Rated operation current Ie at AC-1, 400 V
32
Rated control supply voltage AC 50 Hz
12
12
Rated control supply voltage AC 60 Hz
12
12
Rated control supply voltage DC
-
-
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
440
440
Operating voltage AC 60 Hz
440
440
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
9
Rated operation power at AC-4, 400 V
4
Rated operation power NEMA
-
Brands
Schneider
Technical Sheet
