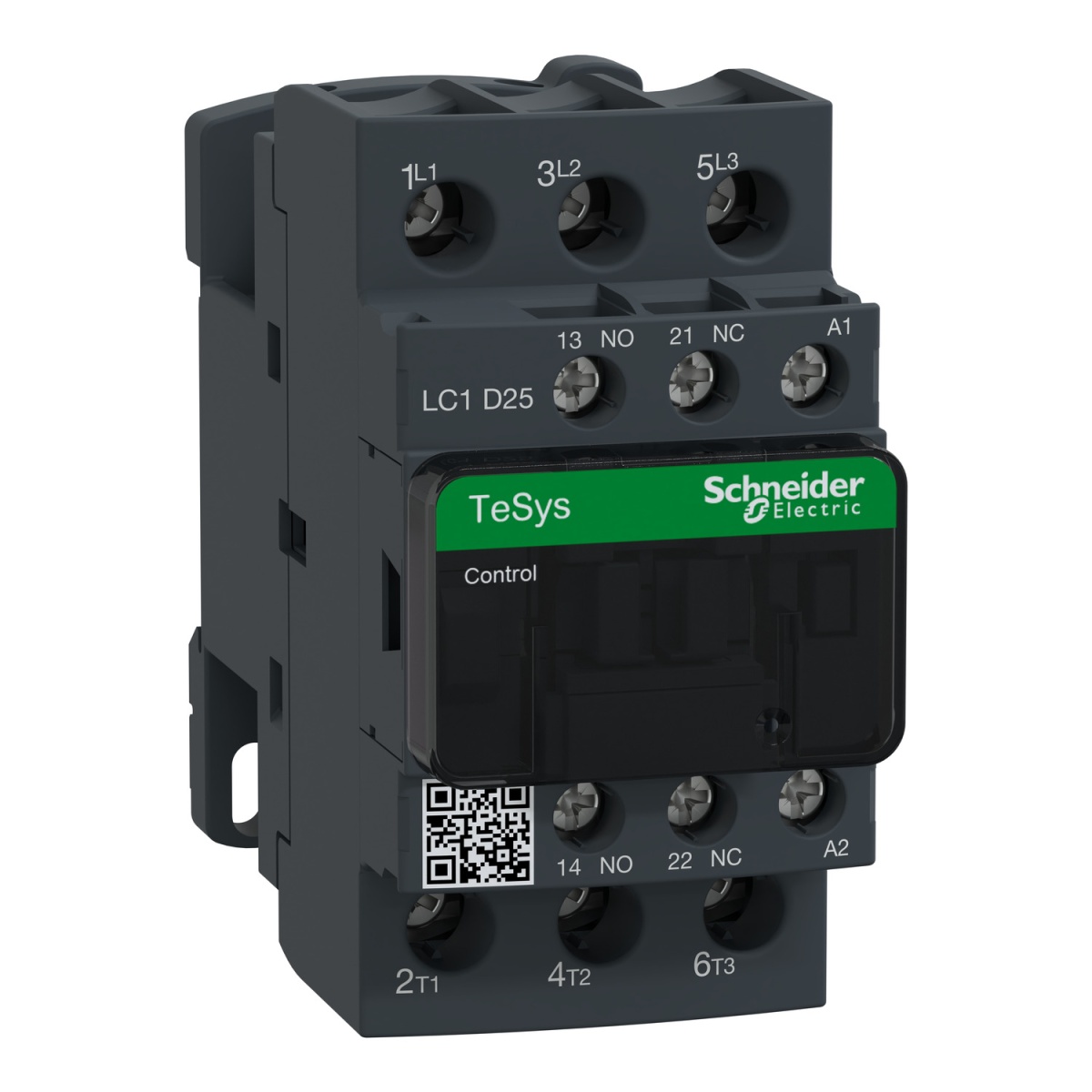

Contactor Tesys D - 3P3 NA - AC-3 - 440 V 25 A - 230 V CA bobina
Contactors, Motor Circuit Breakers and Accessories
Contactor Tesys D - 3P3 NA - AC-3 - 440 V 25 A - 230 V CA bobina
Manufacturer Ref:
LC1D25P7
Nortécnica Ref:
52LC1D25P7
EAN:
3389110349955
Description
Technical Information
Attributes
Width
45
Height
85
Depth
92
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
11
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
25
Rated operation current Ie at AC-1, 400 V
40
Rated control supply voltage AC 50 Hz
230
230
Rated control supply voltage AC 60 Hz
230
230
Rated control supply voltage DC
-
-
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
440
440
Operating voltage AC 60 Hz
440
440
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
12
Rated operation power at AC-4, 400 V
5.5
Rated operation power NEMA
-
Brands
Schneider
