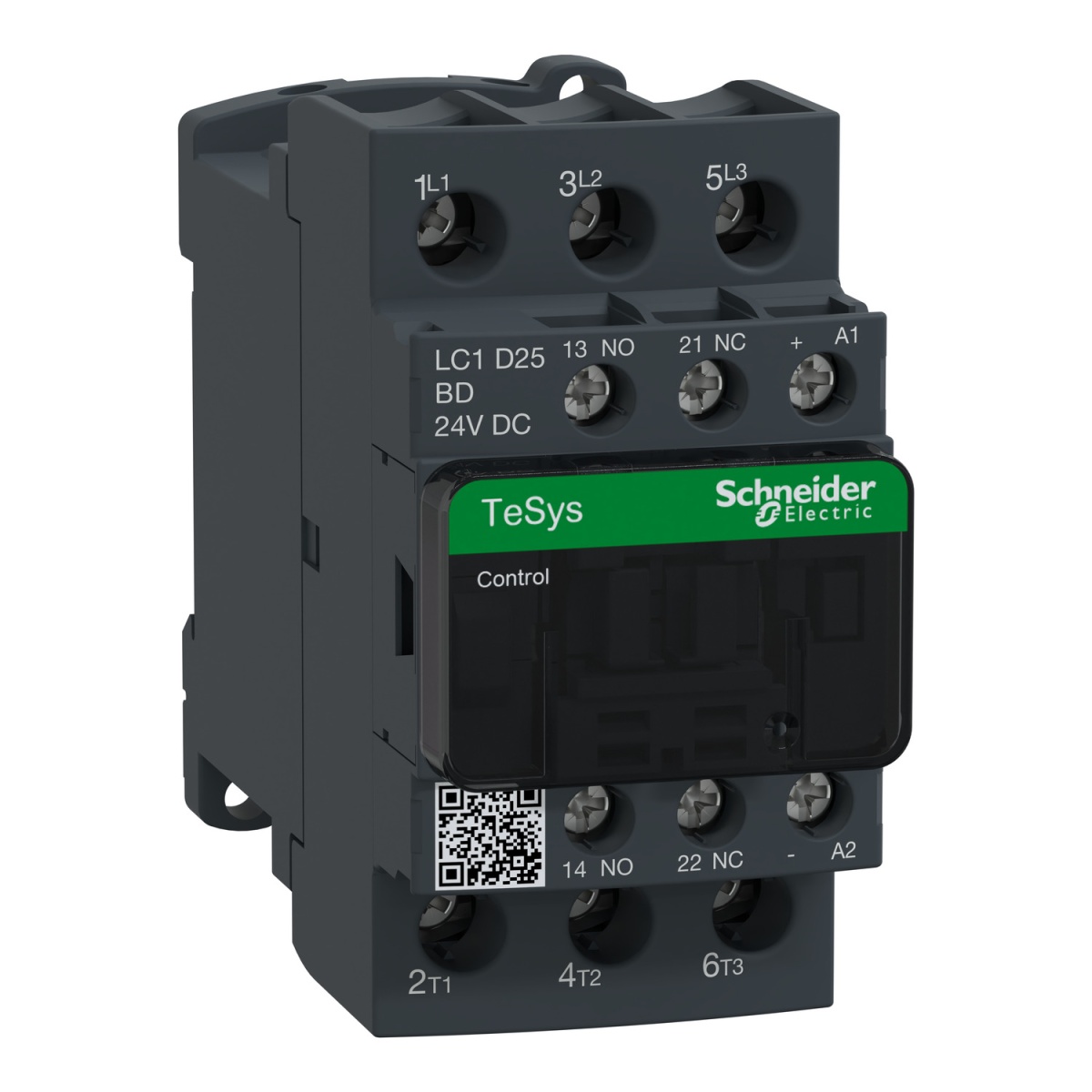

Contactor Tesys D - 3P3 NA - AC-3 - 440 V 25 A - 24 V CC bobina
Contactors, Motor Circuit Breakers and Accessories
Contactor Tesys D - 3P3 NA - AC-3 - 440 V 25 A - 24 V CC bobina
Manufacturer Ref:
LC1D25BD
Nortécnica Ref:
52LC1D25BD
EAN:
3389110355994
Description
Technical Information
Attributes
Width
45
Height
85
Depth
101
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
11
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
25
Rated operation current Ie at AC-1, 400 V
40
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
24
24
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
-
-
Operating voltage AC 60 Hz
-
-
Voltage type for actuating
DC
Rated operation current Ie at AC-4, 400 V
12
Rated operation power at AC-4, 400 V
5.5
Rated operation power NEMA
-
Brands
Schneider
Technical Sheet
