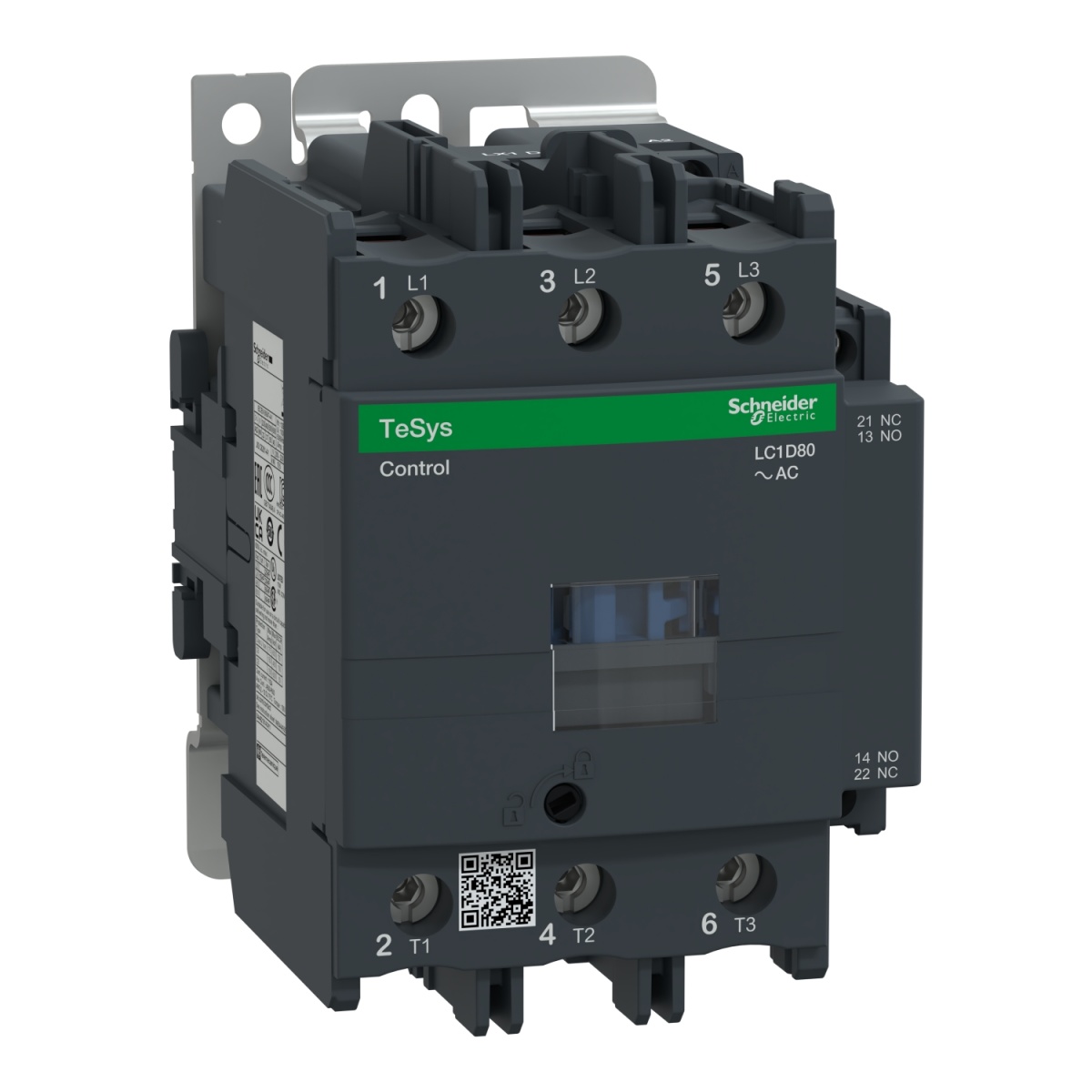

Contactor Tesys D - 3P3 NA - AC-3 - 440 V 80 A - 500 V CA 50 Hz bobina
Contactors, Motor Circuit Breakers and Accessories
Contactor Tesys D - 3P3 NA - AC-3 - 440 V 80 A - 500 V CA 50 Hz bobina
Manufacturer Ref:
LC1D80S5
Nortécnica Ref:
EAN:
3389110443011
Description
Technical Information
Attributes
Width
85
Height
127
Depth
130
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
37
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
80
Rated operation current Ie at AC-1, 400 V
125
Rated control supply voltage AC 50 Hz
500
500
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
-
-
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
440
440
Operating voltage AC 60 Hz
440
440
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
32
Rated operation power at AC-4, 400 V
15
Rated operation power NEMA
-
Brands
Schneider
Technical Sheet
