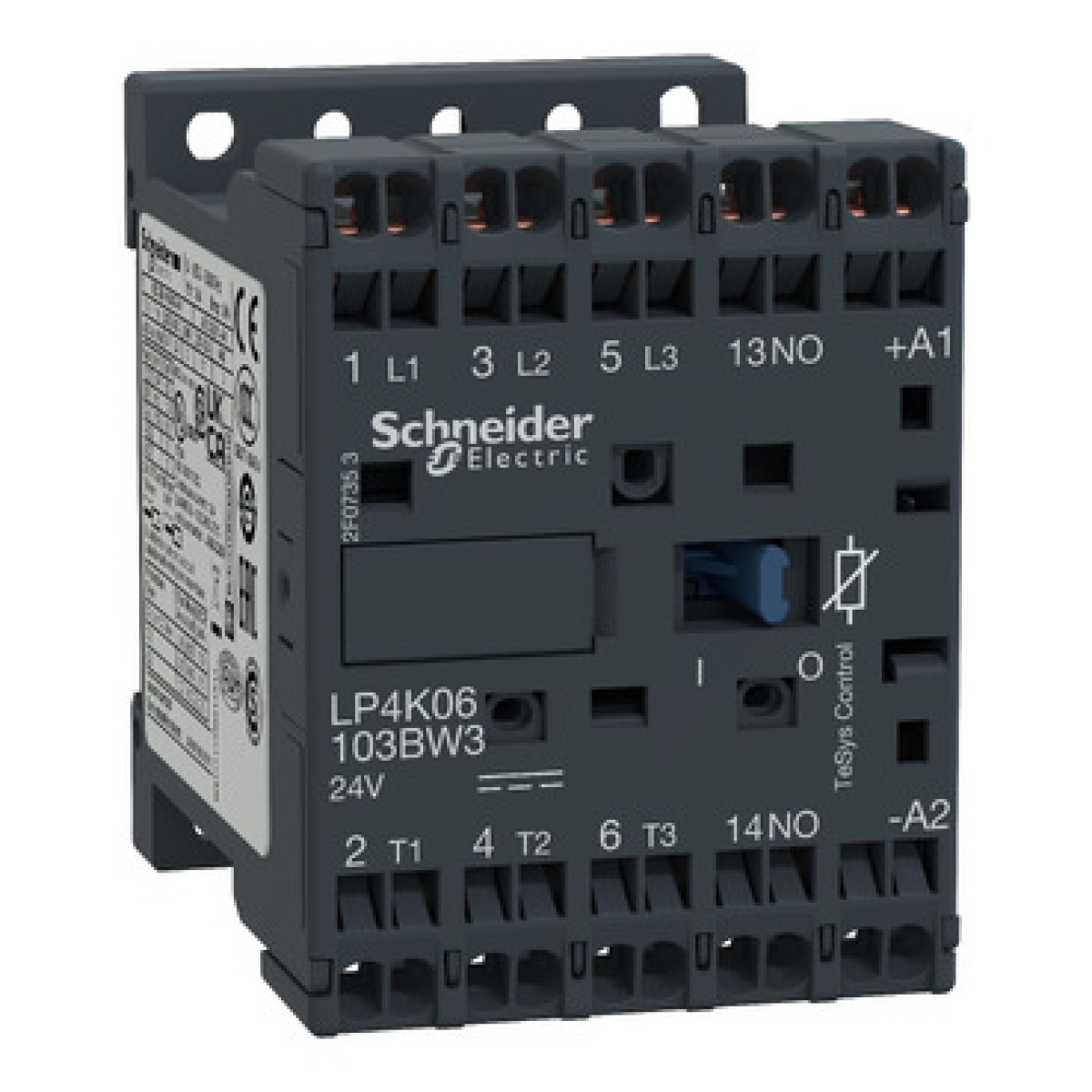

Contactor TeSys K - 3P3 NA - AC-3 - 440 V 9 A - 24 V bobina CC
Contactors, Motor Circuit Breakers and Accessories
Contactor TeSys K - 3P3 NA - AC-3 - 440 V 9 A - 24 V bobina CC
Manufacturer Ref:
LP4K09103BW3
Nortécnica Ref:
EAN:
3389110242409
Description
Technical Information
Attributes
Width
45
Height
58
Depth
57
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
4
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
9
Rated operation current Ie at AC-1, 400 V
20
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
24
24
Type of electrical connection of main circuit
Spring clamp connection
Operating voltage AC 50 Hz
-
-
Operating voltage AC 60 Hz
-
-
Voltage type for actuating
DC
Rated operation current Ie at AC-4, 400 V
6
Rated operation power at AC-4, 400 V
2.2
Rated operation power NEMA
-
Brands
Schneider
Technical Sheet
