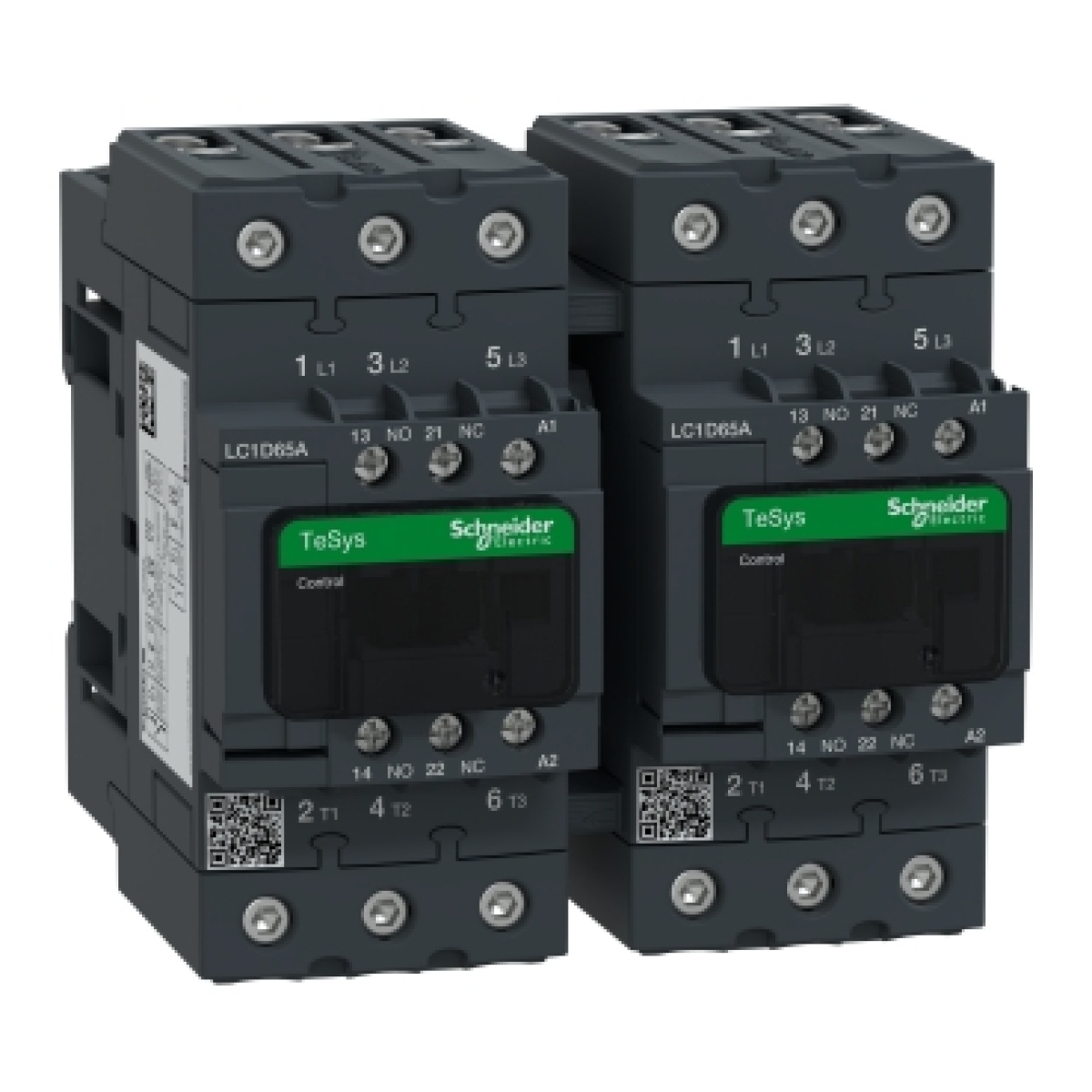

Inversor Tesys D - 3P3 NA - AC-3 - 440 V 65 A - 48 V CA bobina
Contactors, Motor Circuit Breakers and Accessories
Inversor Tesys D - 3P3 NA - AC-3 - 440 V 65 A - 48 V CA bobina
Manufacturer Ref:
LC2D65AE7
Nortécnica Ref:
EAN:
3389119409629
Description
Technical Information
Attributes
Width
119
Function
Reversing contactor
Height
122
Depth
120
Rated operation power at AC-3, 400 V
30
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
65
Rated operation current Ie at AC-1, 400 V
80
Number of auxiliary contacts as change-over contact
-
Suitable for rail mounting
Yes
Rated control supply voltage AC 50 Hz
48
48
Rated control supply voltage AC 60 Hz
48
48
Rated control supply voltage DC
-
-
Voltage type operating voltage
AC
Degree of protection IP
IP20
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Operating voltage AC 50 Hz
440
440
Operating voltage AC 60 Hz
440
440
Operating voltage DC
-
-
Voltage type for actuating
AC
Degree of protection NEMA
Other
Rated operation power NEMA
29.8
Brands
Schneider
