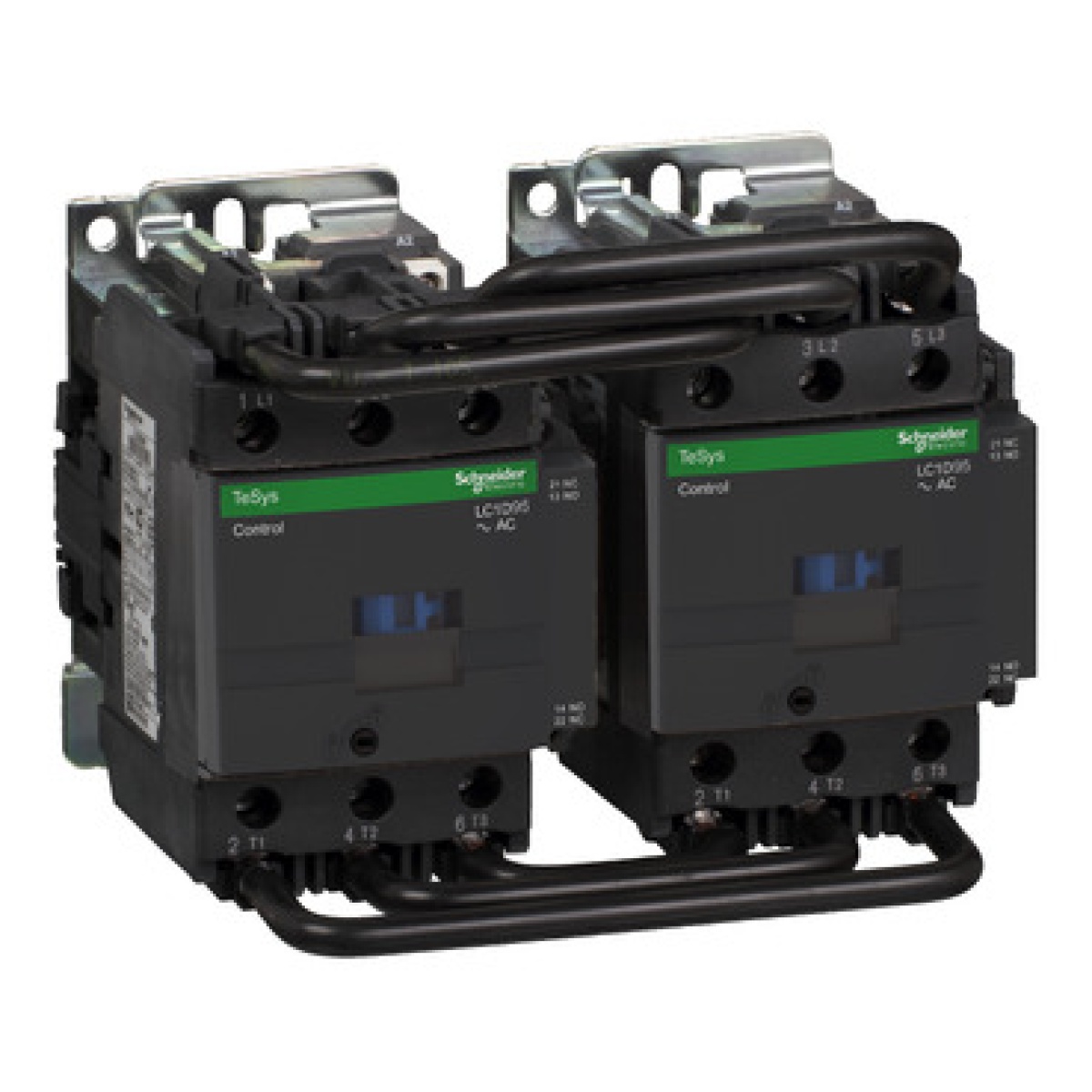

Inversor Tesys D - 3P3 NA - AC-3 - 440 V 95 A - 48 V CA bobina
Contactors, Motor Circuit Breakers and Accessories
Inversor Tesys D - 3P3 NA - AC-3 - 440 V 95 A - 48 V CA bobina
Manufacturer Ref:
LC2D95E7
Nortécnica Ref:
EAN:
3389110458213
Description
Technical Information
Attributes
Width
182
Function
Reversing contactor
Height
127
Depth
158
Rated operation power at AC-3, 400 V
45
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as normally closed contact
2
Rated operation current Ie at AC-3, 400 V
95
Rated operation current Ie at AC-1, 400 V
-
Number of auxiliary contacts as change-over contact
-
Suitable for rail mounting
No
Rated control supply voltage AC 50 Hz
48
48
Rated control supply voltage AC 60 Hz
48
48
Rated control supply voltage DC
-
-
Voltage type operating voltage
AC
Degree of protection IP
IP20
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Operating voltage AC 50 Hz
440
440
Operating voltage AC 60 Hz
440
440
Operating voltage DC
-
-
Voltage type for actuating
AC
Degree of protection NEMA
Other
Rated operation power NEMA
44.8
Brands
Schneider
